LINK-MI LM-WHS400 User Manual

400M Wireless 3G SDI/HDMI Extender User Manual
This is a Wireless HD HDMI/SDI transmission products that use the highest level of wireless communication technology
to enable transmit lossless, uncompressed, no-delay 3G SDI or full HD HDMI signal .This product includes a transmitter
and a receiver, and is equipped with 3G/HD SDI interface and full HD HDMI interface. The transmitter has two antennas
and the Receiver has five antennas.The antennas' operate frequency is 5.1GHz~5.9GHz, and these frequency is changeable
through the software configuration to adopt the wireless regulatory requirements in the world.

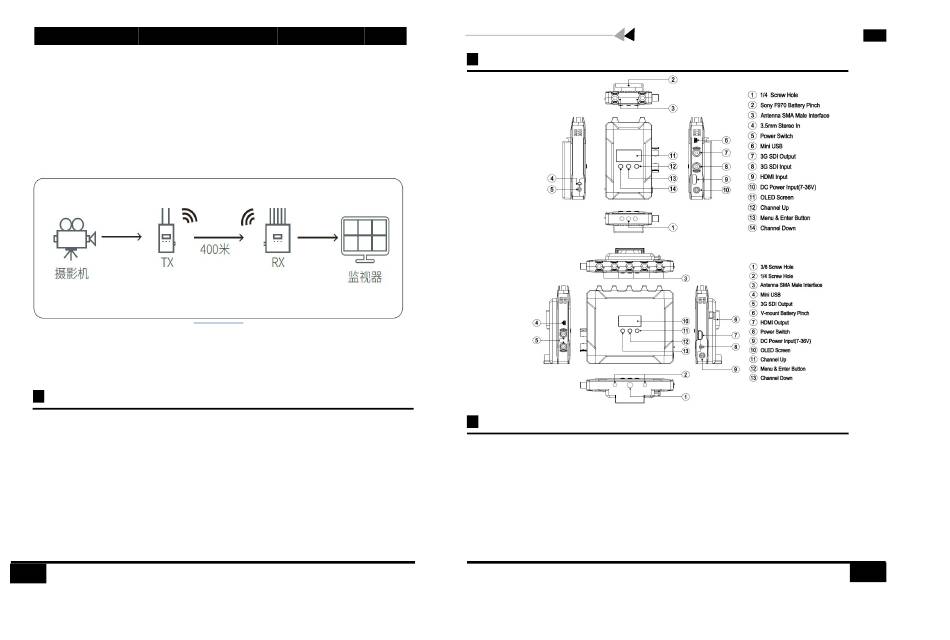

Application
Camera Transmitter
400 m
Features
● HDMI 1.3 compliant
● Support SMPTE 425M , SMPTE 424M, SMPTE 292M Standard
● Support HDMI and 3G-SDI inputs and outputs
● Support point to point, and point-to-multiple network topology
● Support resolutions up to 1080P@60Hz, zero delay and no compression
● Support 5GHz ISM frequency band, maximum 10 frequency channels selected by buttons with OLED display
● Maximum transmission range is 1300ft(400 meters)
● Support display DC power status, video status and receiver RSSI by OLED
● Support Wide range power supply,range from 7V to 36V
● Support Optional Sony F970,V-mount and G-mount, battery buckle, convenient for field battery install and replacement
● Support ±8 KV ESD protection level (HBM, Contact discharge)
● Industrial case, stable, reliable and convenient
1
Receiver Monitor
Panel Diagram
Transmitter
Receiver
Installation
Please check below devices and accessories before installation,if there are missing ,please contact your distributor.
Transmitter
●
Receiver
●
2 Pin LEMO to D-Tap Cable
●
5GHz Antennas
●
Magic Arm
●
User manual
●
400M Wireless 3G SDI/HDMIExtender User Manual
1PCS
1PCS
2PCS
8PCS
1PCS
1PCS
2
