Cypress CY4607 HX2VL Quick Start Manual

1

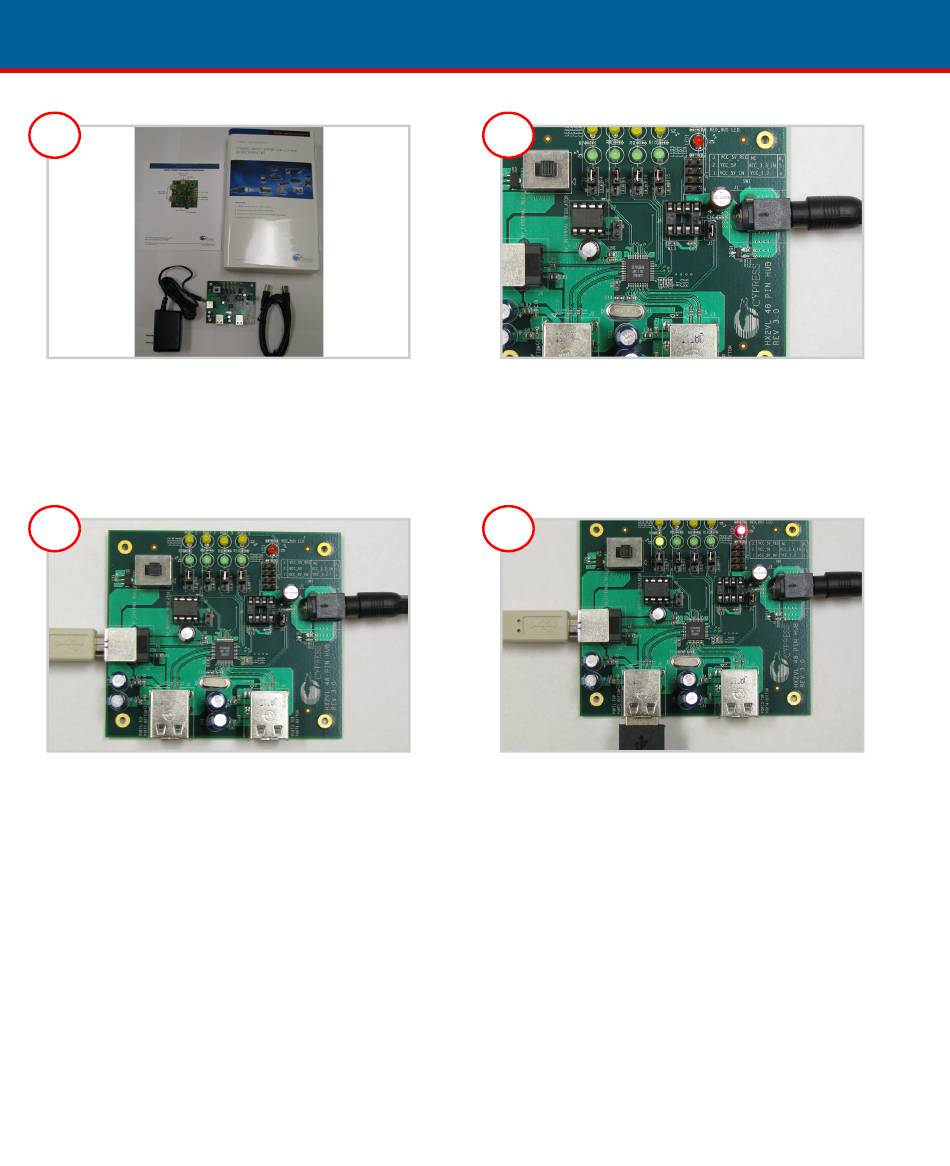

Remove the CY4607 HX2VL Development
Kit from the package and review its
contents.
3
To connect to the PC, plug the USB A to B
cable into the hub's upstream connector.
Plug the other end of the cable into one of
the PC's host controller ports.
The hub is now ready for any low speed, full
speed, or high speed devices to be plugged
into the ports. The four ports on the hub are
labeled Port 1, Port 2, Port 3, and Port 4.
CY4607 HX2VL DEVELOPMENT KIT
QUICK START GUIDE
2
Plug the wall mounted power supply into an
AC power receptacle providing power in the
range 100 V to 240 V, 50 Hz or 60 Hz.
Connect the power supply plug to the hub's
'DC Supply' jack.
4
Connect a USB device to any of the four
downstream ports. Use jumpers J7 to J10 in
position 2-3 to enable the corresponding port
status LEDs. The red LED glowing indicates
that the hub is not in Suspend mode. The
green LED glowing indicates that the
respective downstream port is enabled.
The amber LED glowing indicates that the
port has an exception condition. The HX2VL
turns off the corresponding port power and
sets the amber LED until the condition is
cleared.
