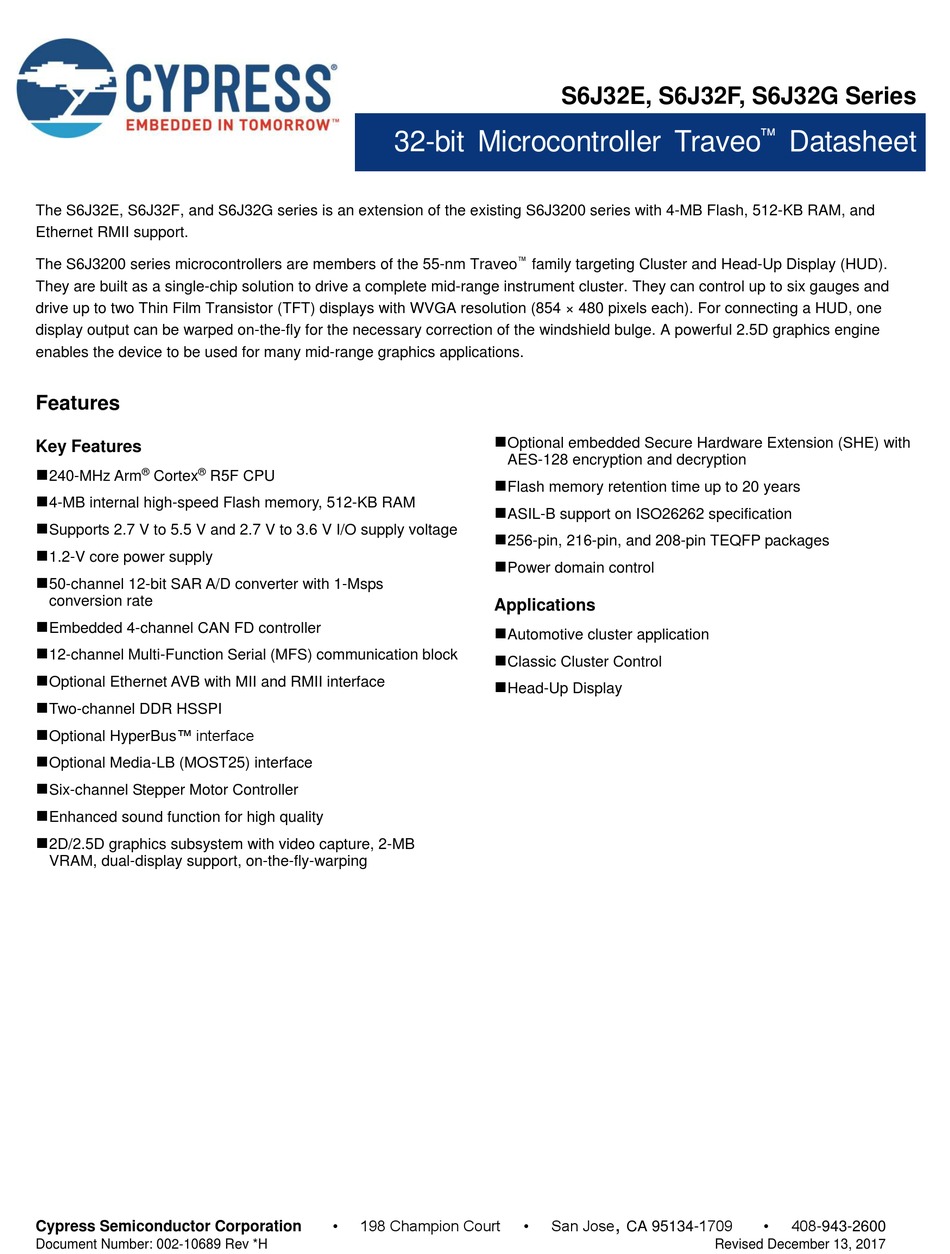

The S6J32E, S6J32F, and S6J32G series is an extension of the existing S6J3200 series with 4-MB Flash, 512-KB RAM, and
Ethernet RMII support.
The S6J3200 series microcontrollers are members of the 55-nm Traveo
They are built as a single-chip solution to drive a complete mid-range instrument cluster. They can control up to six gauges and
drive up to two Thin Film Transistor (TFT) displays with WVGA resolution (854 × 480 pixels each). For connecting a HUD, one
display output can be warped on-the-fly for the necessary correction of the windshield bulge. A powerful 2.5D graphics engine
enables the device to be used for many mid-range graphics applications.
Features
Key Features
®
®
240-MHz Arm
Cortex
R5F CPU
4-MB internal high-speed Flash memory, 512-KB RAM
Supports 2.7 V to 5.5 V and 2.7 V to 3.6 V I/O supply voltage
1.2-V core power supply
50-channel 12-bit SAR A/D converter with 1-Msps
conversion rate
Embedded 4-channel CAN FD controller
12-channel Multi-Function Serial (MFS) communication block
Optional Ethernet AVB with MII and RMII interface
Two-channel DDR HSSPI
Optional HyperBus™ interface
Optional Media-LB (MOST25) interface
Six-channel Stepper Motor Controller
Enhanced sound function for high quality
2D/2.5D graphics subsystem with video capture, 2-MB
VRAM, dual-display support, on-the-fly-warping
Cypress Semiconductor Corporation
Document Number: 002-10689 Rev *H
32-bit Microcontroller Traveo
Optional embedded Secure Hardware Extension (SHE) with
AES-128 encryption and decryption
Flash memory retention time up to 20 years
ASIL-B support on ISO26262 specification
256-pin, 216-pin, and 208-pin TEQFP packages
Power domain control
Applications
Automotive cluster application
Classic Cluster Control
Head-Up Display
•
198 Champion Court
S6J32E, S6J32F, S6J32G Series
™
family targeting Cluster and Head-Up Display (HUD).
,
•
San Jose
CA 95134-1709
Datasheet
•
408-943-2600
Revised December 13, 2017
