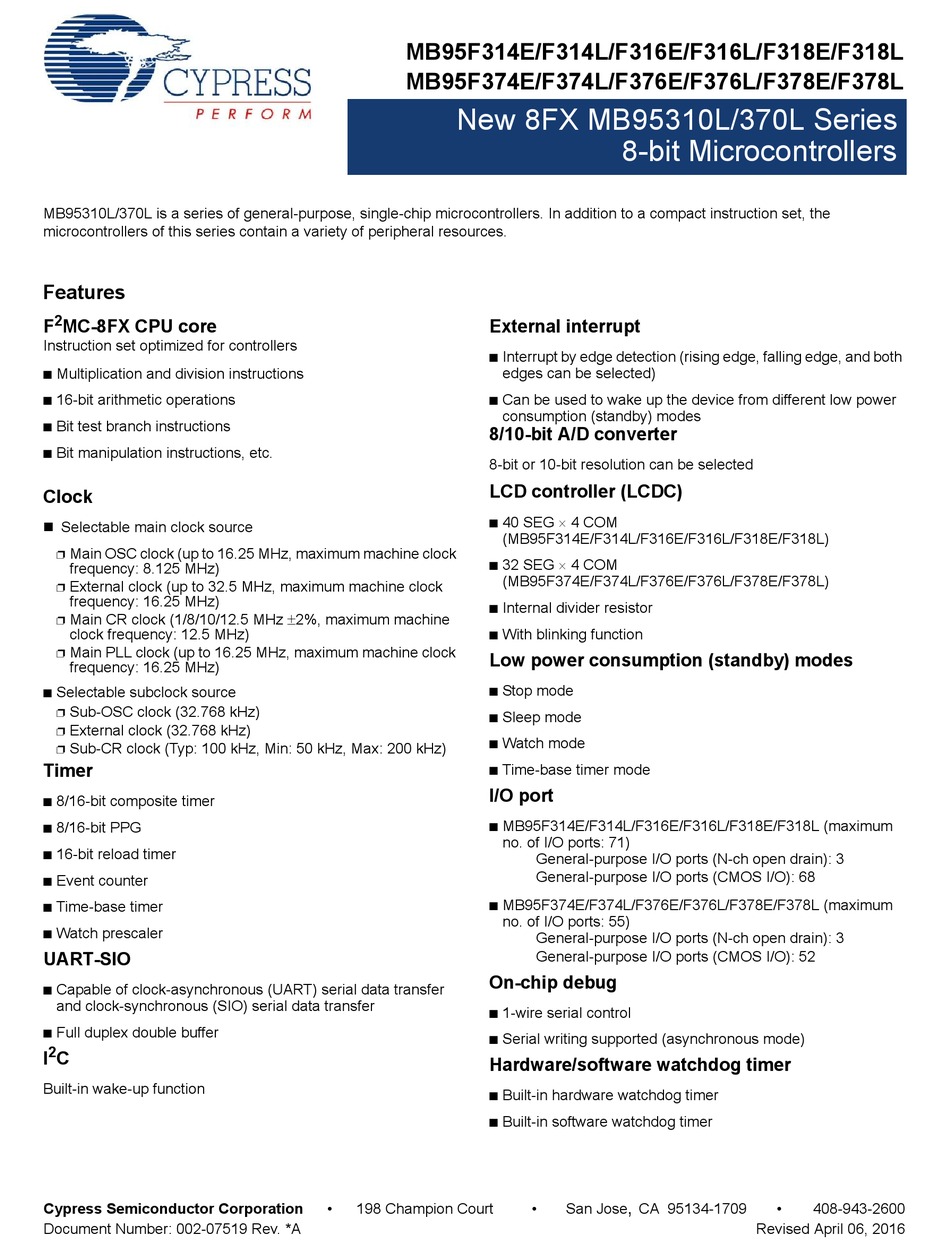

MB95310L/370L is a series of general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the
microcontrollers of this series contain a variety of peripheral resources.
Features
2
F
MC-8FX CPU core
Instruction set optimized for controllers
Multiplication and division instructions
16-bit arithmetic operations
Bit test branch instructions
Bit manipulation instructions, etc.
Clock
 Selectable main clock source
Main OSC clock (up to 16.25 MHz, maximum machine clock
frequency: 8.125 MHz)
External clock (up to 32.5 MHz, maximum machine clock
frequency: 16.25 MHz)
Main CR clock (1/8/10/12.5 MHz 2%, maximum machine
clock frequency: 12.5 MHz)
Main PLL clock (up to 16.25 MHz, maximum machine clock
frequency: 16.25 MHz)
Selectable subclock source
Sub-OSC clock (32.768 kHz)
External clock (32.768 kHz)
Sub-CR clock (Typ: 100 kHz, Min: 50 kHz, Max: 200 kHz)
Timer
8/16-bit composite timer
8/16-bit PPG
16-bit reload timer
Event counter
Time-base timer
Watch prescaler
UART-SIO
Capable of clock-asynchronous (UART) serial data transfer
and clock-synchronous (SIO) serial data transfer
Full duplex double buffer
2
I
C
Built-in wake-up function
Cypress Semiconductor Corporation
Document Number: 002-07519 Rev. *A
MB95F314E/F314L/F316E/F316L/F318E/F318L
MB95F374E/F374L/F376E/F376L/F378E/F378L
New 8FX MB95310L/370L Series
External interrupt
Interrupt by edge detection (rising edge, falling edge, and both
edges can be selected)
Can be used to wake up the device from different low power
consumption (standby) modes
8/10-bit A/D converter
8-bit or 10-bit resolution can be selected
LCD controller (LCDC)
40 SEG  4 COM
(MB95F314E/F314L/F316E/F316L/F318E/F318L)
32 SEG  4 COM
(MB95F374E/F374L/F376E/F376L/F378E/F378L)
Internal divider resistor
With blinking function
Low power consumption (standby) modes
Stop mode
Sleep mode
Watch mode
Time-base timer mode
I/O port
MB95F314E/F314L/F316E/F316L/F318E/F318L (maximum
no. of I/O ports: 71)
MB95F374E/F374L/F376E/F376L/F378E/F378L (maximum
no. of I/O ports: 55)
On-chip debug
1-wire serial control
Serial writing supported (asynchronous mode)
Hardware/software watchdog timer
Built-in hardware watchdog timer
Built-in software watchdog timer
198 Champion Court
8-bit Microcontrollers
General-purpose I/O ports (N-ch open drain): 3
General-purpose I/O ports (CMOS I/O): 68
General-purpose I/O ports (N-ch open drain): 3
General-purpose I/O ports (CMOS I/O): 52
,
San Jose
CA 95134-1709
408-943-2600
Revised April 06, 2016
