Cree 228 Series Installation Instructions

CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock, turn off power supply before installation or servicing.
2. This luminaire must be installed in accordance with the NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified electrician.
3. Luminaires that are UL Listed for Wet LocationS are intended for typical outdoor use, including rain and snow.
These luminaires are not intended to be submerged or subjected to standing water for long periods of time.
4. This luminaire is not thermally protected and is intended for installation in an outdoor canopy or marquee.
5. Damage to fixture will result when improper voltage is applied. Verify fixture is suitable for supply voltage by
checking electrical label on fixture.
NOTE: Some products may require marked spacings for installation, refer to luminaire label for specific spacing
requirements.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

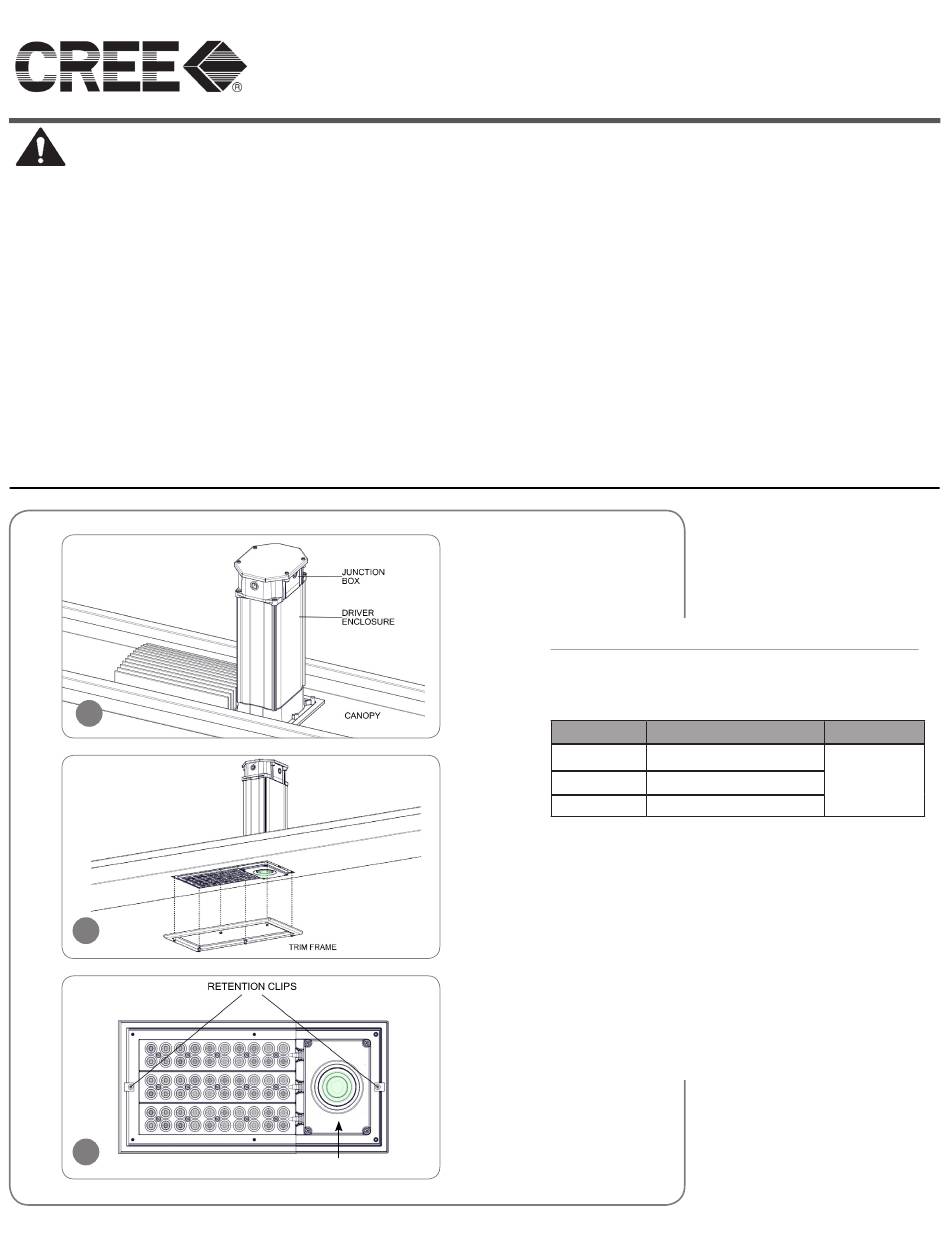

TO INSTALL:
F1
F2
F3
Page 1 of 2
SENSOR DOOR
LED RECESSED CANOPY LUMINAIRE
INSTALLATION INSTRUCTIONS
LUMINAIRE INSTALLATION
STEP 1:
Cut an appropriate sized hole in the canopy based on the
following table.
LED COUNT CUTOUT DIMENSION
30 LED 7 - 3/8" BY 11 - 3/8"
60 LED 7 - 3/8" BY 16 - 1/8"
90 LED 7 - 3/8" BY 20 - 15/16"
STEP 2:
Insert luminaire through opening and place on canopy
channel as shown in Figure 1
STEP 3:
Position luminaire in opening and secure in place with
(2) retention clips by rotating clips over canopy and
tightening screws. See Figure 2.
STEP 4:
Wire luminaire per "Electrical Connections"
STEP 5:
On the bottom side of the canopy, install the trim frame
over the luminaire and secure using the retained screws.
Frame must be in contact with canopy around entire
perimeter. See Figure 3.
228 SERIES
Includes: XCTA SERIES
TOLERANCE
+ 1/16"
- 1/32"
section.
CI372X01R1
