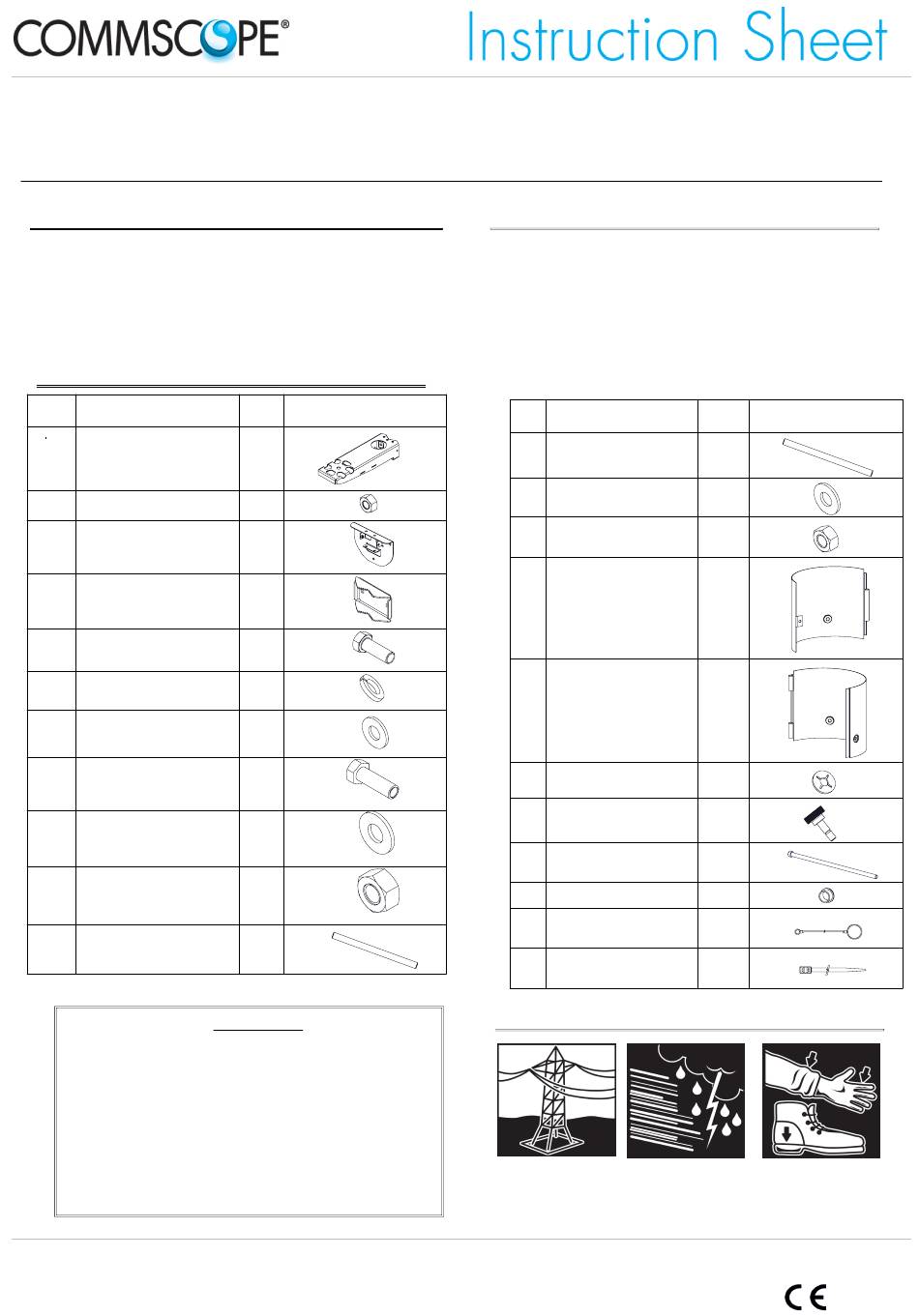

CommScope MC-MNT-3XV-SIDE Instruction Sheet

629383 Revision B,
Mounting Kit For Metro Cell Antennas
MC-MNT-3XV-SIDE Mounting Kits

GENERAL INFORMATION

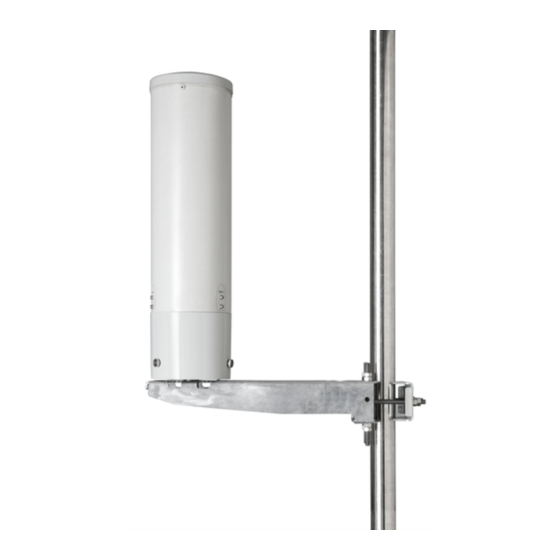

• Offset of pole mounting option
Fits round members 1.9" to 3.8" (50 to 97 mm) pole
diameter.
• Wall mounting option

PARTS LIST

Item Description
1 Side Mount Bracket
2 M6 Hex Nut
3 Wall Mount Adapter
4 Pipe Clamp Bracket
5 M10 X 30 Hex Head Screw
6 M10 Lock Washer
7 M10 Flat Washer
8 M24 X 75 Hex Head Screw
9 M24 Flat Washer
10 M24 Hex Nut
11 M12 X 180 Threaded Stud
The installation, maintenance, or removal of an antenna
requires qualified, experienced personnel. CommScope
installation instructions are written for such installation
personnel. Antenna systems should be inspected once a
year by qualified personnel to verify proper installation,
maintenance, and condition of equipment.
CommScope disclaims any liability or responsibility for the
results of improper or unsafe installation practices.
It is recommended that transmit power be turned off
when the field installation is performed. Follow all
applicable safety precautions as shown on this page.
www.commscope.com
© 2016 CommScope, Inc. All rights reserved.
Visit our website at www.commscope.com or contact your local CommScope representative or BusinessPartner for more information.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. 629383 B (05/16)
May 2016
Qty Image
1
2
1
1
2
2
2
1
3
2
2
SAFETY NOTICE
PRE-INSTALLATION INSTRUCTIONS
• Examine antenna and hardware to ensure that all
parts are enclosed and that there is no physical
damage.
• Verify that the frequency range shown on the label
on the bottom of the antenna matches the frequency
range of the station equipment.
Item Description
12 M12 X 245 Threaded Stud
13 M12 Flat Washer
14 M12 Hex Nut
15 Base Cover
16 Base Cover
17 Retention Washer
18 Thumb Screw
19 Base Cover Shaft
20 Shoulder Washer
21 Lanyard
22 Cable Tie
Do not install near power lines.
Do not install on a wet or windy
Power lines, telephone lines, day or when lightning or thunder
and guy wires look the same.
is in the area. Do not use metal
Assume any wire or line can
ladder.
electrocute you.
Qty Image
2
8
16
1
1
3
3
1
6
1
1
Wear shoes with rubber soles and
heels. Wear protective clothing
including a long-sleeved shirt and
rubber gloves.
Page 1 of 6
