Modular Closets Vista Short Tower Assembly And Installation Instructions Manual page 5

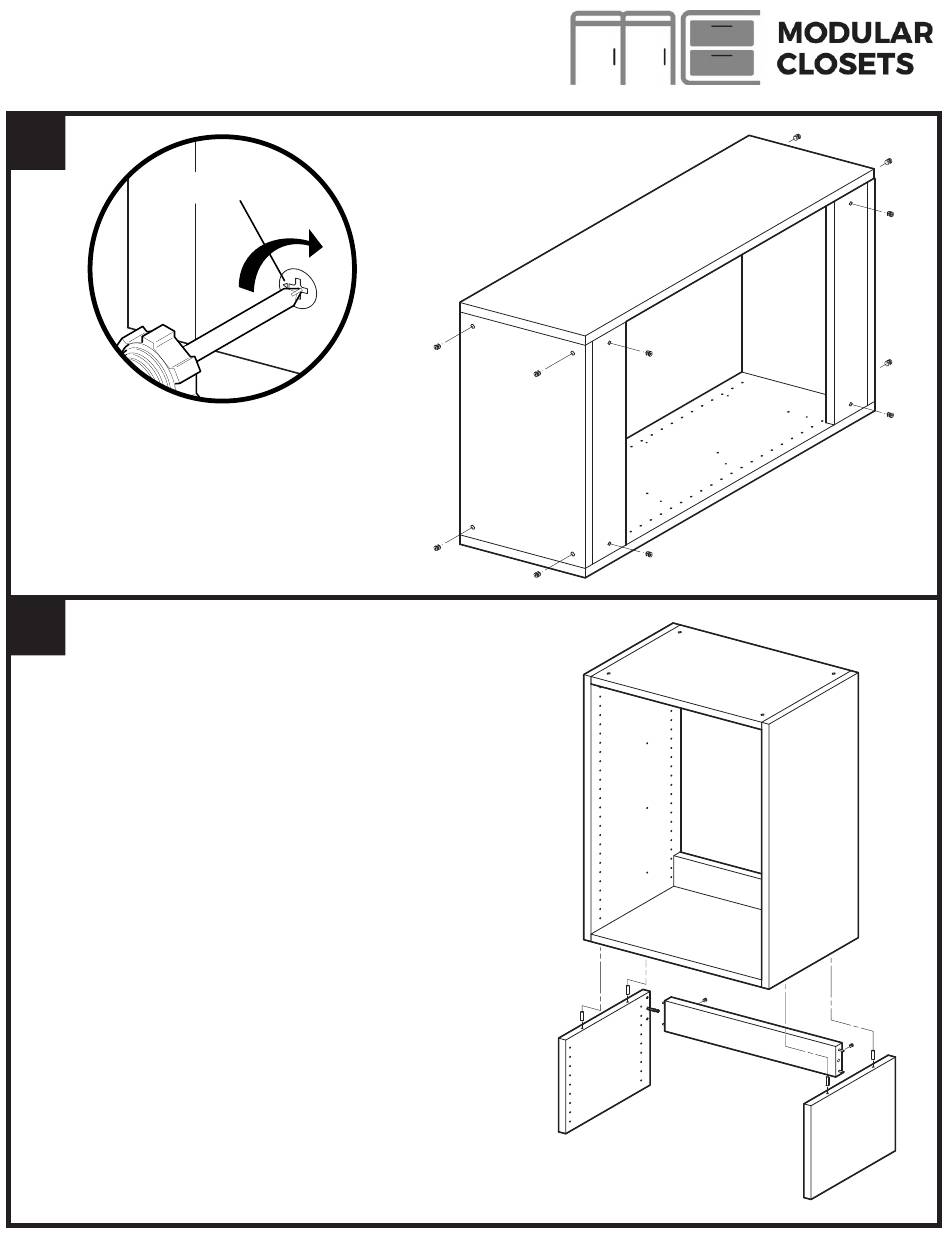

ASSEMBLY AND
INSTALLATION INSTRUCTIONS
CUBBY TOWER
5
ARROW TOWARD
CAM POST OPENING
5.1
Insert Camlocks (H) in holes in Set
Shelves (D) and Rear Hanging Cleats
(E), with arrow pointing toward Cam
Post opening. Be sure Camlocks engage
Cam Posts, and are fully seated in Shelves
and Cleats.
5.2
Tighten Camlocks (H) clockwise to lock.
6
FOR LEG EXTENSION KIT INSTALLATIONS ONLY
Leg Extension Kit purchased separately)
6.1
Insert four Wood Dowels (K) into holes in edges of Left Leg
Extension (F) and Right Leg Extension (G).
6.2
Install one Cam Post (H) each into Left Leg Extension (F)
and Right Leg Extension (G). Tighten until Cam Posts are
seated against Leg Extensions.
6.3
Assemble Left Leg Extension (F) and Right Leg Extension
(G) onto Rear Hanging Cleat (C) by sliding the Cam Posts (H)
into Cleat. BE SURE Wood Dowels (K) in Cleat engage drilled
holes in Leg Extensions, and all parts are pressed flush against
each other.
6.4
Insert Camlocks (I) in holes in Rear Hanging Cleat (C),
with arrow pointing toward Cam Post opening. BE SURE
Camlocks engage Cam Posts, and are fully seated in Cleat.
Tighten Camlocks (I) clockwise to lock.
6.5
Align Wood Dowels (K) in assembled Leg Extensions with
holes in Shelf Tower, and press Tower and Leg Extensions
together.
H
D
H
K
F
C
D
H
C
H
I
H
C
G
H
H
K
