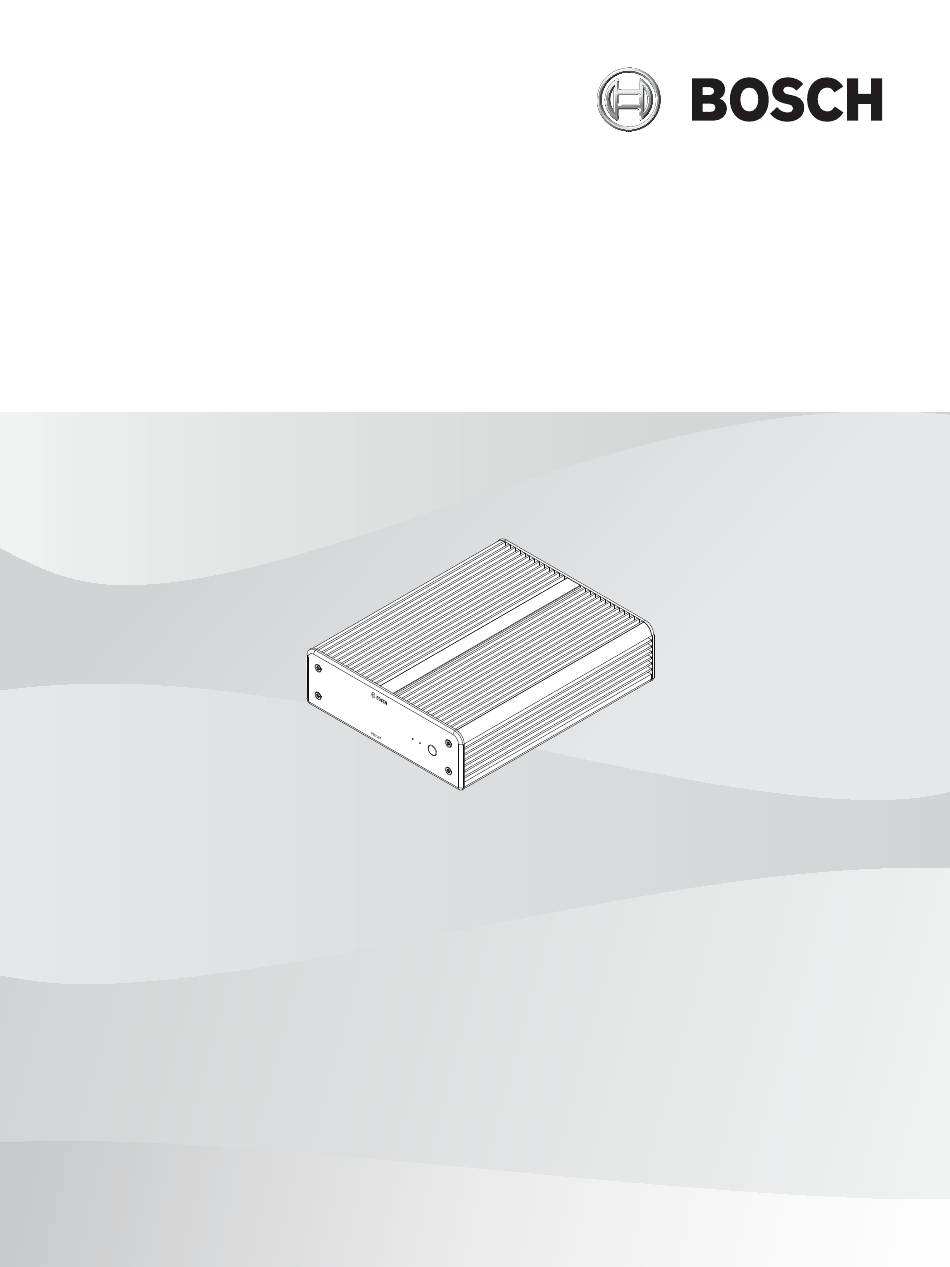

- Page 1 VIDEOJET decoder 7000 VJD‑7513 Installation manual...
-
Page 3: Table Of Contents
VIDEOJET decoder 7000 Table of contents | en Table of contents Safety Electric shock hazard Installation and operation Maintenance and repair Short information About this manual Conventions in this manual Intended use EU Directives Rating plate System overview Parts included... -
Page 4: Safety
– If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. Safe operation is no longer possible if one or more of the following cases occur: –... -
Page 5: Short Information
VIDEOJET decoder 7000 Short information | en Short information About this manual This manual is intended for persons responsible for the installation and operation of a decoder unit. International, national and any regional electrical engineering regulations must be followed at all times. Relevant knowledge of network technology is required. The manual describes the installation of the unit. -
Page 6: Rating Plate
| Short information VIDEOJET decoder 7000 – EN 50121-3-2:2006 (Railway applications - Electromagnetic compatibility - Part 3-2: Rolling stock - Apparatus) – EN 50130-4:2011 (Alarm systems - Part 4: Electromagnetic compatibility - Product family standard - Immunity requirements for components of fire, intruder, hold up, CCTV, access... -
Page 7: System Overview
VIDEOJET decoder 7000 System overview | en System overview Parts included – 1 VIDEOJET decoder 7000 – 1 international power supply unit – 1 EU power cord – 1 US power cord – 1 CN power cord – 2 monitor mounting brackets –... - Page 8 Bosch video management systems. Operating system The system runs a tailored and Bosch-branded Microsoft Windows 10 IoT Enterprise operating system and Monitor Wall software based on UHD-capable VideoSDK 6. Making use of Intel’s hardware decoding accelerators, the software is fine-tuned for HD, 4K UHD and MP video decoding support.
-
Page 9: Connections, Controls And Displays
VIDEOJET decoder 7000 System overview | en Connections, controls and displays Figure 3.1: Connections, controls and displays Bosch Securtity Systems B.V. Installation manual 2019.10 | v01 | F.01U.345.382... - Page 10 | System overview VIDEOJET decoder 7000 DC power connector for connecting the power supply unit that is included 1 port HDMI for connecting a monitor, also for audio transmission RJ45 socket ETH for connecting to an Ethernet LAN (local area network), 10/100/1000 MBit Base-T 2 ports USB two dual USB 3.0...
-
Page 11: Installation
VIDEOJET decoder 7000 Installation | en Installation Preparations The decoder and the power supply unit are both intended for use indoors only. Select a suitable location for installation that guarantees to meet the environmental conditions. Notice! The ambient temperature for the unit must be between 0 and +40 °C (+32 and +104 °F). The relative humidity must not exceed 90%. - Page 12 | Installation VIDEOJET decoder 7000 When mounting the unit on the rear side of a monitor, ensure that there is adequate ventilation and enough clearance between both units and walls or other monitors, especially with several monitors mounted side by side on a wall.
-
Page 13: Connection
VIDEOJET decoder 7000 Connection | en Connection Sequence of connections Notice! Do not connect the decoder to the power supply until all other connections have been made. Otherwise the automatic assignment of the IP address will fail and a faulty monitor resolution will be set. - Page 14 | Connection VIDEOJET decoder 7000 All information regarding the functions and the operation can be found in the relevant documentation of Monitor Wall, Bosch Video Management System, or Video Client. 2019.10 | v01 | F.01U.345.382 Installation manual Bosch Securtity Systems B.V.
-
Page 15: Configuration
This chapter is intended for the administrator of the video management system. The setup process depends on the video management system in use. Refer to the corresponding documentation for details. In this manual, the setup with the Bosch Video Client system is explained as example. -
Page 16: Advanced Tab
| Configuration VIDEOJET decoder 7000 6.1.2 Advanced Tab In the Video windows group, you edit the default display of the cameos. Cameos are the viewlets which show the video stream in your video management system. Notice! The settings in this area apply to all cameos. You cannot configure settings here for individual cameos. -
Page 17: Integrating The Decoder Into The Video System
VIDEOJET decoder 7000 Configuration | en Subnet mask Enter an appropriate subnet mask for the IP address. Gateway address If required, enter an appropriate gateway address. Notice! A new IP address, or a new subnet mask or gateway address, does not become valid until the decoder is restarted. -
Page 18: Configuring The Decoder With Configuration Client
| Configuration VIDEOJET decoder 7000 Configuring the decoder with Configuration client For detailed information on the Configuration Client, refer to the BVMS Professional documentation. To configure a decoder: Main window > Devices > Expand > Expand > See the Online Help for the pages for details. -
Page 19: Troubleshooting
Contact If you are unable to resolve a malfunction, please contact your supplier or systems integrator, or go directly to Bosch Security Systems Customer Service. The following tables are intended to help you identify the causes of malfunctions and correct them where possible. - Page 20 | Troubleshooting VIDEOJET decoder 7000 Lights up blue: The unit is switched on. SSD LED Off: The unit’s SSD is not accessed. Flashes orange: The unit’s SSD is accessed. Find the following LEDs on the rear panel: RJ45 socket LEDs Left LED: Off: LAN connection not established.
-
Page 21: Maintenance
VIDEOJET decoder 7000 Maintenance | en Maintenance Updates Firmware and software updates are carried out via the Configuration Manager application or other management systems in use. Please refer to the relevant documentation. Service – Never open the housing of the unit. The unit does not contain any user-serviceable parts. -
Page 22: Decommissioning
The decoder should only be passed on together with this installation manual. Disposal Your Bosch product is designed and manufactured with high-quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. -
Page 23: Technical Data
VIDEOJET decoder 7000 Technical data | en Technical data Electrical / PSU Power supply Wide-range, external, included in the box Input voltage 100 to 240 VAC 1.2 A 50/60 Hz Class I Output 19 VDC 3.16 A Efficiency Energy Star EPS2.0/ ErP Lot 7 Energy Efficiency DOE Level VI... -
Page 24: Certifications And Approvals
| Technical data VIDEOJET decoder 7000 Audio – Data rate 48 kbps at 16 kHz sampling rate 80 kbps at 16 kHz sampling rate Signal-to-noise ratio > 50 dB Network Ethernet 10/100/1000 Base‑T, auto-sensing, half/full duplex, RJ45 Protocols IPv4, UDP, TCP, HTTP, HTTPS, RTP, RTSP, IGMP V2/V3,... - Page 25 VIDEOJET decoder 7000 Technical data | en Region Number EN 55024: 2010 - Immunity (CISPR 24:2010) EN 61000-3-2: 2014 - harmonic current emissions EN 61000-3-3: 2013 - Voltage fluctuations EN 62368-1:2014+A11:2017 - Low voltage directive FCC 47 CFR Chapter 1 Part 15...
-
Page 26: Index
| Index VIDEOJET decoder 7000 Index Audio connections 10, 13 Conventions 5 Danger 4 DHCP 15 Electromagnetic compatibility 5 Identification 6 Installation 4 Installation conditions 11 Installation location 11 Low Voltage Directive 5 Maintenance 4, 21 Network 13 Network connection 10... - Page 27 VIDEOJET decoder 7000 Index | Bosch Securtity Systems B.V. Installation manual 2019.10 | v01 | F.01U.345.382...
- Page 28 | Index VIDEOJET decoder 7000 2019.10 | v01 | F.01U.345.382 Installation manual Bosch Securtity Systems B.V.
- Page 30 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2019...
