Summary of Contents for Bosch VJD-7533

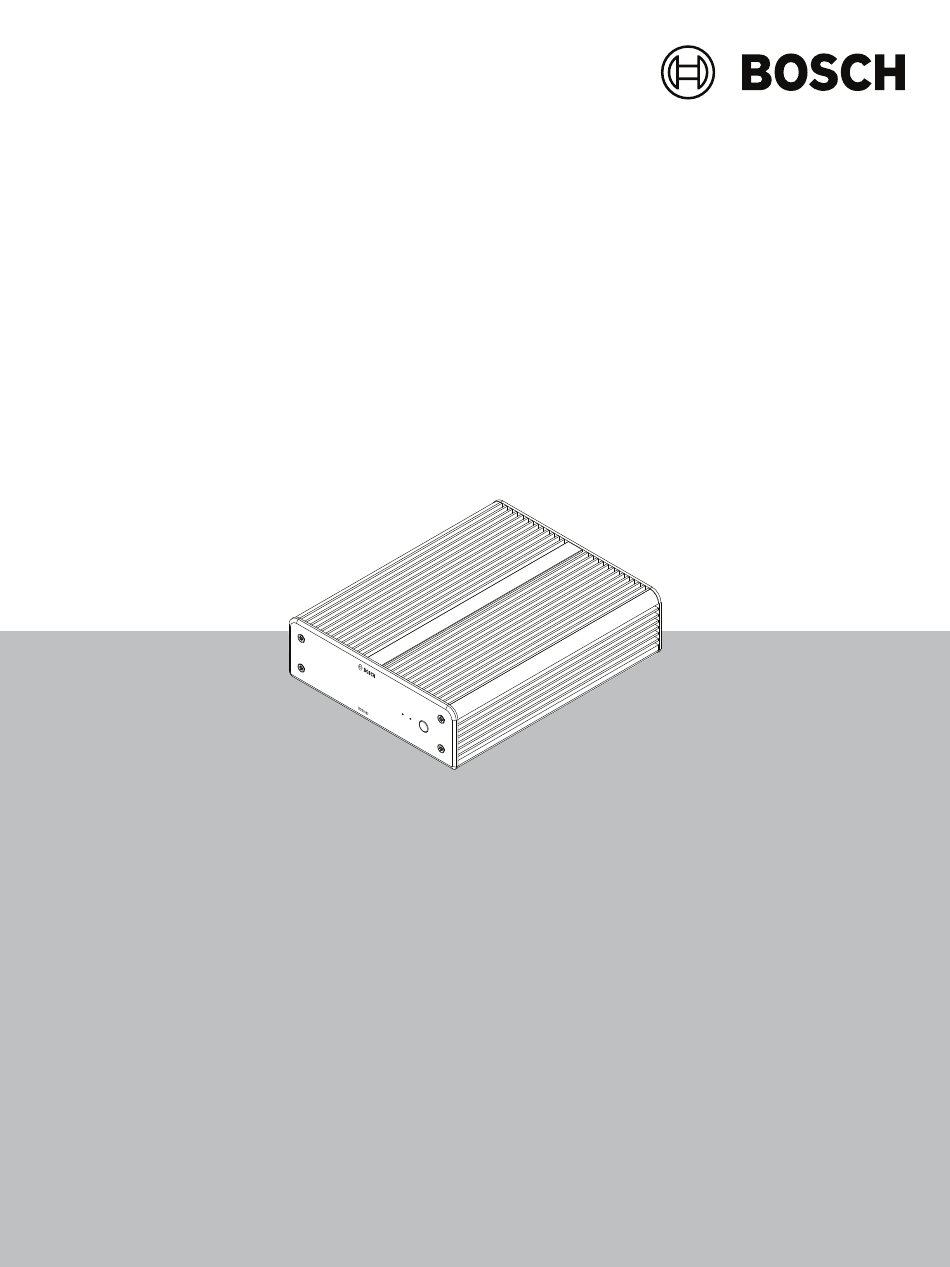

- Page 1 VIDEOJET decoder 7000 VJD‑7533 Installation manual...
- Page 3 Network Access Tab 6.1.4 Extended configuration Integrating the decoder into the video system Configuring the decoder with Configuration client Troubleshooting Contact General malfunctions LEDs Maintenance Updates Service Decommissioning Transfer Disposal Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 4 – If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. Safe operation is no longer possible if one or more of the following cases occur: –...
- Page 5 Security advisories, that is a list of identified vulnerabilities and proposed solutions: https://www.boschsecurity.com/xc/en/support/product-security/security- advisories.html Bosch assumes no liability whatsoever for any damage caused by operating its products with outdated software components. Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692...
- Page 6 IP video surveillance systems (VSS). No other applications are permitted. In the event of questions concerning the use of the unit which are not answered in this manual, please contact your sales partner or: Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com...
- Page 7 Please make a note of this information before installation, if necessary, so as to have it to hand in case of questions or when ordering spare parts. Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 8 H.265 or MPEG-4 encoding at up to 60 frames per second over IP networks. Remote control Control the viewing mode remotely and establish the video connections using comprehensive Bosch video management systems. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V.
- Page 9 1 SSD activity (orange) 6 Ethernet 2 Power indicator (blue) 7 Dual USB 3.0 3 Power switch 8 2x DisplayPort (via USB-C) 4 DC power connector 9 Kensington lock 5 2x HDMI Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 10 The decoder comes with four stands. Place the unit upon an appropriate flat surface from which it cannot fall down. As an alternative, you can mount the decoder to an approved monitor using the supplied mounting kit. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 11 Fasten the VESA mounting screws (marked 'B' in the above figure) to the monitor. Hook the keyholes onto the VESA screw heads and slide the decoder down to secure. Preferably, mount the decoder with connections facing downwards to ensure best ventilation. Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 12 Connect the decoder to the power supply unit. Select the suitable power cord and plug this into the power supply unit and then into the mains. The unit is now ready to use. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 13 After initial power-up you may use the power switch to turn the unit on or off. All information regarding the functions and the operation can be found in the relevant documentation of Monitor Wall, BVMS, or Video Client. Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 14 This group shows the hardware and firmware versions, and the serial number of the decoder. 6.1.2 Advanced Tab Notice! The settings in this area apply to all cameos. You cannot configure settings here for individual cameos. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 15 By default, Resolution adaptation is set to automatic mode. Thus, on start the optimum resolution for the display device is selected. The manual mode should only be used for project-specific adaptations by personnel qualified by Bosch. Bosch Security Systems B.V. 2024-11 | V01 | F.01U.420.692 Installation manual...
- Page 16 6.1.4 Extended configuration In this area, you can activate the extended configuration mode for security features. If the extended security configuration mode is active, the following options are available: 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 17 The device restarts automatically to change the configuration. Note: If the extended security configuration mode is active, no video image displays on the cameo of the decoder monitor. Instead, the following icon displays under the Bosch emblem to indicate the extended security configuration mode: If you deselect the Extended (security) configuration mode check box, the device restarts automatically again, and normal operation continues.
- Page 18 Confirm them both if you want to save. To display the device in a Web browser right-click the device icon and click Show webpage in browser. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 19 Contact If you are unable to resolve a malfunction, please contact your supplier or systems integrator, or go directly to Bosch Security Systems Customer Service. The following tables are intended to help you identify the causes of malfunctions and correct them where possible.
- Page 20 Left LED: Off: LAN connection not established. Green: LAN connection established. Blinking green: LAN activity occurring. Right LED: Off: 10 Mbps data rate. Green: 100 Mbps data rate. Yellow: 1000 Mbps data rate. 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 21 – Security advisories, that is a list of identified vulnerabilities and proposed solutions: https://www.boschsecurity.com/xc/en/support/product-security/security- advisories.html Bosch assumes no liability whatsoever for any damage caused by operating its products with outdated software components. Service – Never open the housing of the unit. The unit does not contain any user-serviceable parts.
- Page 22 – Repair & Exchange – Product Security Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ 2024-11 | V01 | F.01U.420.692 Bosch Security Systems B.V. Installation manual...
- Page 24 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202411291102...
