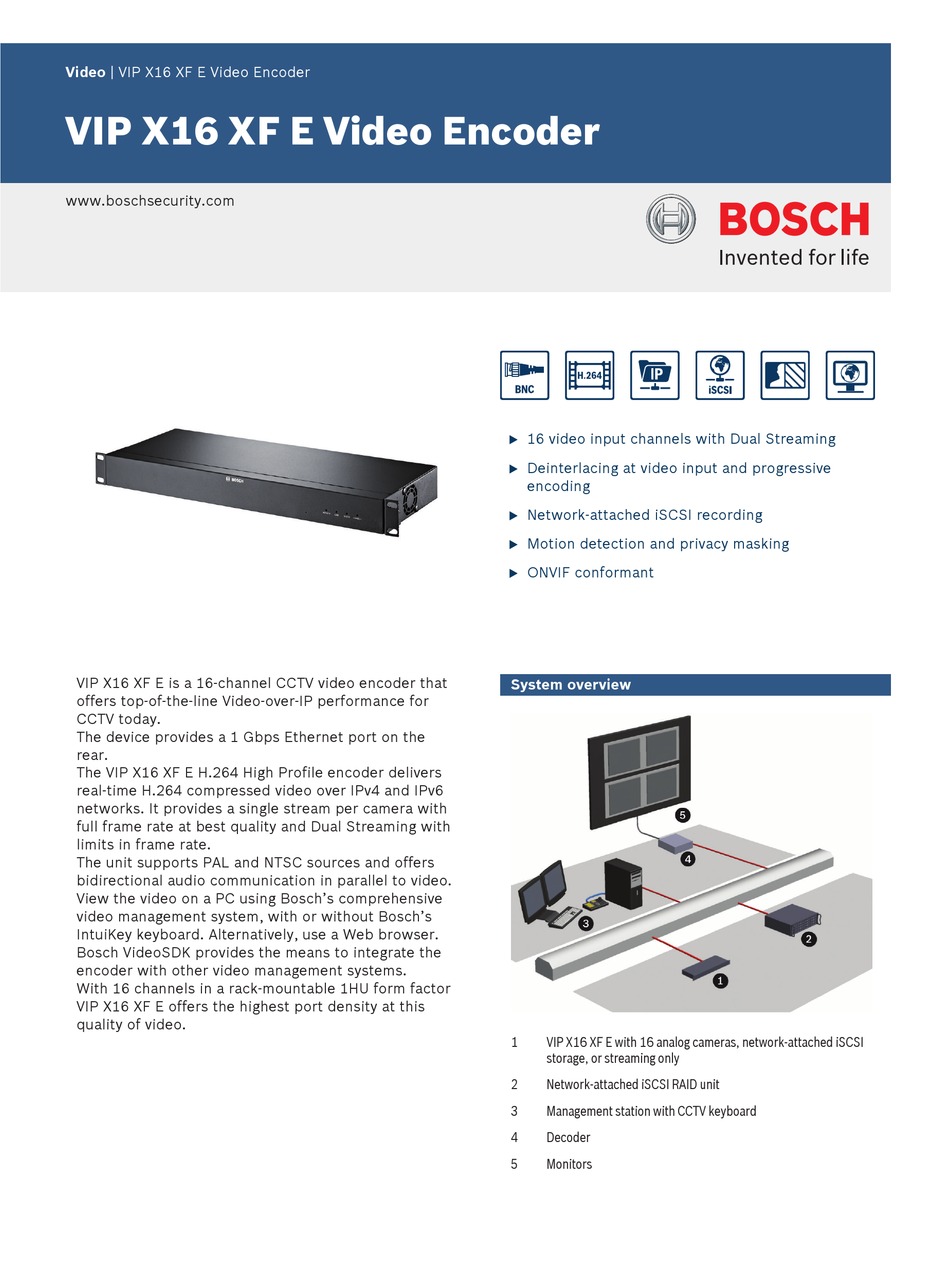

Bosch VIP X16 XF E Specifications

Video | VIP X16 XF E Video Encoder
VIP X16 XF E Video Encoder
www.boschsecurity.com
VIP X16 XF E is a 16‑channel CCTV video encoder that
offers top-of-the-line Video-over-IP performance for
CCTV today.
The device provides a 1 Gbps Ethernet port on the
rear.
The VIP X16 XF E H.264 High Profile encoder delivers
real-time H.264 compressed video over IPv4 and IPv6
networks. It provides a single stream per camera with
full frame rate at best quality and Dual Streaming with
limits in frame rate.
The unit supports PAL and NTSC sources and offers
bidirectional audio communication in parallel to video.
View the video on a PC using Bosch's comprehensive
video management system, with or without Bosch's
IntuiKey keyboard. Alternatively, use a Web browser.
Bosch VideoSDK provides the means to integrate the
encoder with other video management systems.
With 16 channels in a rack-mountable 1HU form factor
VIP X16 XF E offers the highest port density at this
quality of video.
16 video input channels with Dual Streaming
u
Deinterlacing at video input and progressive
u
encoding
Network-attached iSCSI recording
u
Motion detection and privacy masking
u
ONVIF conformant
u
System overview
1 VIP X16 XF E with 16 analog cameras, network-attached iSCSI
storage, or streaming only
2 Network-attached iSCSI RAID unit
3 Management station with CCTV keyboard
4 Decoder
5 Monitors
