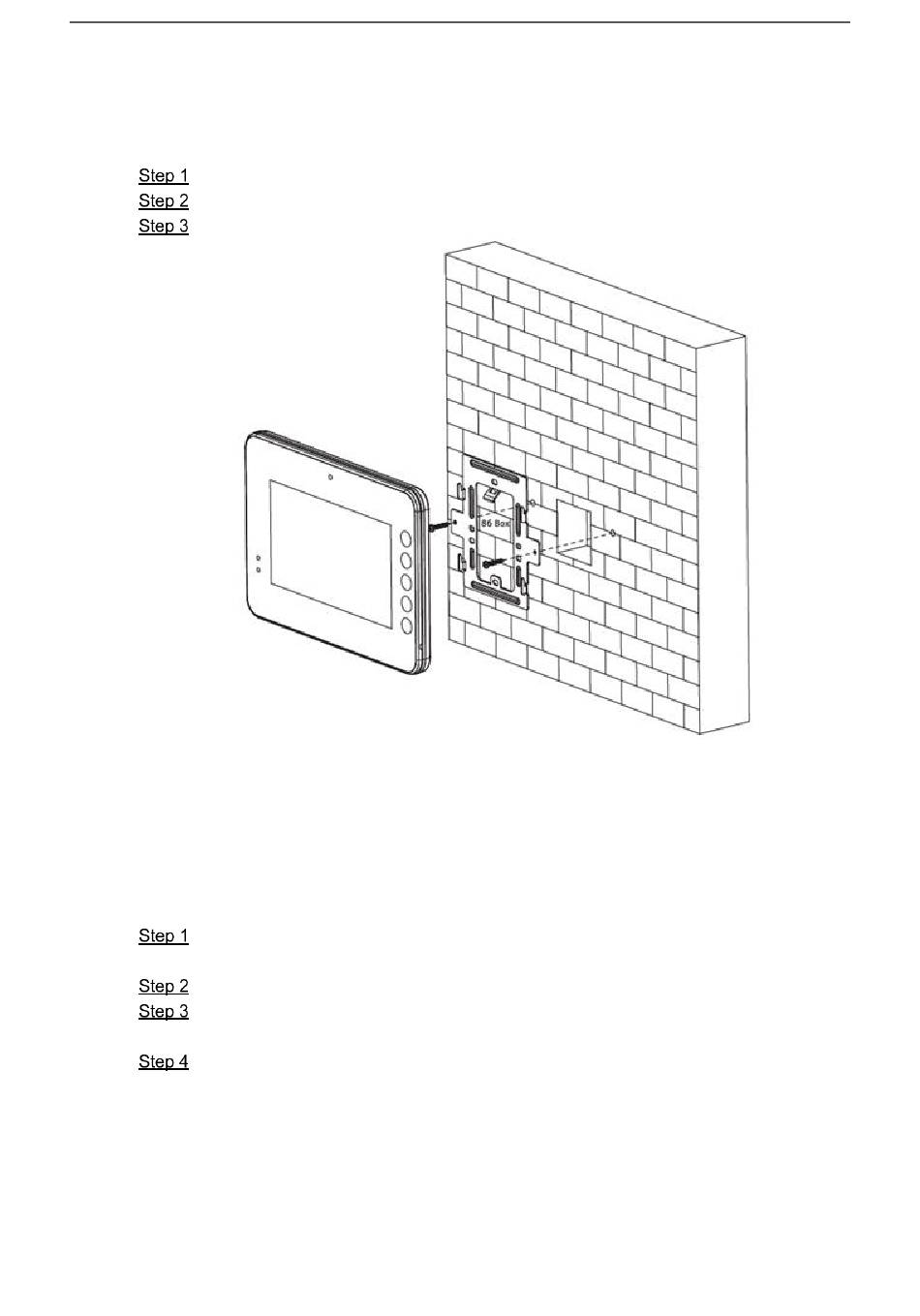

2.1.2 Installation with 86 Box

Install the device with 86 box, which is suitable for all types of devices. Take "VTH1560B/BW"

for example.

Embed 86 box into a wall at a proper height.

Fix installation bracket onto 86 box with screws.

Put the device into installation bracket from top down.

Install the device with bracket on the desktop, which only applies to handset VTH. Take

"VTH5221E-H" for example.

With two M3×6 cross recessed countersunk head screws, tighten the metal bracket

onto the top two nuts of desktop bracket.

Please connect wire by reference to Figure 1-2.

After wiring, guide the wire through wire outlet in the rear or at the bottom of desktop

bracket.

Put the handset VTH along slot at the top of metal bracket, and install it into the

bracket.

错误!使用"开始"选项卡将 Heading 1,l1,H1,Title1,Normal + Font: Helvetica,Bold,Space Before

12 pt,Not Bold,Heading One,h1,Head1,Head,1,Numbered,nu,Level 1 Head,1st level,Section He

ad,Sec1,h11,1st level1,h12,1st level2,h13,1st level3,h14,1st level4,h15,1st level5,h16,h17 7

Figure 2-2
