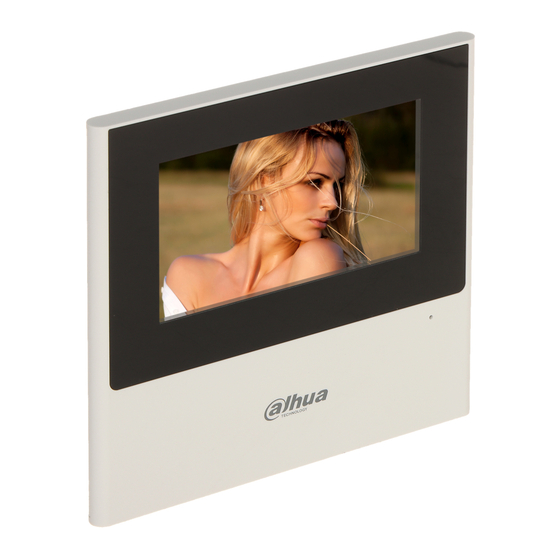

Dahua VTH2611L-WP User Manual
  1. Manuals
  2. Brands
  3. Dahua Manuals
  4. Intercom System
  5. VTH2611L-WP
  6. User manual

Dahua VTH2611L-WP User Manual

Digital vth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital VTH
User's Manual
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTH2611L-WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTH2611L-WP

Summary of Contents for Dahua VTH2611L-WP

  • Page 1 Digital VTH User’s Manual V1.0.0...

  • Page 2: Foreword

    Foreword General This manual introduces the installation, functions and operations of the indoor monitor device (hereinafter referred to as "the VTH"). Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in...
  • Page 3 For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version. All designs and software are subject to change without prior written notice. Product updates ...

  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Operation Requirements ● Check whether the power supply is correct before use. ●...

  • Page 5: Table Of Contents

    Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Product Overview ............................1 Introduction ....................................1 Function ......................................1 2 Quick Configuration of VTO and VTH ......................3 Preparation ....................................3 VTO Configuration ..................................3 2.2.1 Initialization ..................................3 2.2.2 Network Parameters ..............................
  • Page 6 Setting ......................................39 3.6.1 Ring Settings................................. 39 3.6.2 Card Information ................................. 42 3.6.3 Alarm Setting ................................42 3.6.4 Mode Setting ................................45 3.6.5 Forward Setting ................................46 3.6.6 General Setting ................................47 3.6.7 Product Information ..............................51 Project Settings ..................................52 3.7.1 Forget Password ................................

  • Page 7: Product Overview

    Product Overview Introduction A digital VTH is a device that can perform monitoring, voice/video call, and door unlock. Function Wi-Fi Networking Connect to Wi-Fi networks. Video/Voice Call Make video or voice call to other VTOs and VTHs. Monitoring Monitor fence station, VTO and IPC devices (only supported by certain models). Make emergency call to the Call Center.
  • Page 8 Playback Play back videos and pictures in the SD card. Alarm Alarms will trigger linkage and be sent to the Call Center. Record View call and alarm records. Message View messages, including videos, pictures and announcements.

  • Page 9: Quick Configuration Of Vto And Vth

    Quick Configuration of VTO and VTH Carry out quick configuration to make sure that the device can realize basic network access, call and monitoring functions. Preparation Before commissioning: Power on the device only after there is no short or open circuit. ...
  • Page 10 Device initialization Enter the password and confirm it, and then click Next. This password is used to log in to the web interface. It must be at least 8 characters, and include a combination of at least two types among number, letter and symbol. Set an email address Select Email and enter your email address for resetting password.

  • Page 11: Network Parameters

    Initialization successful Click OK and the it jumps to the login interface. Login interface Enter username (admin by default) and password, and then click Login. 2.2.2 Network Parameters Change the IP address of the VTO to the one that you planned. Select Network Setting >...

  • Page 12: System Type

    TCP/IP Enter the parameters, and then click OK. The VTO automatically restarts. Make sure that the PC is in the same network segment as the VTO to log in again. 2.2.3 System Type Select Local Setting > Basic. Device properties Select System Type to TCP/IP.

  • Page 13: Sip Server

    SIP server (1) Select a server type. When this VTO or another VTO works as the SIP server, select Server Type to VTO. It  applies to a scenario where there is only one building. When a platform (such as DSS Express/DSS Pro) works as the SIP server, select Server ...

  • Page 14: Adding Vto

    Table 2-1 SIP server parameters when a VTO works as the SIP server Parameter Description IP Address IP address of the VTO that works as the SIP server. Port 5060 by default. Username Keep it default. Password SIP Domain VDP. Login Username SIP server login username and password.

  • Page 15: Adding Vth

    Add a VTO Configure the parameters. Table 2-3 Parameters of adding a VTO Parameter Description Rec No. VTO number. Register Password Keep it default. IP Address IP address of VTO. Username Web interface login username and password of this VTO. Password Click OK.

  • Page 16: Vth Configuration

    Add a VTH Configure the parameters. Table 2-4 Parameters of adding a VTH Parameter Description First Name Last Name Information to distinguish each device. Nick Name VTH number consists of 1–6 numbers, which may include number  and #. It must be consistent with room number configured at the VTH.
  • Page 17 Select a region and language Select Apartment or Villa, and then tap OK. This section takes Villa as an example. Select apartment or villa Select First-time Config and tap OK.
  • Page 18 First-time configuration DHCP is selected by default, or select Static IP and configure the parameters as needed. DHCP...
  • Page 19 Static IP Set a password and an email address for the VTH, and then tap Next. The password is used to enter project setting.  If you select Apartment in Step 2, initialization is completed with this step.  Set a password an email address for the VTH Set a password and an email address for the VTO.
  • Page 20 Set a password an Email address for the VTO Click Initialize to initialize a single device or Batch Initialization to initialize all available devices, and then click Next. Initialize devices Click One-key Config to go to the main interface.

  • Page 21: Network Parameters

    Network configuration Main Screen 2.3.2 Network Parameters IP addresses of all VTHs and VTOs must be in the same network segment. Otherwise, the VTH will fail to obtain VTO information. On the main screen, select Setting > Project Setting. Enter the password and tap OK. Tap Network.
  • Page 22 WLAN  Only certain models support WLAN function.  Use a router with secured encryption protocols.  Turn on the WLAN function. WLAN Connect to a network. The system has 2 access ways as follows. Tap Wireless IP and enter Local IP, Subnet Mask and Gateway, and then tap OK. ◇...

  • Page 23: Vth Config

    Enable the DHCP function 2.3.3 VTH Config On the main screen, select Setting > Project Setting. Enter password and tap OK. Tap VTH Config. VTH configuration Configure VTH information. As a main VTH.  Enter the room number (such as 9901 or 101#0) and other information, and then tap OK.

  • Page 24: Sip Server

    Room number must be the same with VTH Short No., which is configured when adding VTHs on the VTO web interface. Otherwise, it will fail to connect to the VTO. When there are extension VTHs, room numbers must end with #0. Otherwise, it will fail to connect to the VTO.

  • Page 25: Vto Configuration

    Table 2-5 SIP server parameters Parameter Description When a platform works as the SIP server, it is the IP address of the Server IP platform. When a VTO works as the SIP server, it is the IP address of the VTO. 5080 when a platform works as the SIP server.

  • Page 26: Searching Device

    User Name and Password must be consistent with the web interface login username and password of the VTO. Add sub VTO or fence station.  Enter the sub VTO or fence Station name, IP address, username and password. Turn on Enable Status. to turn page and add more sub VTO or fence stations.
  • Page 27 Add a VTO Click Change IP to change the information of the VTO, including IP, netmask, and  gateway. Username and password cannot be changed here. They are the same as the ones used to log in to the web interface of the VTO, and are used to log in to the VTO. Change the information of the VTO device...

  • Page 28: Commissioning

    Commissioning 2.4.1 VTO Calling VTH Dial the VTH room number (such as 101) on the VTO and the following image appears, which means all parameters are correctly configured. Calling interface 2.4.2 VTH Monitoring VTO VTH can monitor VTO, fence station or IPC. This section takes monitoring VTO as an example. On the main interface of the VTH, tap Monitor >...
  • Page 29 Door Monitoring image SD card is needed for recording and snapshot; otherwise, the icons will be gray.

  • Page 30: Vth Interface Operation

    VTH Interface Operation Home Screen Home screen Table 3-1 Home screen description Name Description Room number Number of the room where the VTH is located. Time and Date — View, delete and clear announcements or security alarm information. When the VTH does not have an SD card, and the video- audio message uploading function is enabled on the VTO, Info three tabs will be displayed, Guest Msg, Guest Snap and...

  • Page 31: Call

    Name Description Screen Off Tap to screen off the current screen. Monitor Monitor VTOs, fence stations, IPCs and NVRs. Call other VTOs and VTHs. Call View and manage the contacts and call records. Call Manage contact, call and view call records. 3.2.1 Recent Call Tap Call >...
  • Page 32 Contact Add a user.  Tap Add. User information Enter the information. Tap OK. Related Operations Edit user information: Tap a user and tap Edit.  Delete a user: Tap Edit, select a user, and then tap Delete.  You can select multiple contacts at the same time.

  • Page 33: Call User

    3.2.3 Call User Make sure that resident-to-resident call function has been enabled. See "3.6.6.4 QR Code" for  details. Call function is used by VTH to call VTH.  If both VTHs have a camera, bilateral video call can be provided. ...
  • Page 34 Calling Call in progress 3.2.3.2 From Contact Add contacts first. See 3.2.2 Contact. Select Call > Contact. Select the one you want to call. to start.

  • Page 35: Call From User

    3.2.4 Call from User When receiving calls from other VTHs, the following interface will be displayed. Call interface (1) : Answer.  : Hang up.  Call interface (2) 3.2.5 Call from VTO Dial VTH room number (such as 9901) at VTO, to call VTH. On the VTH screen, tap Answer.
  • Page 36 Call from VTO Table 3-2 Interface description Description Remotely unlock the door where the VTO is installed. The system provides 2-channel unlock. If the icon is gray, it means that the unlock function of this channel is not available. Tap to talk to the VTO. Select an IPC in Favorite to monitor.

  • Page 37: Information

    Information You can view and manage different kinds of information. Information in Security Alarm and Publish Info is stored in the device, and the one in Guest  Message and Video Pictures is stored in the SD card, which means you need an SD card for these two functions.

  • Page 38: Guest Message

    3.3.2 Guest Message Select Info > Guest Message, and then you can view and manage all messages. Guest message 3.3.3 Publish Information Select Info > Publish Info, and then you can view and manage all messages. Publish info 3.3.4 Video Pictures Select Info >...

  • Page 39: Monitor

    Records Monitor You can monitor VTO, fence station or IPC on the VTH. 3.4.1 Monitoring VTO When adding VTOs, make sure that the username and password of each device is consistent with the web login username and password. See 2.3.5 VTO Configuration for details. Otherwise, monitoring will not work properly.
  • Page 40 Door Table 3-3 Function description Icon Description Add the VTO or fence station to Favorite. Select an IPC, and when this VTO or fence station calls, you will see the monitoring image from this IPC. Add an IPC first. See 3.4.2.1 Adding IPC for details. Display the serial number of the VTO or fence station in QR code.

  • Page 41: Monitoring Ipc

    Table 3-4 Interface description Icon Description Remotely unlock the door where the VTO is located. The system provides 2-channel unlock function. If the icon is gray, it means that unlock function of this channel is not available. Take snapshot. An SD card is needed to use this function. Tap to start recording, and it will stop when the call is completed or by tapping If the SD card is full, the oldest videos will be overwritten.
  • Page 42 Tap Add. Add IPC Configure the parameters.
  • Page 43 Table 3-5 Parameter description Parameter Description Select IPC or NVR. IPC32 Name Name of the IPC/NVR. IP address of the IPC/NVR. User Name The login username and password of the web page of the IPC/NVR. Password Port 554 by default. Main stream: High definition that needs large amount of bandwidth.

  • Page 44: Favorite

    Monitoring video Please monitor the VTO by reference to Table 3-4. 3.4.3 Favorite Displays VTO, fence stations or IPC that have been added to favorites. To view favorite list, please ensure that VTO, fence station or IPC have been added to favorites. Otherwise, the list is empty.

  • Page 45: Sos

    The system displays monitoring interface. In case of multiple devices in Favorite tab, tap to switch and monitor them. Please ensure that management center has been connected. Otherwise, it will fail to call. In emergency, press the SOS button on the device front panel, or tap SOS on the main interface to call management center.
  • Page 46 VTO ring setup Tap text box to select rings, and tap to adjust the volume. 3.6.1.2 VTH Ring Set the ring for this VTH. Tap Setting. Select Ring > VTH Ring Setup. VTH ring setup Tap text box to select rings, and tap to adjust the volume.
  • Page 47 Alarm ring Tap text box to select rings, and tap to set the volume. 3.6.1.4 Other Ring Settings Set VTO ring time, VTH ring time, MIC volume, talk volume and ring mute setting. VTO Ring Time and VTH Ring Time of extension VTH are synchronized with main VTH, and cannot be set.

  • Page 48: Card Information

    VTO ring time: ring time when a VTO calls this VTH.  VTH ring time: ring time when another VTH calls this VTH.  3.6.2 Card Information Issue and manage card information. This function is only available under Villa. Card management Click Issue Card.
  • Page 49 Wired zone Tap corresponding positions to set area type, NO/NC, alarm status, enter delay and exit delay. Table 3-6 Parameter description Parameter Description Area The number cannot be modified. Select NO (normally open) or NC (normally closed) according to detector type. It shall NO/NC be the same as detector type.
  • Page 50 3.6.3.2 Wireless Zone Only devices with wireless function have this function.  The actual screen of the Wireless Zone might differ depending on the model you use. The  snapshot is for reference only. Add, delete and set wireless zones. Tap Setting.

  • Page 51: Mode Setting

    Output to enable alarm output function, and the icon becomes 3.6.4 Mode Setting Set area on/off status under different modes. Area mode can only be set in disarm status. Tap Setting. Select Mode. Mode Select arm mode you want to configure in the tabs. in every area to add it into arm mode.

  • Page 52: Forward Setting

    3.6.5 Forward Setting Forward incoming calls. Parameters at this interface are set on main VTH only, and extension VTH synchronizes with the main VTH. Tap Setting. Select Forward. Forward Enter the VTH number in the corresponding forward mode, tap to enable the forward function.

  • Page 53: General Setting

    3.6.6 General Setting Set VTH time, display, password and others. 3.6.6.1 Time Setting Set VTH system time, time zone and DST. Parameters at this interface are set on main VTH only, and extension VTH synchronizes with main VTH. Tap Setting. Select General >...
  • Page 54 Enable DND period, set start and end time or tap Click to select week to select the  day(s), and you will not receive any call or message during this period. 3.6.6.2 Display Setting Set VTH screen brightness, screensaver time and clean. Tap Setting.
  • Page 55 User password Enter the password in the New PWD and confirm it in the Confirm PWD textbox. Tap OK to complete password modification. 3.6.6.4 QR Code Download the app on your smartphone by scanning the QR code, register the VTH on the app, and then you can unlock the door, or talk to the VTH, and more directly on your smartphone.
  • Page 56 3.6.6.5 Other Settings Set monitor time, record time, VTO message time, VTO talk time, resident-to-resident call enable, resident-to-resident call time, auto capture and touch ring. Extension VTH can set Auto Capture and Touch Ring, but other parameters synchronize with main VTH and cannot be set.

  • Page 57: Product Information

    Parameter Description Operation Resident-to- resident Call Maximum talk time between VTH and VTH. Time VTO Talk Time Maximum talk time when VTO calls VTH. After resident-to-resident call is enabled, VTH can call another VTH. Resident-to- resident Call Enable The called party enables internal call, to realize this function. After enabled, 3 pictures will be captured automatically when the VTO calls the VTH.

  • Page 58: Project Settings

    Project Settings 3.7.1 Forget Password If you forget initialization password when entering project settings interface, reset password through Forget Password on the screen. Select Setting > Project Setting. Tap Forget Password. QR code Scan the QR code with any code-scanning APP, bind your email box, send it by email to the specified email addressed on the screen to obtain a security code.

  • Page 59: Reset Msg

    IP address and data in the SD card will not be restored. See Figure 3-38 to format the SD card. Select Setting > Project Setting. Enter the password you set during initialization, and tap OK. Tap Default. Tap OK. The device restarts and proceeds to initialization. 3.7.6 Reset MSG Modify the bonded Email.

  • Page 60: Arm And Disarm Function

    Arm and Disarm Function 3.9.1 Arm In case of triggering alarm after arm, produce linkage alarm and upload alarm info. Please ensure that the area has been added into arm mode. Otherwise, there will be no alarm  triggering after arm. Please ensure that it is in disarmed status.
  • Page 61 Default password of arm and disarm is 123456. Please refer to 3.6.6.3 Password Setting  for details. If you are forced to enter disarm password in case of emergencies, enter anti-hijacking  password, which is the reversed arm password. The system will disarm, and at the same time, upload alarm info to management center/platform.

  • Page 62: Dss Agile Vdp

    DSS Agile VDP You can download DSS Agile VDP (hereinafter referred to as the "app") and link your VTH to the app to unlock the door, talk to connected VTO devices, call the management center, and view call records and messages.

  • Page 63: Registration And Login

    Registration and Login on your smartphone, read the Software license agreement and Privacy policy, and then tap Agree (only for first-time login). Registration interface , and then scan the Register code on the VTH. See Step 2 in "4.1 Downloading the App".

  • Page 64: Call Functions

    Enter the username and password, and then tap Registration. You can add 5 users to one VTH at most. Login Tap the Login, enter the username and password you have set, and then tap Login. Call Functions You can receive the forwarded calls, remotely unlock the door, view live video of the VTO, and more. To receive push notifications of call messages on the mobile phone, make sure that notifications of the app are enabled on your smartphone, and you are logged in to the app.
  • Page 65 Settings On the VTH main screen, tap Setting. VTH main interface Enter the password you configured, and then tap Forward.

  • Page 66: Calling Operations

    Forward Select forwarding type as needed: Always: All calls to this VTH will be forwarded.  Busy: If the VTH is busy, the call will be forwarded.  No Answer: Any call that is not answered within the defined ring time will be forwarded. ...

  • Page 67: Monitoring

    A call from a VTO Monitoring After a VTO is added, you can view its live video, have two-way audio talk, call management center, and remotely unlock the door. Log in to the app, and then tap Monitor.
  • Page 68 Monitor interface , select the VTO from the channel list as needed.

  • Page 69: Call Records

    Live video : Switch to another VTO.  : Unlock the door remotely.  : Have a two-way audio talk with the VTO.  : Call management center.  Call Records View the incoming and outgoing call records. Log in to the APP, and then tap Records.
  • Page 70 Call records Red phone icon: The call is missed or not answered.  Green phone icon: The call is answered.  Not Opened/Opened: Indicates whether the door is unlocked.  Edit: Delete the record one by one, or tap Edit > Empty to delete all records. ...

  • Page 71: Message

    Message You can view the unlocking records and alarm messages, and search for history messages. You need to enable Event Subscription in Setting of the App first. See "4.7 Setting" for details.  To receive messages on your smartphone, make sure that notifications of the app are enabled on ...
  • Page 72 Alarm messages Searching for History Messages Tap History, set the start and end time, and then tap SEARCH. You search for messages within up to 7 days.
  • Page 73 History messages...

  • Page 74: Visitor

    Visitor You can create a pass for a visitor to have access permission. The pass is invalid after it is manually invalidated, the visiting period expires, or the visit is ended. You can also view visit records. 4.7.1 Creating Pass Log in to the APP, and then tap Visitor.
  • Page 75 Visitor pass Tap Send to Visitor to send the QR code to the visitor. Tap Save to save the QR code to your smartphone. (Optional) Tap Invalidate to cancel the appointment, and then the QR code will not have access permissions. Tap Invite Again to generate a new pass for the visitor.

  • Page 76: Visit Records

    Invalidate the pass 4.7.2 Visit Records You can view visitor status such as having an appointment, on a visit, ending the visit, and cancelling the appointment. You can also view and modify the pass. View visitor status: Log in to the APP, tap Visitor > Record. ...

  • Page 77: Setting

    Visitor records Setting You can view SIP ID, and enable message subscription, stream encryption, message sound, login by pattern, and more. Log in to the app, and then tap Setting.
  • Page 78 Setting Event Subscription: Enable it, and then you can receive unlocking messages and alarm messages.  See "4.6 Message" for details. Stream Encryption: Enable it to enhance security, but stream acquisition speed might slow down.  Gesture: Draw a pattern, and then you can log in by that pattern. ...

  • Page 79: Cybersecurity Recommendations

    Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
  • Page 80 We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel. MAC Address Binding We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing. Assign Accounts and Privileges Reasonably According to business and management requirements, reasonably add users and assign a minimum set of permissions to them.
