Sanuvox RMax Ductboard Installation Manual

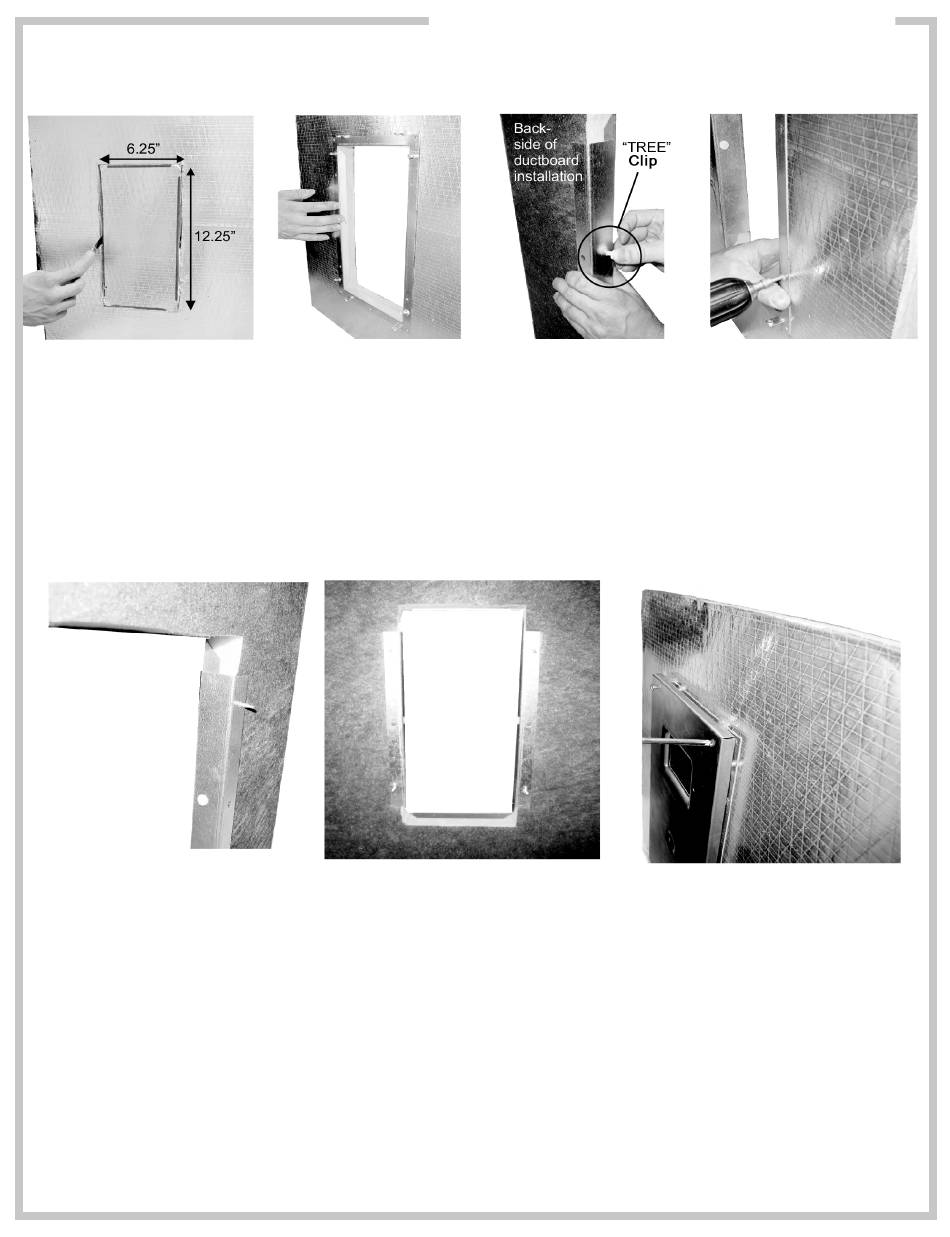

Use the included metal frame to
trace the outline onto the duct
(allow for a 1/4" space around
the marking as to allow the
frame to sit properly in the duct.
This will be the guide to cut the
duct opening. The duct opening
is 12.25" x 6.25".
Back-side of ductboard installation
Sanuvox RMax Ductboard installation
Installation of the two "L" Bracket Supports
NOTE: The "L" Brackets may be reversed to accommodate either a 1" or 1½" thick ductboard.
The "L" Brackets are used to evenly distribute the weight of the Sanuvox RMax so it can be held
in place in a ductboard installation.
Place the metal frame against the ductboard. Use the "L" Bracket supports (left and right)
to support the metal frame to the ductboard. Press both "TREE" Buttons into the ductboard
holding both "L" Bracket Supports in place. After the "TREE" Buttons have been pushed in place,
drill the 4 x self tapping screws (2 per "L" Bracket) securing the metal frame to the "L" Bracket.
(MSC Duct)
Once both "L" Brackets are secured
in place, insert the Sanuvox RMax.
Please refer to the Sanuvox RMax
installation manual Figure C. steps 10-11.
