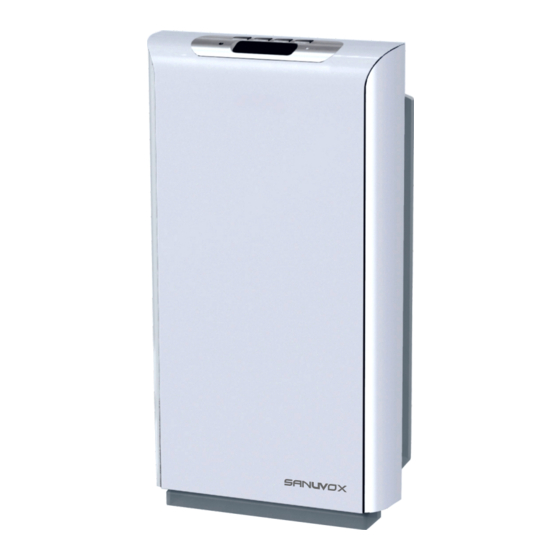

Sanuvox BIOPUR Operating Instructions

Uv air treatment system
Hide thumbs Also See for BIOPUR:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
Advanced Indoor Air Quality Systems
1-888-726-8869 www.sanuvox.com

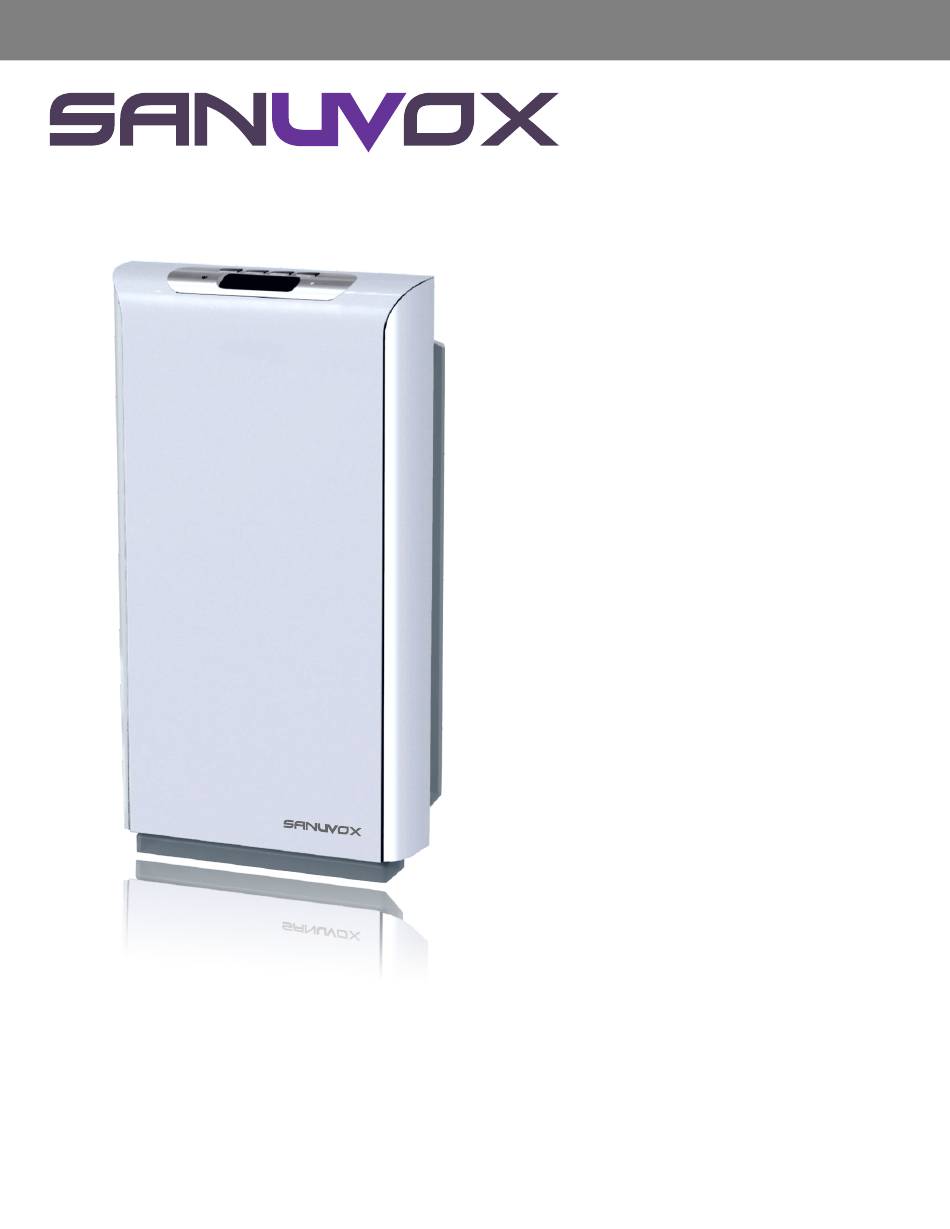

UV BIOPÜR
Air Treatment System

Specifications

Plug Type: AC120V (Two Flat)
·
Cord Length: 2.6m.
·
Power Supply：AC120V/60Hz.
Three Speeds:
III=1250±100RPM
II=1000±100RPM
I=650±100RPM
Rated Power: 50W
·
3
CADR= 150 m /h
·
3
·
Air Flow= 165 m /h (140 CFM)
Product Size：336 X 235 X595 mm
·
Unit Weight：6.7Kg.
·
7.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIOPUR and is the answer not in the manual?

Questions and answers

Related Manuals for Sanuvox BIOPUR

Summary of Contents for Sanuvox BIOPUR

  • Page 1 Power Supply：AC120V/60Hz. Three Speeds: III=1250±100RPM II=1000±100RPM I=650±100RPM Rated Power: 50W · CADR= 150 m /h · · Air Flow= 165 m /h (140 CFM) Product Size：336 X 235 X595 mm · Unit Weight：6.7Kg. · UV BIOPÜR Air Treatment System 1-888-726-8869 www.sanuvox.com...
  • Page 2 Operating Instructions UV/ ION ON / OFF Speed Timer Button Setting Button Setting HEPA Change API Display or Clean Timer Reset Air-Flow Auto BEFORE FIRST USE please follow the instructions below: Upon removing the unit from the box: Remove the unit from the plastic bag Remove the cover Remove the Styrofoam Twist latch to allow the filters to be removed...
  • Page 3 / 17,500 hours of operation) it is time to replace the HEPA, Carbon filter and UV Lamp. Contact your local vendor for the replacement kit or contact Sanuvox at 1-888-726-8869. Follow the instructions that will accompany the replacement kit on how to replace the UV Lamp. Once the contents of the replacement kit have been installed use a paperclip (or similar object) to press and hold the reset button for 3 seconds.
  • Page 4 Operating Instructions 9. To Clean the HEPA and pre-filter, remove the black foam pre-filter from the HEPA filter (these are attached with Velcro). Shake off or wash the pre-filter to clean any dirt and/or particulates from the media. Use a vacuum cleaner to clean off the HEPA Filter.
  • Page 5 Warranty claims are to be made to Sanuvox directly. The customer shall contact Sanuvox at 1-888-726-8869 to obtain the address of a Sanuvox Service Center where the defective unit is to be shipped (at customer's expense) along with a copy of the original invoice.
