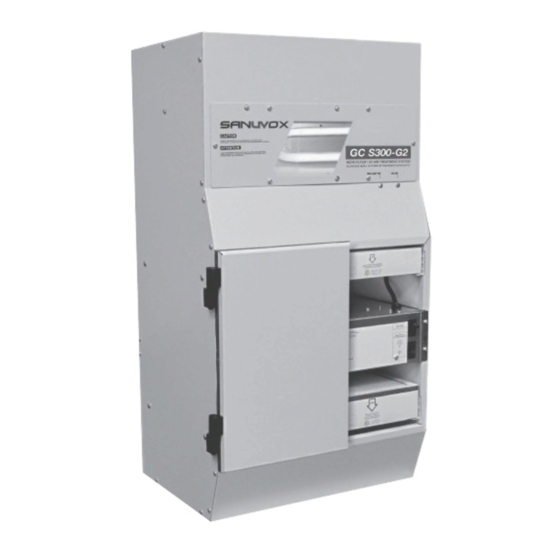

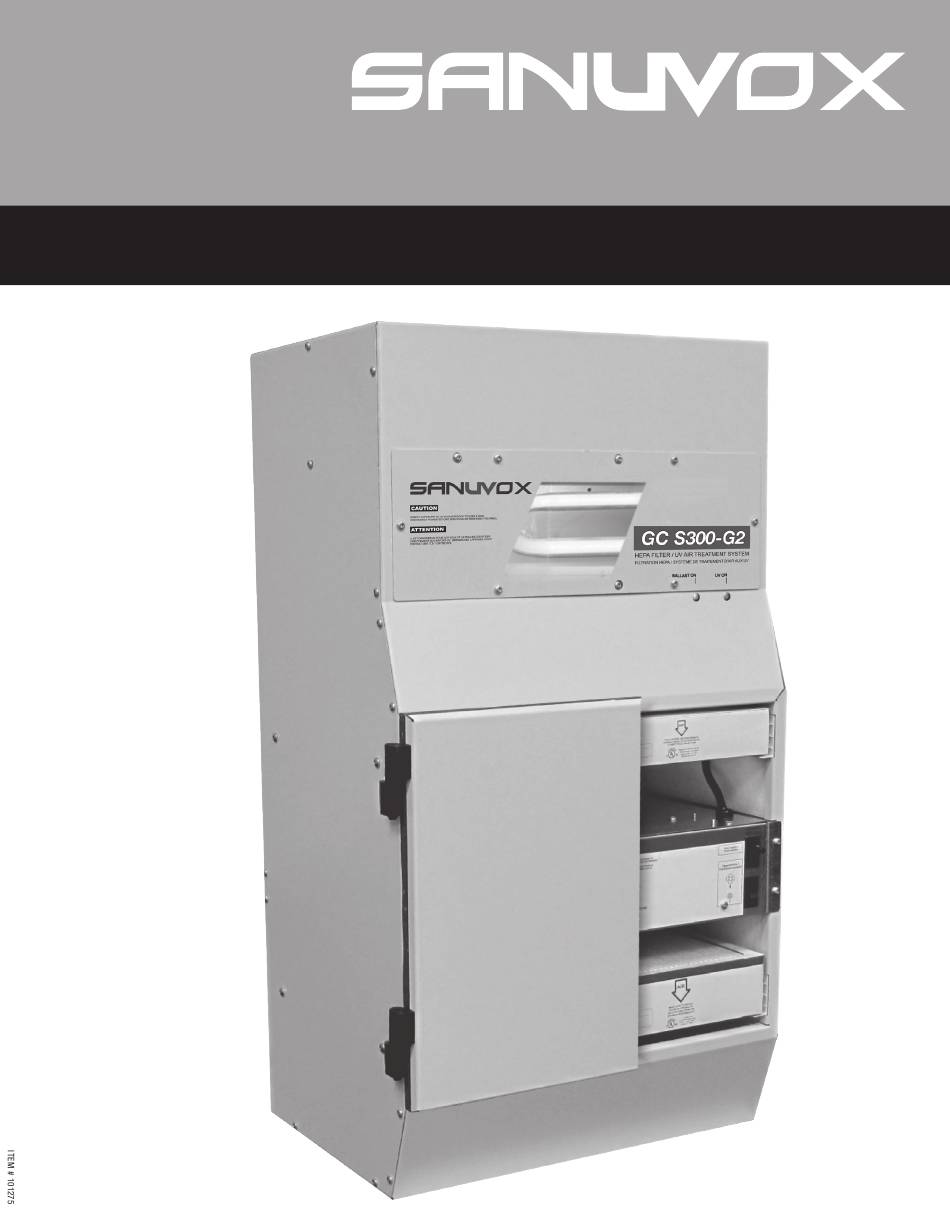

- Page 1 INSTALLATION, MAINTENANCE & OPERATION GUIDE MODEL GC S300-G2 STAND ALONE UVC / HEPA AIR PURIFIER...
- Page 2 Follow all safety codes. Wear safety glasses and work gloves. WARNING Before installing the GC S300-G2 Purifier or performing maintenance or service on the air purifier, disconnect power cord from the unit.
-
Page 3: Table Of Contents
• Plenum seal, 7.5 FT • Screws, (16) 8 x 32 x 1/2" • Template • 2 Ultraviolet UVC Lamps J Type 10.5" (266.7 mm) • Pre-Filter • HEPA Filter • 2 collars • Uninsulated flex ducting SANUVOX - MODEL GC S300-G2 - 3... - Page 4 Stage 2 Stage 2 Stage 2 13" 12" 13" 12" 17" 13" 12" 17" 17" 327 mm 305 mm 327 mm 305 mm 327 mm 305 mm 432 mm 432 mm 432 mm 4 - SANUVOX - MODEL GC S300-G2...
-
Page 5: Installing The Unit
Figure 2.2b - Replace door and insert power cord Figure 2.2a - Remove protective plastic covers into the receptacle of the HEPA and the other end from all filters and install in proper location. into a wall outlet. SANUVOX - MODEL GC S300-G2 - 5... - Page 6 STEP 1: The UV Lamps are packaged in the filter section of the GC S300-G2. Remove the first UV lamp from the packaging material. The lamp is fragile, use extreme care. Do not touch the glass on the lamp with bare hands. Use the enclosed gloves when handling the lamp. Handle lamp from the ceramic ends.
-
Page 7: Owner's Operation Guide
OWNER’S OPERATION GUIDE 3. GENERAL OPERATING INFORMATION The GC S300-G2 HEPA/UV Purifier is designed DOOR SWITCH FUNCTION to kill bacteria, viruses, odor causing mold and The HEPA/UV air purifier is comprised of a fan, fungus as well as chemical odors and VOC's speed selection switch, 2 stages of filtration that pass through the unit. -
Page 8: Changing Filters
• Check for excessive dust buildup or missing balancing weight on the impeller wheel. 4.4 ELECTRICAL WIRING DIAGRAM Black Blue Brown 2.5uf Speed Selection 7.5uf UV Power Supply cord for Door optional UV module Interlock 8 - SANUVOX - MODEL GC S300-G2... - Page 9 3-YEAR WARRANTY — Except for the UV Lamp and Ballast, this SANUVOX WILL NOT BE RESPONSIBLE FOR: Sanuvox Technologies Inc. product is warrantied to be free from defects 1. Normal maintenance as outlined in the installation and servicing in material and workmanship under normal use and maintenance for instruction or owner's manual.
- Page 10 Sanuvox Technologies Inc. 146, Barr Street, St-Laurent, QC H4T 1Y4 Canada T. 1-888-SANUVOX ■ F. 1-514-382-6475 ■ www.sanuvox.com ■ info@sanuvox.com...
