c-max
160 kg
-max
C
2.2

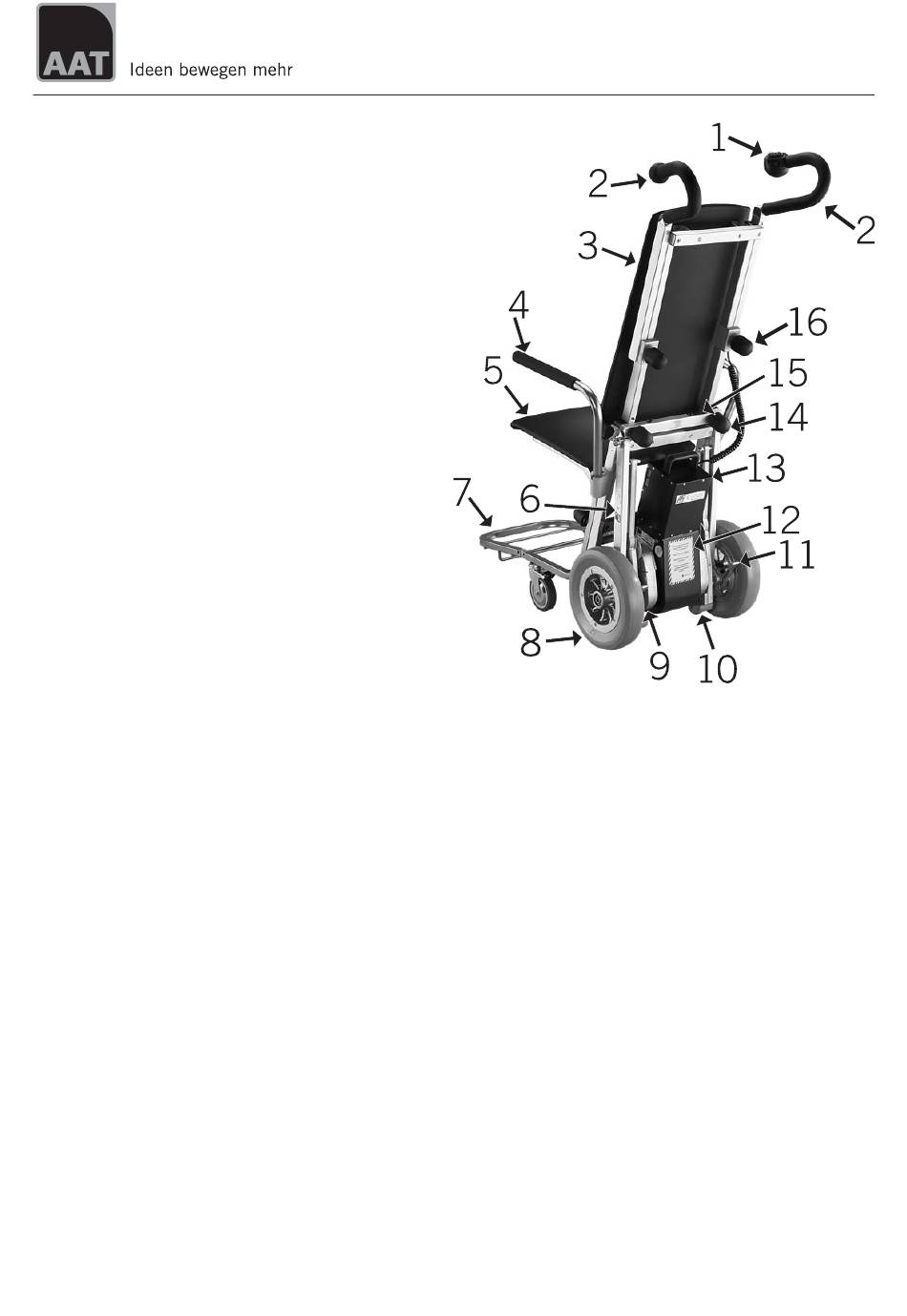

Features of the
1 = control unit
2 = handles, adjustable
3 = back rest
4 = arm rest, swivels out
5 = C-part plus seat
6 = climbing frame
7 = foot rest, folds in
8 = main wheel
9 = lever with chain drive
10 = climber and climbing foot
11 = safety brake
12 = climbing unit
13 = battery pack
14 = tightening knobs for the back rest
15 = single step switch
16 = tightening knob for the handle
7
