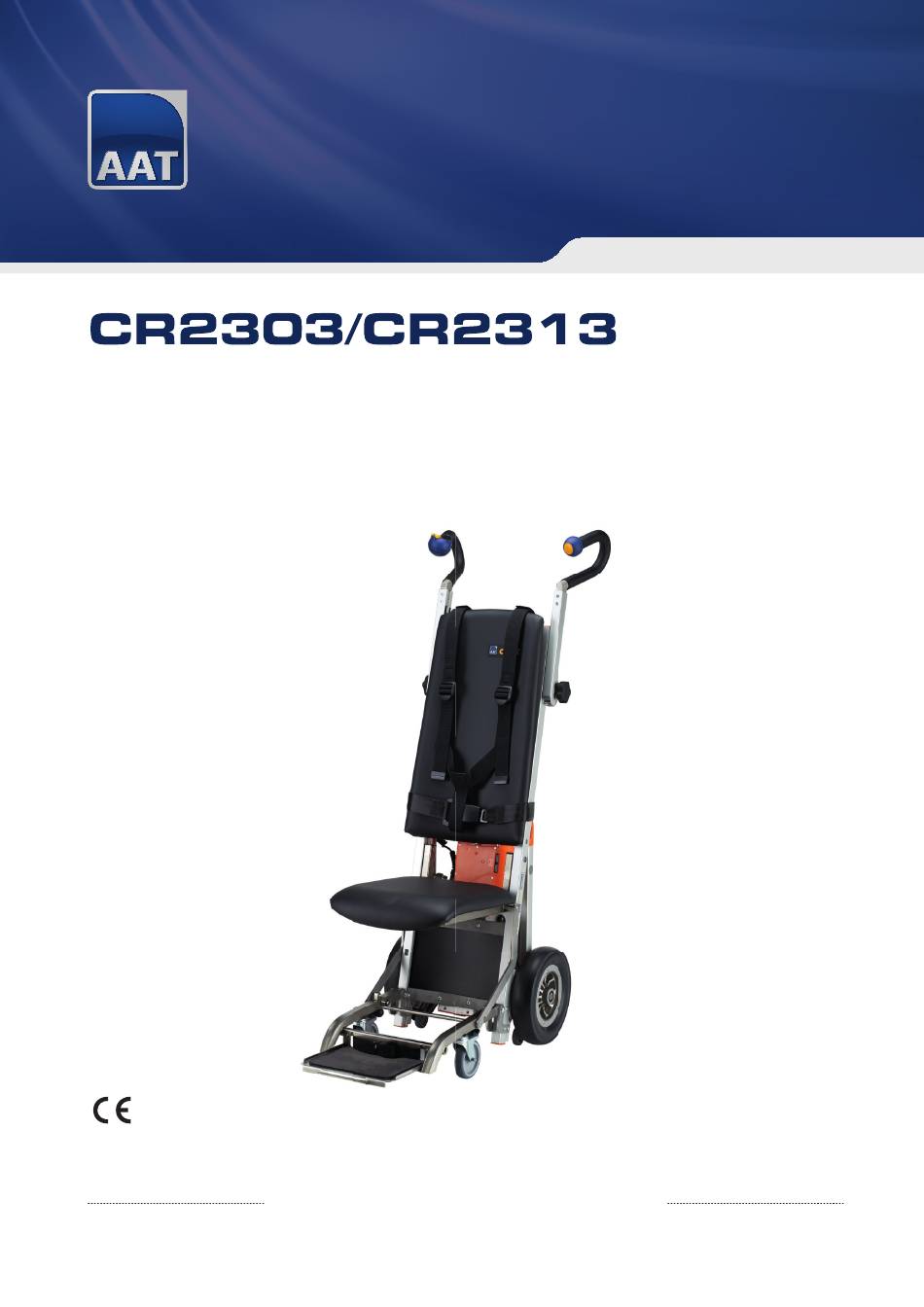

- Page 1 Ideen bewegen mehr www aat-online de Translation of the original user manual picture shows accessory 'seat belt system including a hip belt‘ 2019-01 (5.1)
- Page 2 Spare parts Show room exhibition devices With our professional service concept Repairs processing Re-use AAT proves once again its superior quality standards and off ers its clients Technical advice Complaints an all-inclusive package. Product seminars ...
- Page 3 WARNING Failure to observe this user manual, in particular the safety instructions, can lead to defects in the CR2303, endanger the operator and the occupant and impair function! There is an increased risk of injury! In the event of an infringement, claims for warranty and liability are excluded! People with visual and reading impairments or intellectual disabilities should print out the user manual available on the website in enlarged letters or have this manual read to them, if necessary.
-
Page 4: Table Of Contents
Technical data ..........11 Dimensional sketch CR2303/CR2313 ....... . 12 Scope of delivery . -
Page 5: Symbols And Safety Instructions
In the event of reading difficulties, training contents must be broadened verbally. The user manual must be kept in a safe place after reading. Contains some flammable materials. Keep the CR2303 away from sources of ignition. CR2303 can interfere with highly sensitive electromagnetic fields of other electronic devices (e.g. -
Page 6: Explanation Of The Symbols On The Package
Never touch rotating or moving parts to avoid crushing of fingers and hands! DANGER CR2303 must not be operated in the case of severe visual impairment and/or blindness! Do not exceed the approved total weight and the maximum person weight, as this may lead to... -
Page 7: Explanation Of The Symbols On The Device
Serial number of the product e. g. CR2303XXXXXX / CR2313XXXXXX Note on the user manual The user manual must be observed! www.aat-online.de 24 V - Electrical voltage / V = Volt Inspection plate for safety-engineering check (see Chapter 8 5) -
Page 8: Description Of The Product
Description of the product 4 1 Device overview Control unit Handle, adjustable Main wheel Lever with chain drive Climbers and climbing feet Safety brake Battery display Single step switch ComfortStep Battery pack Safety interlock of the battery pack (release button) LED to display the error codes Helix cable Tightening screw for the handle... - Page 9 Manufacturer‘s information: For a simplifi ed assignment of the individual components, the numbers listed here are cited in full for the fi rst time in the following chapters. Speed control Safety chip ON/OFF switch UP/DOWN switch Back rest LED for safe operation in lowlight situations C-part (with seat unit) Foot rest with feet belt Release button for the C-part with seat unit...
-
Page 10: Indication And Intended Use
Minors below the age of 16 are not allowed to operate the CR2303! Minors of at least 16 years are allowed to operate the CR2303, but only under supervision. Please bear in mind that the use of a stair climber can entail a greater degree of risk and requires more skills than those required to operate a wheelchair. -
Page 11: Technical Data
4 4 Technical data WARNING - The approved total weight may not be exceeded because it can lead to malfunction or cause an overload of the CR2303! NOTE - Observe the technical data. CR2303 / CR2313 Technology Height = min. 1287 mm - max. 1631 mm, Width = 446 mm... -
Page 12: Dimensional Sketch Cr2303/Cr2313
4 5 Dimensional sketch CR2303/CR2313 Maße nach ISO 7176- Winkel der Sitzfläche effektive Sitztiefe effektive Sitzbreite Höhe der Sitzfläche an der vord Rückenlehnenwinkel Rückenlehnenhöhe Abstand der Fußstütze zur S Gesamtlänge m. Fußstütze Gesamtlänge m. Fußstütze Gesamtbreite Länge zusammengekla Breite zusammengeklap Höhe zusammengeklap... -
Page 13: Scope Of Delivery
Battery pack with charging electronics and safety interlock CR2303/CR2313, incl. hip belt 4 7 Accessories NOTE – Only use AAT Alber Antriebstechnik GmbH accessories. Head rest, adjustable in height and depth Charging cable for your vehicle Widening of the seat Arm rests (adjustable in width) Seat belt system, incl. -
Page 14: Folding And Unfolding
Folding up To fold up the CR2303, first, flip up the foot rest. Then fold the C-part with seat unit upwards until the folding mechanism locks automatically. 5 2 Assemble the head rest (optional accessory) CAUTION - To ensure head stability, we recommend placing the head rest at the back of the occupant‘s head. -
Page 15: Pull Out The Telescopic Frame (Optional Accessory)
The stair climber is designed for operation by just one person. This person must be physically and mentally capable of safely operating the CR2303. Minors of at least 16 years may only operate the CR2303 under the constant supervision and instruction of an adult. -
Page 16: Adjust The Handles
6 1 Adjust the handles WARNING – Always tighten the locking screws, as otherwise parts can suddenly become loose! CAUTION - To avoid injury, beware of pinch points at the notch opening! Release the locking screws Adjust the height of the Tighten the locking screws. -
Page 17: Turning On The Device
6 3 Turning on the device Insert safety chip for the Turn CR2303 by pressing the ON/OFF engine immobiliser. » Safety chip must latch! switch 6 4 Neutral position Bring climbers into the Wrong. neutral position by pressing the UP/DOWN switch. -
Page 18: Checking The Safety Brakes
6 5 Checking the safety brakes DANGER - Do not use the CR2303, if the required braking eff ect (on one side or both sides) is not guaranteed because a reduced braking eff ect can lead to falling down the stairs! Contact... -
Page 19: Comfortstep
Manufacturer‘s information Due to the memory function the last setting is stored. Everytime you turn on the CR2303, the last used setting will be reproduced. Activate / deactivate Should you choose to turn off » LED glows = ComfortStep the ComfortStep, you can do... -
Page 20: Operation
WARNING - Always operate with both hands to avoid risky situations and to ensure a safe climbing process! WARNING - Do not use the CR2303 on wet, slippery or waxed stairs to avoid falling down the stairs! Carpeted stairs must be non-slippery! WARNING - The occupant’s arms should not dangle over the sides and may also not be... - Page 21 Attach the safety belts After seating the occupant, Pass the hip belt around the A foot belt around the attach the hip belt. body of the occupant. feet of the occupant helps to » The belt engages protect safeguarding automatically when it is person from uncontrolled inserted into the belt buckle.
-
Page 22: Drive On Level Ground / Overcoming Obstacles
» Retract climbers completely. obstacles if you want to over- come them. 7 3 Tilting the stair climbing system WARNING - Always tilt the CR2303 when driving on slopes or during the climbing process! Manufacturer’s recommendation: If you are not able to tilt... -
Page 23: Operation On A Slope
7.3. Drive downhill Drive forward to the edge of To slow down, you need to tilt a slope. the CR2303 a bit more, so that the safety brakes are activated. Drive uphill Please drive backwards up a slope. -
Page 24: Climbing - Upstairs
7.5. the spiral staircases to the technical data in chapter 4.4. Please note: The CR2303 must be repeatedly realigned with Never use the CR2303 on the spiral case during the climbing process, so that both wheels stairs that are not suitable are always in line with the edge of the step to be climbed next. -
Page 25: Climbing - Downstairs
NOTE - Observe the safety instructions in chapter 7! DANGER - As soon as the climbers assume the load, you feel tension in the handles. Hold the CR2303 lower briefl y to counteract this tension! Set in neutral position. Tilt the CR2303 and keep it in Roll the CR2303 forward »... -
Page 26: Laying The Device Down On The Stairs / Emergency Stop Function
» Keep the UP/DOWN switch » 1 - Release the UP/DOWN switch pressed until the climbers » 2 - Turn off the CR2303 by pressing the ON/OFF switch are retracted completely. » 3 - Pull out the safety chip for the engine immobilizer »... -
Page 27: Transportation
WARNING - Repairs and safety checks may only be performed by the manufacturer or authorized personnel! (see chapter 8.5) WARNING - The housing of the CR2303 may only be opened by the manufacturer or authorized personnel NOTE - We recommend a safety check every two years! The inspection plate provides information on the due date of the next technical safety test. -
Page 28: Battery Pack And Charger
8 1 Battery pack and charger CAUTION - Protect the CR2303 against humidity and never touch it with moist hands! This prevents electrical shocks as well as malfunctions! NOTE - Charge the batteries after each use. NOTE - Protect the charger and the voltage converter from oils, grease, aggressive cleaning agents, thinners or damage! NOTE - Follow the user manual of the charger and the voltage converter. - Page 29 Charge batteries in a vehicle Turn off the CR2303 Attach the voltage converter. Turn on the voltage converter. Connect the CR2303 via the Audio warning = voltage low! charger. LED is orange = batteries are LED is green = batteries are charging.
-
Page 30: Check The Lining Of The Brakes, Climbing Feet And Gilding Strips
NOTE - Minimum brake lining thickness = 1 mm. Should the lining be thinner or damaged, contact the manufacturer or authorized personnel! NOTE - If the foot lining is worn or broken, please have both climbing feet replaced by AAT Alber Antriebstechnik GmbH or your authorized dealer. -
Page 31: Replacing Fuses
A re-use is referred, if the AAT product of patient X is transmitted to patient Y. The CR2303 is suitable for re-use. We recommend a safety check as well as a cleaning/desinfection, if the CR2303 goes to a new user. (see chapter 8.3 and 8.5) -
Page 32: Recycling
Please note, the WEEE-guideline is not applicable in all European countries. 8 8 Long-term storage If your CR2303 will be stored for a longer period of time (e. g. for a few months), please ensure the following: » Protect the CR2303 from rain or moisture. - Page 33 Check and potential solution Is the helix cable inserted and locked? No: Insert helix cable into its socket and lock it. Is the charger connected to the CR2303? Yes: Disconnect the charging cable. CR2303 cannot be turned on Are the batteries empty? Yes: Charge the batteries.
-
Page 34: 10 Warranty And Liability
We will inform our authorized personnel in writing about the affected serial numbers. If your CR2303 is part of a product recall, you will be informed about the process to be followed. - Page 35 Use of the arm rests (optional accessory) » The two arm rests of the CR2303 serve not only as arm rests for the occupant, but also as a lateral boundary. » They should not be loaded with more than 90 kg per side.
- Page 36 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · D-72426 Albstadt Tel.: +49.(0) 74 31.12 95-0 Fax: +49.(0) 74 31.12 95-35 info@aat-online.de · www.aat-online.de Serial number...
