152-388-100-02, Issue 2
Fuse Alarm
Pin 117 on the card-edge connector is a fuse alarm that is driven to -48 Vdc through a diode whenever its onboard
fuse opens.
C
P
RAFT
ORT

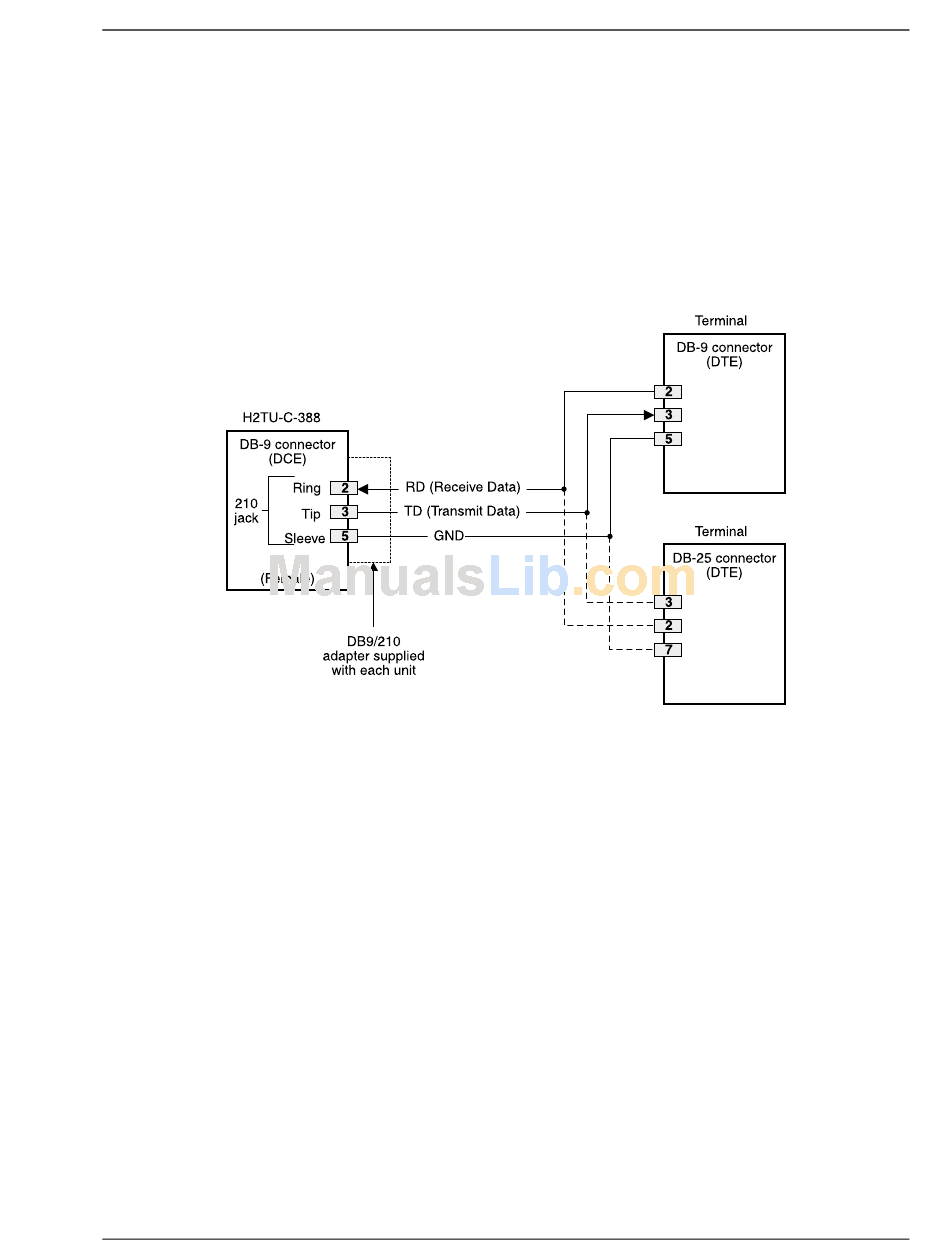

Figure 29
shows the craft port adapter and its connection to a DB-9 or DB-25 connector on a maintenance
terminal.
H2TU-C-388 List 1
Figure 29. 210-to-DB-9 Adapter
June 6, 2000
Appendix A - Specifications
51
