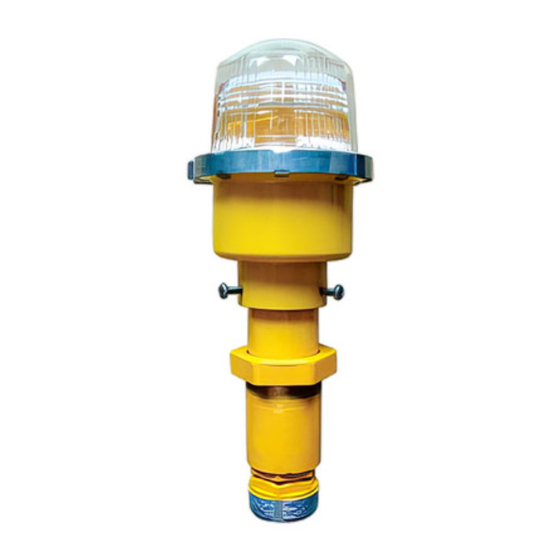

ADB Safegate L-862E User Manual

High intensity runway/threshold lights
Hide thumbs
Table of Contents

Advertisement

Quick Links

ERET-CB Incandescent Elevated Runway Edge/Threshold Light
HIGH-INTENSITY, CLAMP BAND
User Manual
96A0195, Rev. N, 2019/07/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-862E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADB Safegate L-862E

Summary of Contents for ADB Safegate L-862E

  • Page 1 ERET-CB Incandescent Elevated Runway Edge/Threshold Light HIGH-INTENSITY, CLAMP BAND User Manual 96A0195, Rev. N, 2019/07/19...
  • Page 3 Where applicable, per FAA EB67 (applicable edition), ADB SAFEGATE L858(L) Airfield Guidance Signs are warranted against electrical defects in design or manufacture of the LED or LED specific circuitry for a period of 4 years. ADB SAFEGATE LED light fixtures (with the exception of obstruction lighting) are warranted against mechanical and physical defects in design or manufacture for a period of 12 months from date of installation;...
  • Page 4 This manual could contain technical inaccuracies or typographical errors. ADB SAFEGATE BVBA reserves the right to revise this manual from time to time in the contents thereof without obligation of ADB SAFEGATE BVBA to notify any person of such revision or change. Details and values given in this manual are average values and have been compiled with care. They are not binding, however, and ADB SAFEGATE BVBA disclaims any liability for damages or detriments suffered as a result of reliance on the information given herein or the use of products, processes or equipment to which this manual refers.

  • Page 5: Table Of Contents

    2.1 About this manual........................................5 2.2 How to work with the manual....................................5 3.0 Introduction .....................................7 3.1 Incandescent Elevated Runway Edge/ Threshold Light..........................9 3.2 L-862/L-862E Light Fixture: Required Equipment ............................10 3.3 Specifications..........................................11 3.3.1 Lamp ..........................................11 4.0 Installation ..................................... 13 4.1 Introduction..........................................13 4.2 Unpacking............................................13...
  • Page 6 ERET-CB Incandescent Elevated Runway Edge/Threshold Light TABLE OF CONTENTS Copyright ADB Safegate, All Rights Reserved ©...

  • Page 7: Safety

    1.0 Safety Introduction to Safety This section contains general safety instructions for installing and using ADB SAFEGATE equipment. Some safety instructions may not apply to the equipment in this manual. Task- and equipment-specific warnings are included in other sections of this manual where appropriate.

  • Page 8: Introduction To Safety

    Using this equipment in ways other than described in this manual may result in personal injury, death or property and equipment damage. Use this equipment only as described in this manual. Failure to follow this instruction can result in serious injury or equipment damage Copyright ADB Safegate, All Rights Reserved ©...

  • Page 9: Material Handling Precautions: Storage

    The tip of the soldering iron must be grounded. • Electronic modules and components must be stored and transported in conductive packing. Failure to follow this instruction can result in equipment damage 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 10: Arc Flash And Electric Shock Hazard

    • Allow only qualified personnel to perform maintenance, troubleshooting, and repair tasks. • Only persons who are properly trained and familiar with ADB SAFEGATE equipment are permitted to service this equipment. • An open airfield current circuit is capable of generating >5000 Vac and may appear OFF to a meter.

  • Page 11: Incandescent Elevated Runway Edge/Threshold Light

    This section describes the L-862/L-862E high intensity runway/threshold lights. The ADB Airfield Solutions L-862 white-white, white-yellow, red-blue, or white-red light fixture is used for runway edge lighting. The L-862E light fixture with red-green, red- red, or green-green outer globe is used for runway threshold and runway end lighting.
  • Page 12 ERET-CB Incandescent Elevated Runway Edge/Threshold Light Incandescent Elevated Runway Edge/Threshold Light Copyright ADB Safegate, All Rights Reserved ©...

  • Page 13: Introduction

    This section describes the L-862/L-862E high intensity runway/threshold lights. The ADB Safegate L-862 white-white, white- yellow, red-blue, or white-red light fixture is used for runway edge lighting. The L-862E light fixture with red-green, red-red, or green-green outer globe is used for runway threshold and runway end lighting.
  • Page 14 ERET-CB Incandescent Elevated Runway Edge/Threshold Light Introduction Figure 3: Cutaway View of L-862/L-862E Light Fixture The cast aluminum head and base assembly can be mounted on a standard L-867 base plate or on a steel stake. Base mounting is easier to maintain and provides added protection for the equipment. Stake-mounted lights require transformers, cables, and connectors that are designed for direct earth burial.

  • Page 15: Incandescent Elevated Runway Edge/ Threshold Light

    3.1 Incandescent Elevated Runway Edge/ Threshold Light Compliance with Standards FAA: L-862 and L-862E AC 150/5345-46 (Current Edition). ETL Certified. Uses FAA L-862 • Runway edge • Precision approach runways FAA L-862E • Runway threshold/end • Precision approach runways Features •...

  • Page 16: L-862/L-862E Light Fixture: Required Equipment

    Refer to the Parts section for ordering information. Table 2: Required Equipment Supplied Description Quantity L-862/L-862E light fixture (includes lamp, column, frangible coupling, and L-823 cordset) Instruction manual 1 per order Copyright ADB Safegate, All Rights Reserved...

  • Page 17: Specifications

    LAMP, 150W 44A2071/4XXX 48A0145 LAMP, 200W 44A2071/5XXX 48A0380 LAMP, 100W, PKX30d 3.3 Specifications This subsection provides specifications for the L-862/L-862E light fixtures. 3.3.1 Lamp Refer to Table Rated Lamp Life 500 hours (minimum) 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved...
  • Page 18 ERET-CB Incandescent Elevated Runway Edge/Threshold Light Introduction Copyright ADB Safegate, All Rights Reserved ©...

  • Page 19: Installation

    Using this equipment in ways other than described in this manual may result in personal injury, death or property and equipment damage. Use this equipment only as described in this manual. 4.1 Introduction This section provides instructions for installing the L-862/L-862E light fixture. Refer to the airport project plans and specifications for the specific installation instructions. 4.2 Unpacking The equipment is shipped ready for installation.

  • Page 20: Placement

    The L-862E runway threshold light fixtures are located perpendicular to the runway centerline and parallel to the displaced threshold. The L-862E runway end light fixtures are located perpendicular to the runway centerline and parallel with the end of the runway.

  • Page 21: Base Mounting

    3. Level the light base so that the mounting flange surface is level with the finished grade. 4. With the base at the proper orientation and held at proper elevation, place approximately 4 inches (10.16 cm) of concrete backfill around the outside base. 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 22 Phillips head screws in the lower casting. 15. See Figure 6 . Place the outer globe on the fixture, and check for outer globe and inner lens direction. Copyright ADB Safegate, All Rights Reserved ©...
  • Page 23 Always make sure that the colored lens location is in compliance with the airport project plans and specifications. Figure 6: Outer Globe and Inner Lens Direction 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 24: Stake Mounting

    Cover the top surface with an impervious material to reduce moisture penetration. Copyright ADB Safegate, All Rights Reserved ©...
  • Page 25 1/4–20 x 3/4-in. hex head screw and 1/4-in. split lockwasher. Note The small hole at the lower end of the stake is provided for counterpoise wire connection. 5. Install the light fixture on the stake. 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 26 ERET-CB Incandescent Elevated Runway Edge/Threshold Light Installation Copyright ADB Safegate, All Rights Reserved ©...

  • Page 27: Maintenance

    5.0 Maintenance Warning Allow only qualified personnel to perform maintenance, troubleshooting, and repair tasks. • Only persons who are properly trained and familiar with ADB Safegate equipment are permitted to service this equipment. • Disconnect and lock out electrical power.
  • Page 28 Make prediction of heavy snowfall, if Use red flags or sticks to mark the location of fixtures to facilitate snow Unscheduled necessary. removal and lessen the chance of damage to fixtures by snow removal equipment. Copyright ADB Safegate, All Rights Reserved ©...

  • Page 29: Troubleshooting

    Use tools with insulated handles when working with electrical equipment. This section contains troubleshooting information. This information covers only the most common problems that you may encounter. If you cannot solve the problem with the information given here, contact your local ADB Safegate representative for help.
  • Page 30 Touching quartz lamps with bare fingers may seriously shorten lamp life. If the quartz lamp has been touched, clean the lamp with tissue moistened with isopropyl alcohol. 5. Reinstall the inner lens segments and outer globe by reversing the removal procedure. Copyright ADB Safegate, All Rights Reserved ©...

  • Page 31: Parts

    7.0 Parts To order parts, call ADB Safegate Customer Service or your local representative. Use this five-column parts list, and the accompanying illustration, to describe and locate parts correctly. L-862 Ordering Code 44A2071 - X X X X Lamp 0 = None 1 = 120 W/6.6 A Quartz...

  • Page 32: 44A2071- X 1 X X

    ERET-CB Incandescent Elevated Runway Edge/Threshold Light Parts Figure 10 shows how to determine the part number for a particular L-862E light fixture. Table 7: Lamp use Assembly Order Code Lamp Part Number Lamp Description 44A2071/0XXX NO LAMP 44A2071/1XXX 48A0069 LAMP, 120W...
  • Page 33 HEAD ASSY FOR 30" OAH 44A2071/XX3X 44A2071/XX9X 62A0007/23 23 1/4" COLUMN FOR 30" OAH 44A6241/1 L862Q HEAD ASY 14" OAH PK30d LAMP 44A2071/XXAX 62A0007/7 7 1/4" COLUMN FOR 14" OAH 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 34 OUTER LENS, RED/CLEAR, RH 44A2071/XXXB 63A1057/2 OUTER LENS, CLEAR/RED, LH 44A2071/XXXC 63A1105/1 OUTER LENS, YELLOW/GREEN, RH 44A2071/XXXD 63A1105/2 OUTER LENS, YELLOW/GREEN, LH 44A2071/XXXE 63A1105/3 OUTER LENS, RED/YELLOW, RH 44A2071/XXXF 63A1105/4 OUTER LENS, RED/YELLOW, LH Copyright ADB Safegate, All Rights Reserved ©...
  • Page 35 30" OAH, 1-1/2" COUPLING 44A2071/XX7X 61A0281/SPARE 14" OAH, 2" COUPLING 44A2071/XX8X 61A0281/SPARE 24" OAH, 2" COUPLING 44A2071/XX9X 61A0281/SPARE 30" OAH, 2" COUPLING 44A2071/XXGX 61A0350/SPARE 14" OAH, 2" 11 TPI COUPLING 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 36: Socket Mounting Plate Assembly Parts List

    ERET-CB Incandescent Elevated Runway Edge/Threshold Light Parts Figure 10: L-862E Light Fixture Ordering Code 7.2 Socket Mounting Plate Assembly Parts List Figure 11 . The socket mounting plate assembly part number is 44A2089. Item Description Part Number Quantity Filter clip, L-862...

  • Page 37: Optional Stake Assembly Parts List

    . The stake assembly part number is 44B0348. Item Description Part Number Quantity Stake hub 62B0268-1 Hex head screw, 3/8–16 x 3/4 in. 64A0176-12 Split lockwasher, 3/8 in. 66A0026-29 Stake 62B0284 96A0195, Rev. N, 2019/07/19 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 38: L-867 Base Plate Parts List

    Figure 12: Stake Assembly 7.4 L-867 Base Plate Parts List Refer below for the L-867 base plate parts list. Part Number Description Quantity Note 1935 12-inch-diameter base plate, 1.5–12 UNF tap NOTE A: Supplied with gasket. Copyright ADB Safegate, All Rights Reserved ©...

  • Page 39: Recommended Spare Parts

    Wire grommet 63A0042-4 Notes Contact the ADB SAFEGATE Sales Department for additional details on this application Slot across threaded end allows easy replacement of broken frangible coupling See Ordering Code for ETL Certification Color and/or color configuration not recognized by the FAA 96A0195, Rev.
  • Page 40 ERET-CB Incandescent Elevated Runway Edge/Threshold Light Parts Copyright ADB Safegate, All Rights Reserved ©...

  • Page 41: Support

    Table 14: ADB SAFEGATE Support Live Technical Support - Americas If at any time you have a question or concern about your product, just contact ADB SAFEGATE’s technical service department. Trained in all areas of system issues, troubleshooting, quality control and technical assistance, our highly experienced Technical support specialists are available 24 hours a day, seven days a week to provide assistance over the phone.

  • Page 42: Recycling

    A.2.1 Local authority recycling The disposal of ADB SAFEGATE products is to be made at an applicable collection point for the recycling of electrical and electronic equipment. The correct disposal of equipment prevents any potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling.
  • Page 43 Tel.: +46 (0)40 699 17 00, Internet: www.adbsafegate.com Fax: +46 (0)40 699 17 30 ADB SAFEGATE Airfield Technologies Ltd. China ADB SAFEGATE, China: Unit 603, D Block, CAMIC International Convention Center, No 3, Hua Jia Di East road, ChaoYang district, Beijing 100102 P.R.
