HunterDouglas Design Studio Installation Operation Care
Easyrise, ultraglide, and literise lifting systems roman shades
Hide thumbs
Also See for Design Studio:
- Installation manual (34 pages) ,
- Installation operation care (16 pages) ,
- Installation operation care (16 pages)
Related Manuals for HunterDouglas Design Studio
Summary of Contents for HunterDouglas Design Studio

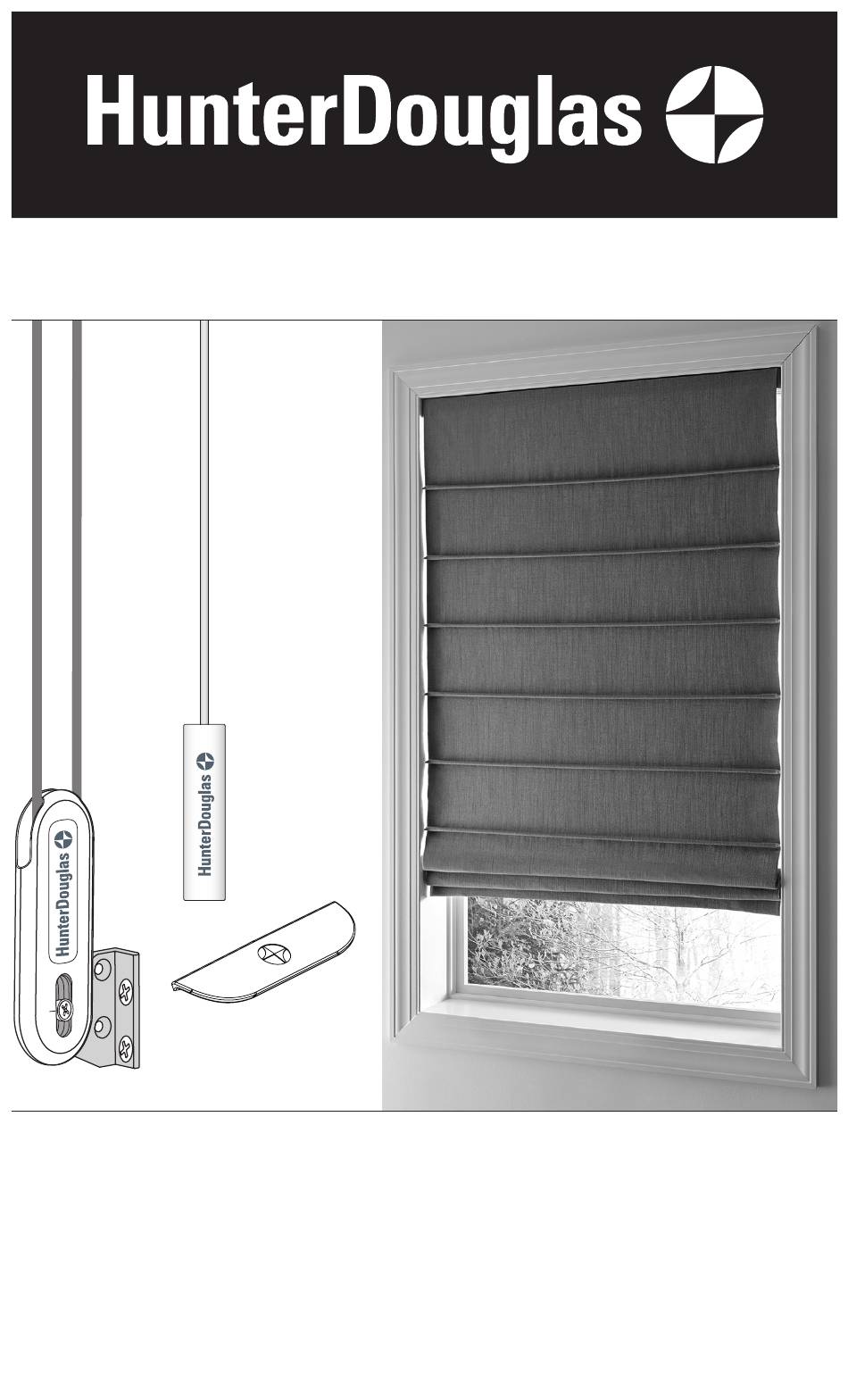

- Page 1 Installation • Operation • Care Design Studio Roman Shades ™ EasyRise ,UltraGlide , and LiteRise ™ ® ® Lifting Systems...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ................1 Product View—EasyRise ™ .................2 Product View—UltraGlide ® ................3 Product View—LiteRise ® Product View—Optional Valance ..............4 Tools and Fasteners Needed ...............5 INSTALLATION Installation Overview ...................6 Mount Installation Brackets — Inside Mount without Valance ....7 Mount Installation Brackets — Inside Mount with Optional Valance ..8 Mount Installation Brackets —... -
Page 3: Getting Started
GETTING STARTED Product View—EasyRise ™ Dust Cover (Optional) Extension Dust Cover Bracket Hook-and-Loop Strips (Optional) Installation Bracket Fabric Covered End Cap Cord Loop Cord Tensioner Bracket... -
Page 4: Product View-Ultraglide
GETTING STARTED Product View—UltraGlide ® Dust Cover (Optional) Extension Dust Cover Bracket Hook-and-Loop Strips (Optional) Plastic Installation End Cap Bracket Fabric Covered Headrail Cord Tassel... -
Page 5: Product View-Literise
GETTING STARTED Product View—LiteRise ® Dust Cover (Optional) Extension Dust Cover Bracket Hook-and-Loop Strips (Optional) Plastic Installation End Cap Bracket Fabric Covered Headrail Handle... -
Page 6: Product View-Optional Valance
GETTING STARTED Product View—Optional Valance Valance Headboard Components for Optional Valance Hook-and-Loop Attachment Valance L-Bracket* Valance Fabric Return* *Outside mounts only. Returns shown here on both sides. Left return only and right return only can be specified. Inside mount valances do not have returns. -
Page 7: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Design Studio Roman shades. With proper ™ installation, operation and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and enclosed packing list before beginning the installation. -
Page 8: Installation
INSTALLATION Installation Overview ■ Installation brackets. The number Shade Brackets of brackets required varies with Width Required shade width. 15" – 30" ∕ " – 54" Installation ∕ " – 78" Bracket ∕ " – 96" Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process follows very easily. -
Page 9: Mount Installation Brackets - Inside Mount Without Valance
INSTALLATION Mount Installation Brackets — Inside Mount without Valance ■ Mark 3" in from each jamb. ➤ If more than two installation brackets came with your order, space additional bracket(s) evenly between the two end brackets and mark their location. Mount into wood whenever possible. -
Page 10: Mount Installation Brackets - Inside Mount With Optional Valance
INSTALLATION Mount Installation Brackets — Inside Mount with Optional Valance With the optional valance, first the valance headboard is mounted inside the casement and then the installation brackets are mounted to the valance headboard. ■ Locate the valance headboard inside the window casement. Position the headboard against the head jamb. -
Page 11: Mount Installation Brackets - Outside Mount Without Valance
INSTALLATION Mount Installation Brackets — Outside Mount without Valance ■ Center the headrail above the window opening at the desired height. Use a pencil to lightly mark where its ends are located. ➤ Alternatively, measure the width of the headrail and use this measurement to determine where the ends of the headrail will be located. -
Page 12: Mount Installation Brackets - Outside Mount With Optional Valance
INSTALLATION ■ Attach the installation brackets or extension brackets to the mounting surface. CAUTION: The rear of the installation brackets must be flush against a flat mounting surface. Do not mount installation brackets on curved molding. ∕ ∕ ➤ Use the 1 "... - Page 13 INSTALLATION ■ Center the L-brackets on your marks and mark the screw holes. ➤ The top of the L-brackets should be 1" below the height where you want the top of the valance to be located. ➤ The rear of the L-brackets must be flush against a flat mounting surface. Do not mount L-brackets on curved molding.
-
Page 14: Install The Shade
INSTALLATION Install the Shade ■ If an optional dust cover was ordered (outside mount with no valance only), attach hook-and-loop strips to the top of the headrail. Install the strips 1½" from each end of the headrail and midway between installation bracket mounting locations. ➤... -
Page 15: Attach The Valance Fabric (If Applicable)
INSTALLATION Attach the Valance Fabric (If Applicable) ■ Center the valance fabric in front of the valance headboard. Press the strip of hook-and- loop material on the fabric to the hook-and-loop material on the front of the headboard. ➤ Be sure the top of the valance fabric is aligned and level with the top of the valance headboard. -
Page 16: Attach The Universal Cord Tensioner (Uct)
INSTALLATION Attach the Universal Cord Tensioner (UCT) Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop. Universal ■ Insert a small screwdriver, punch, or awl through the Cord screw hole at the bottom of the cord tensioner. Tensioner ■... -
Page 17: Operation
OPERATION Operate the Shade UltraGlide Lifting System ® For smooth operation, keep the cord close to the fabric when lowering and raising the shade. To Lower the Shade ■ Pull the cord toward the center of the shade at about a 45°... - Page 18 OPERATION EasyRise Lifting System ™ ■ Pull the rear cord to lower the shade. ■ Pull on the front cord to raise the shade IMPORTANT: If the cord tensioner moves up the cord, you have not secured it to the wall or window frame. You must do so for the shade to operate properly.
-
Page 19: Troubleshooting
OPERATION Troubleshooting Problem The shade will not fit into the installation brackets. Solution Check that the front edges of all installation brackets are aligned and on the same level. Problem The valance fabric is not level. Solution Carefully detach the fabric from its hook-and-loop attachment and re-position it. Problem The shade raises unevenly. - Page 20 Side-by-side shades must be specified on the order form. In order to achieve custom shade heights for Hunter Douglas Design Studio ™ Roman shades, spacing from the top of the shade to the first batten or fold may be more or less than the consistent spacing between battens or folds on the rest of the shade.
-
Page 21: Care
Push Up Release Using Headrail Finger or Flat Blade Screwdriver Dressing Design Studio Roman Shades ™ ■ After installation. Allow shades to hang fully lowered for a few days to let wrinkles fall out. ■ “Dressing” refers to easing the fabric into soft folds across the shade to create a uniform appearance. -
Page 22: Child Safety
CHILD SAFETY WARNING For more safety information, call 1-800-997-2389. Warning ■ Window Blind Cord Can STRANGLE Your Child. ■ Children can climb furniture to reach cords. Move crib and furniture away. ■ Keep all cords out of children’s reach. Cord Loop Shades ■... - Page 24 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
