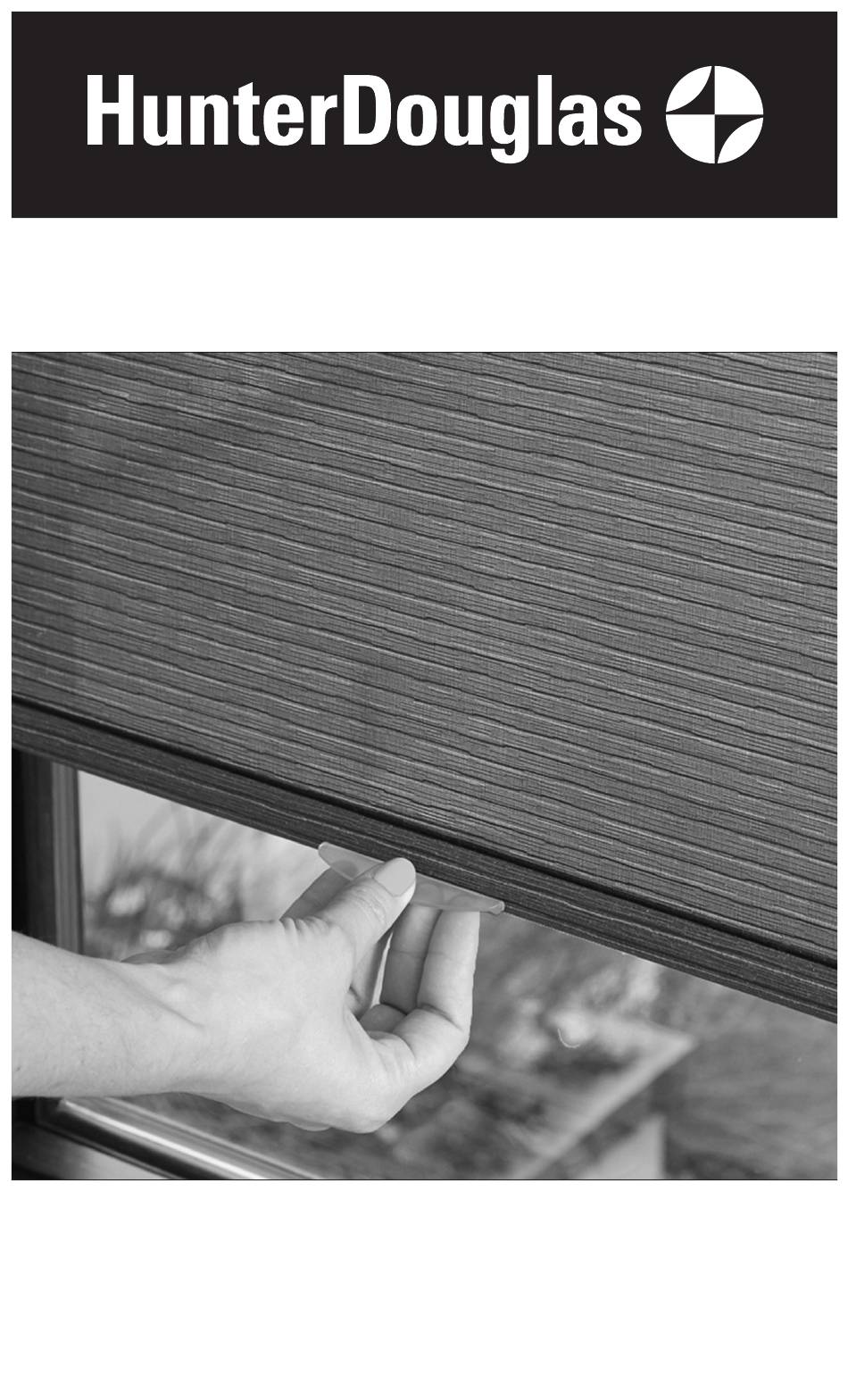

- Page 1 Installation Operation Care • • Designer Roller and Designer Screen Shades Standard and Cassette LiteRise Systems ®...
-
Page 2: Table Of Contents
CONTENTS Getting Started: Product View — Standard ..................1 Product View — Cassette ..................2 Tools and Fasteners Needed .................. 3 Installation Overview ..................... 3 Installation: Mount the Installation Brackets — Inside/Ceiling Mount for Standard Shades ... 5 Mount the Installation Brackets — Outside Mount for Standard Shades ....6 Mount the Installation Brackets —... -
Page 3: Getting Started
GETTING STARTED Product View — Standard Mounting Profile Brackets Right Side Holder Left Side Holder Roller Tube Fabric Handle Bottom Bar End Cap Bottom Bar Magnetic Standard Hold-Down Hold-Down Bracket Bracket (Optional) (Optional) -
Page 4: Product View - Cassette
GETTING STARTED Product View — Cassette Cassette Installation Brackets Cassette Fabric Bottom Bar Bottom Bar End Cap Handle Standard Magnetic Hold-Down Hold-Down Bracket Bracket (Optional) (Optional) -
Page 5: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Designer Roller and Designer Screen Shades. With proper installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and packing list before beginning the installation. -
Page 6: Installation
INSTALLATION Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process will follow easily. To prepare for this important first step, review the mounting types and basic window terminology illustrated below. Molding Head Jamb Jamb Jamb... -
Page 7: Mount The Installation Brackets - Inside/Ceiling Mount For Standard Shades
INSTALLATION Mount the Installation Brackets — Inside/Ceiling Mount for Standard Shades IMPORTANT: To ensure each bracket is mounted properly, the white tab should be toward the room. Mark 1 " to 3" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤... -
Page 8: Mount The Installation Brackets - Outside Mount For Standard Shades
INSTALLATION Mount the Installation Brackets — Outside Mount for Standard Shades IMPORTANT: To ensure each bracket is mounted properly, the white tab should be at the bottom. Center the mounting profile over the window opening at the desired height. Use a pencil to ■... -
Page 9: Mount The Installation Brackets - Inside/Ceiling Mount For Cassette Shades
INSTALLATION Mount the Installation Brackets — Inside/Ceiling Mount for Cassette Shades Mark 2" in from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark their location. Mount into wood whenever possible. -
Page 10: Mount The Installation Brackets - Outside Mount For Cassette Shades
INSTALLATION Mount the Installation Brackets — Outside Mount for Cassette Shades Center the cassette over the window opening at the desired Concord, North Carolina height. ■ Use a pencil to lightly mark each end of the cassette. Alternatively, measure the width of the cassette and use that width to mark the cassette ➤... -
Page 11: Install The Shade
INSTALLATION Install the Shade Standard Installation The groove on the top of the mounting profile fits into the hooks on the installation brackets. Inside or Ceiling Mount Outside Mount Hook Hook Bracket Bracket Mounting Mounting Profile Profile Hold the shade so the bottom bar fabric side faces you. ■... -
Page 12: Attach The Standard Hold-Down Brackets (Optional)
INSTALLATION Attach the Standard Hold-Down Brackets (Optional) Hold-down brackets provide stability and prevent swaying by securing the bottom rail, for example in French door applications. Standard hold-down brackets can only be used on outside mount shades. Lower the shade and place the pins from the hold-down ■... -
Page 13: Attach The Magnetic Hold-Down Brackets (Optional)
INSTALLATION Attach the Magnetic Hold-Down Brackets (Optional) Lower the shade. ■ Place the magnetic hold-down bracket onto the bottom rail just ■ Bottom Rail inside the end cap, oriented as shown. Hold the bracket while opening and closing the shade slightly ■... -
Page 14: Operation
OPERATION Operate the Shade For better support and smoother operation, use the handle when raising and lowering the shade. To Lower the Shade Slowly and steadily pull down on the bottom ■ rail handle. To Raise the Shade Slowly and steadily push up on the bottom ■... -
Page 15: Troubleshooting
OPERATION Troubleshooting Problem The shade does not roll up, or it rolls too slowly. Solution Check that the shade is being raised straight up and is not skewing the fabric against the cassette end plate or profile side holder. If this is not the case, you can adjust by: Adding Spring Tension Locate the adjustable bracket or end cap. - Page 16 OPERATION Problem Shade will drift up once stopped. Solution Removing Spring Tension Locate the adjustable bracket or end cap. ■ If fabric is coming off the back of the shade, it will be the right side. ➤ If fabric is coming off the front of the shade, it will be the left side. ➤...
-
Page 17: Care
Cleaning Procedures Designer Roller and Designer Screen Shades are made from anti-static, dust-resistant materials which repel dirt and dust. The following options are available if your shade needs cleaning. Dusting Regular light dusting with a feather duster is all the cleaning needed in most circumstances. - Page 18 Notes...
- Page 20 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
