HEIGHT AND TOP ADJUSTMENT

3.5.1 Electric Models: Height Adjustment

Remove the pendant from pendant holder, (see
Section 3.4.1, Pendant Control ).

Raising the Height

Press the first button on the third row of buttons
on the pendant (Figure 3-7); hold until the
desired height is achieved.

Lowering the Height

Press the second button on the third row of
buttons on the pendant (Figure 3-8); hold until
the desired height is achieved.
s NOTICE: Place pendant in holder when not
in use. Keep cord clear of moving parts.
3.5.2 Electric Models: Foot Section
Adjustment

Raising the Foot Section

Press the first button on the second row of
buttons on the pendant (Figure 3-9); hold until
the desired angle is achieved.

Lowering the Foot Section

Press the second button on the second row of
buttons on the pendant (Figure 3-10); hold until
the desired angle is achieved.
3.5.3 Electric Models: Back Section
Adjustment

Raising the Back Section

Press the first button on the first row of buttons
on the pendant (Figure 3-11); hold until the
desired incline is achieved.

Lowering the Back Section

Press the second button on the first row of
buttons on the pendant (Figure 3-12); hold until
the desired recline is achieved.
APC-US-INS-LAB-RevC18

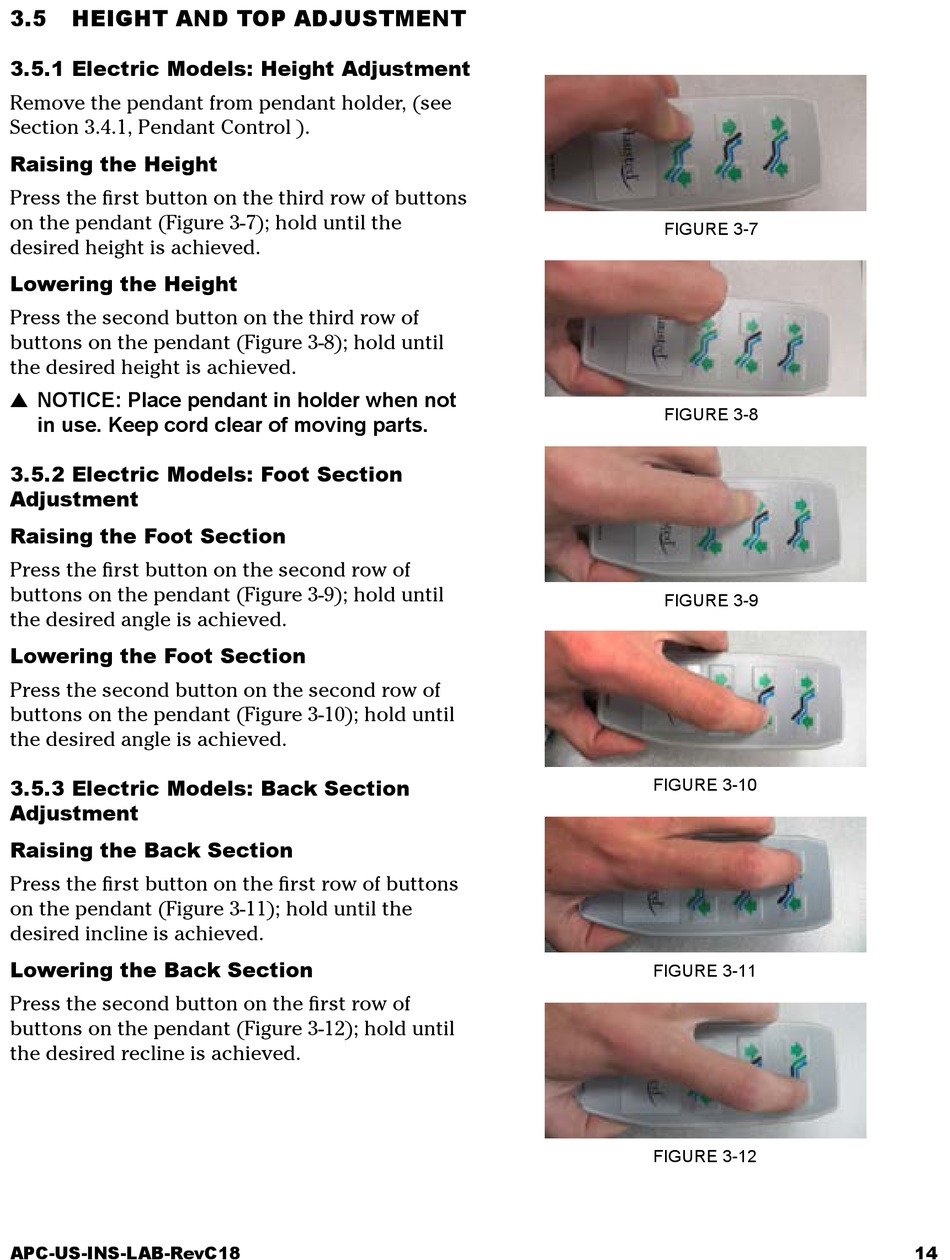

FIGURE 3-7
