Vivo STAND-V002K Series Assembly Manual
Mechanical arm dual monitor desk mount
Hide thumbs
Also See for STAND-V002K Series:
- Assembly manual (16 pages) ,
- Instruction manual (9 pages) ,
- Instruction manual (9 pages)
Related Manuals for Vivo STAND-V002K Series
Summary of Contents for Vivo STAND-V002K Series

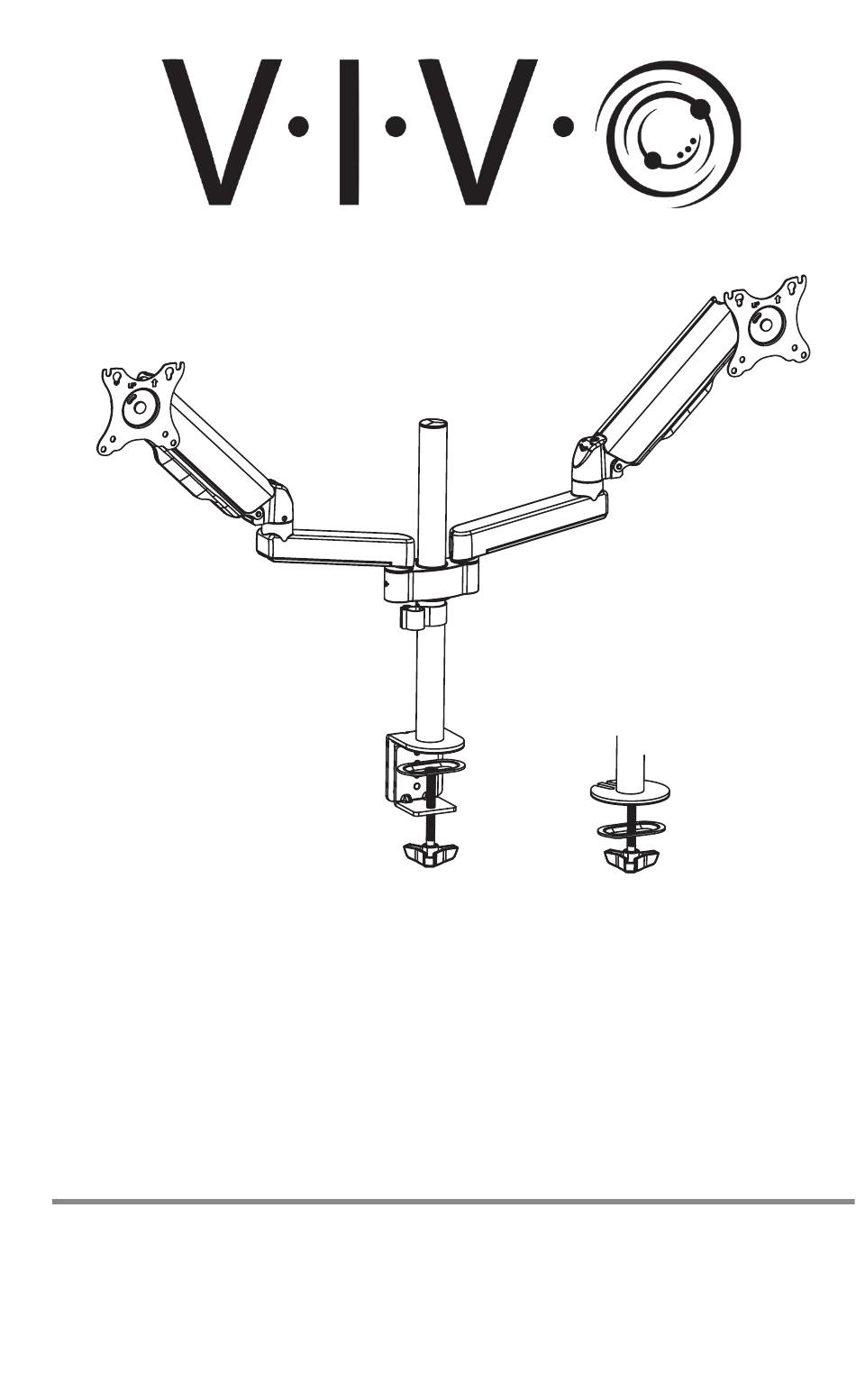

- Page 1 Mechanical Arm Dual Monitor Desk Mount STAND-V002K Series Assembly Manual Individual Product SKUs STAND-V002K STAND-V002KW...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x2) B (x2) C (x1) D (x1) Lower Arm Upper Arm Pole Clamp E (x1) F (x1) G (x1) H (x2) Arm Support Cable Clip Pole Cap VESA Plate I (x1) J (x1) Grommet Soft Pad Plate Included Hardware &... -
Page 5: Assembly Steps
Assembly Steps STEP 1 Fully loosen the knob on Clamp (D). STEP 2 - Option 1 - Clamp Installation For desktops 0.4-3.3”(10-85mm) thick *For Option 2 - Grommet Installation, go to Page 6 0.4-3.3” (10-85mm) Attach Clamp Assembly to desktop Attach Clamp (D) to Pole (C) using and secure by tightening the knob on M6x16mm Screws (S-A) and 3mm... - Page 6 - Option 2 - Grommet Installation For desktops 0.4-2.9”(10-75mm) thick Disassemble the Clamp (D) using a Phillips screwdriver. Set aside Clamp Bolt (D1) and Clamp Plate (D2). Attach Grommet Plate (I) to Pole (C) Remove adhesive backing from Soft Pad (J) using M6x16mm Screws (S-A) and and apply to Grommet Plate (I), as shown.
- Page 7 STEP 3 Slide Cable Clip (F) and Arm Support (E) onto Pole (C) at desired positions, and press Pole Cap (G) into top of Pole. Secure Arm Support with 5mm Allen Wrench (T-C). STEP 4 Slide Cable Cover off of Lower Arm (A). Cable Cover...
- Page 8 STEP 5 Place Lower Arms (A) into Arm Support (E), securing with the flat head end of 4mm Allen Wrench (T-B). STEP 6 Place Upper Arms (B) into Lower Arms (A), securing with the flat head end of 4mm Allen Wrench (T-B).
- Page 9 STEP 7 Attach VESA Plates (H) to Upper Arms (B) with M8x30mm Screws (S-B) and 5mm Allen Wrench (T-C). STEP 8 Insert appropriate Screws (M-A,M-B) and Washers (M-C) into the two uppermost mounting holes of your monitors using the Phillips end of 5mm Allen Wrench (T-C), leaving a 3mm gap. Too Long Too Short...
- Page 10 STEP 9 Hang your monitors onto the upper slots on the VESA Plates (H). 2 Person Mounting Recommended Secure your monitors onto the VESA Plates (H) by fully tightening the top Screws and inserting appropriate Screws (M-A,M-B) and Washers (M-C) into the bottom two holes using the Phillips end of 5mm Allen Wrench (T-C).
- Page 11 STEP 10 Adjusting Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 5mm Allen Wrench (T-C) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
- Page 12 STEP 11 Remove Cable Covers from Upper Arm (B) by sliding forward. Organize cables and reattach all covers. Cable Cover ** WARNING ** NEVER extend monitor past desktop edge. Doing so may result in damage and/or serious personal injury.
- Page 13 Adjust as Desired Tilt Adjust the tilt support by turning the Adjustment Screw on VESA Plate (H) using 5mm Allen Wrench (T-C). Swivel Adjust the swivel resistance on Upper Arm (B) using 5mm Allen Wrench (T-C). Rotation Store Allen Wrenches (T-A,T-B,T-C) Your monitor can be rotated in Cable Clip (F).
- Page 14 [THIS PAGE IS INTENTIONALLY LEFT BLANK]...
- Page 15 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
