Side/Temperature Panel Configuration

Filac

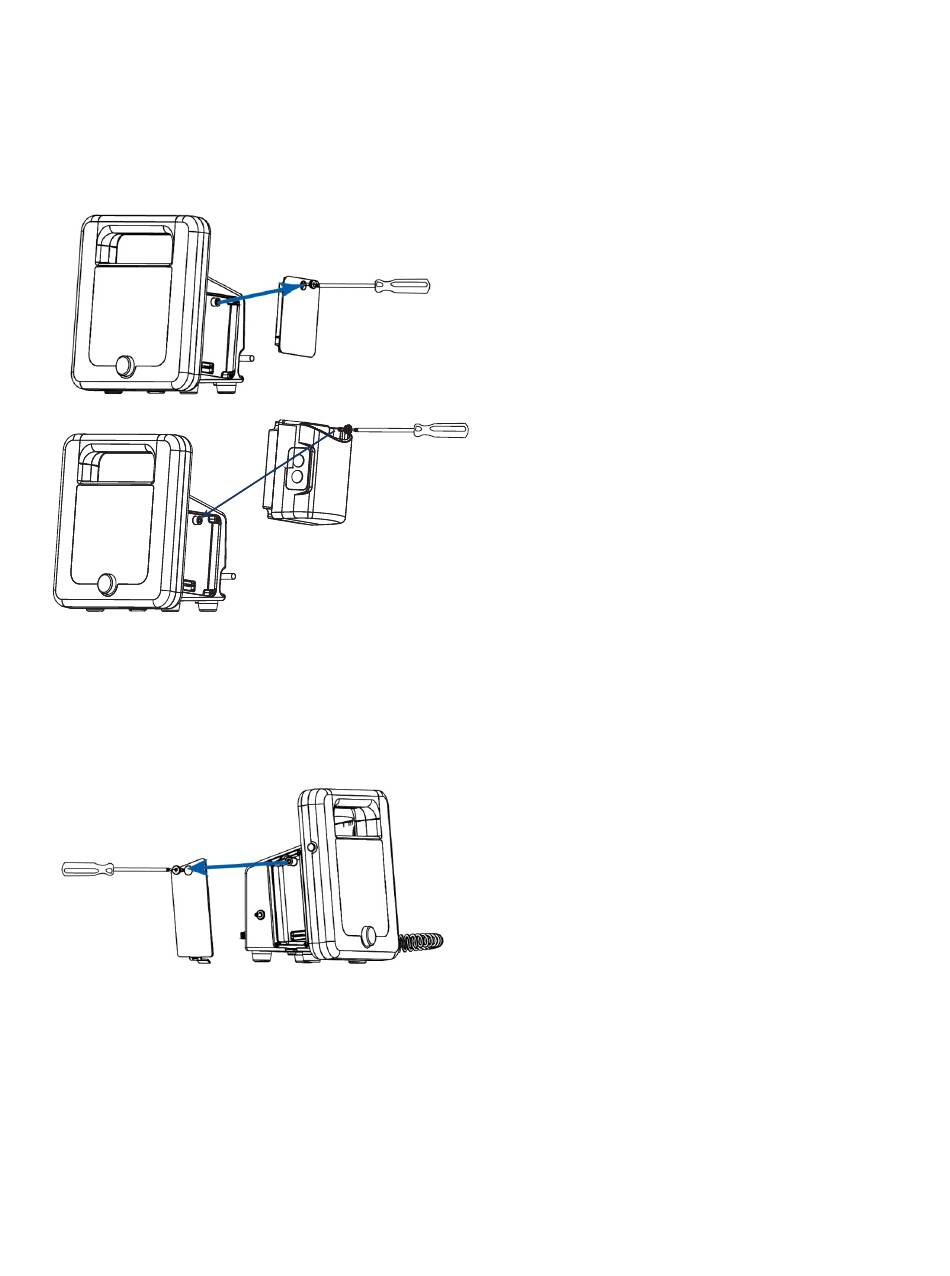

Optional modules ordered at the time of original purchase are installed prior to shipping. Modules can also be
ordered later and installed in the field. To install the Covidien Filac™ temperature module, use the included Phillips
head screwdriver to remove the panel cover on the right side of the unit (the right side when the screen is facing the
user). Attach the module and fasten in place. Insert the probe/well assembly into the top of the module.
Side/SpO Panel Configuration
2
Optional modules ordered at the time of original purchase are installed prior to shipping. Modules can also be
ordered later and installed in the field. To install an SpO2 module, use the included Phillips head screwdriver to
remove the cover on the left side of the unit (the left side when the screen is facing the user). Attach the module and
fasten in place.
93-9005-00 ADView 2 User Manual | 12
September 1, 2016
