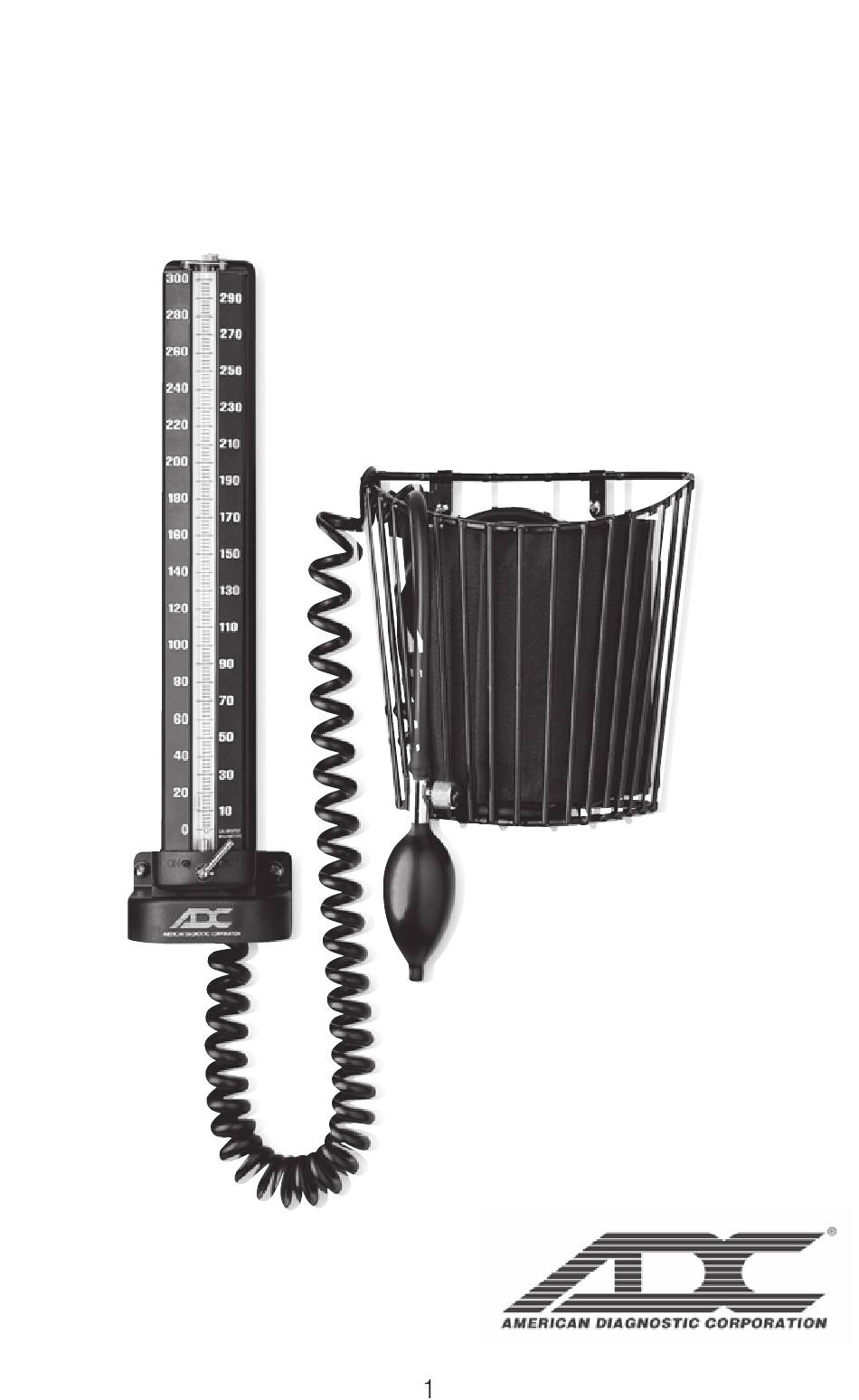

- Page 1 Diagnostix™ 952B • Wall Mount Instructions • Schematics Parts List • Maintenance...
- Page 2 WALL MOUNTING INSTRUCTIONS (1 OF 2) Tools Needed • Medium slotted screwdriver • Hammer • Drill with 3/16” drill bit Wall Mount Instructions 1. Unit may be wall mounted without disassembling main unit from swivel base/wall mount bracket. Position bracket so that center of unit is approximately 4’6”...
- Page 3 WALL MOUNTING INSTRUCTIONS (2 OF 2) CONNECTING THE INFLATION SYSTEM TO MANOMETER Remove red safety cap which seals the reservoir containing mer- cury (on the 952, the red safety cap is located on the air inlet be- neath swivel base). Attach free end of reservoir tube securely to air inlet.
-
Page 4: Maintenance
MAINTENANCE To Lock Mercury Within the Reservoir: Tilt the en- tire unit back 45° towards the reservoir to per- mit mercury to flow out of cartridge tube and into reservoir. When cartridge tube is com- pletely emptied of ALL mercury (and while it is still tilted 45°), move locking lever to the right “OFF”. - Page 5 SCHEMATIC PARTS LIST (1 OF 2) 17/W...
- Page 6 SCHEMATIC PARTS LIST (2 OF 2) 952B UNIT Ref # Item # Description 952-101 Butterfly Nut 952-102 Fitted Washer 952-103 Mounting Bracket 952-104 Basket Screws (5) 952-105 Molleys (5) 952-025 Cuff Basket 952-107 Basket Clips (2) 952-108 Rubber Tube 952-109 Reservoir Connector 952-110 Cotton Filter...
