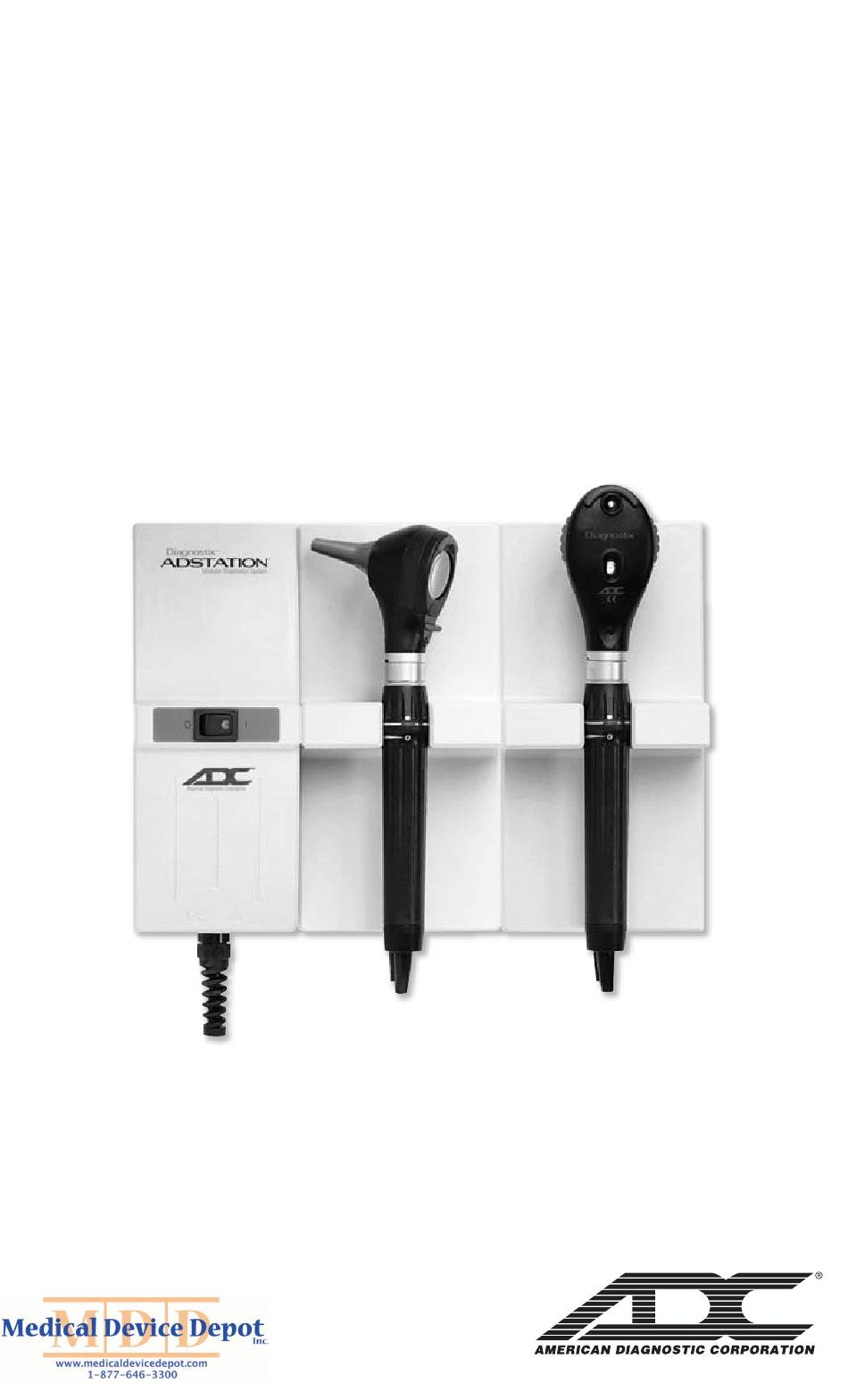

Diagnostix ADSTATION Modular Diagnostic System Instruction Manual Questions? Call DC toll free: 1-800-232-2670...
Page 2
Unplug the instrument before cleaning or when disinfecting. Warning: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g., mobile telephones, microwave ovens). This can lead to temporary impairment of the ADC ®...
Page 3
If the optional wallboard is purchased, the mounting plates come pre-attached. c.) ttachment of the DC ® Diagnostix™ dstation™ When all screws have been screwed in tightly, take the ADC ® Diagnostix™ Adstation™ and guide the screw heads through the openings (1). Then press the ®...
Page 4
Tuck excess wiring into each extension to ensure a close side- by-side fit to each extension module. Take the extension module and guide the screw heads through the openings (1). Then press the extension module downwards. (See illustration). Attention: Take care that the connecting cable does not get caught behind the extension module.
Page 5
Aldehyde (formaldehyde, glutaraldeyhde, aldehyde derivatives), surfactants or alcohol may be used. Refer to disinfectant manufacturers instructions for use. Always use a soft lint free cloth or cotton swabs to prevent damage to your ADC ® Diagnostix™ Adstation™. Attention! We recommend unplugging the instrument before cleaning or disinfection.
Page 6
9. TECHNICAL SPECIFICATIONS 5660T ADC Diagnostix™ Adstation™ Transformer Model: ® 120V~/50-60 Hz* (U.S.A.) Voltage: 230V~/50-60 Hz (Europe) 22 VA Input: 1 x 3,5V--- / 2 x 12V Output: 1 x 700mA / 2 x 1000mA Output Current: 2 x T 160 mA...
