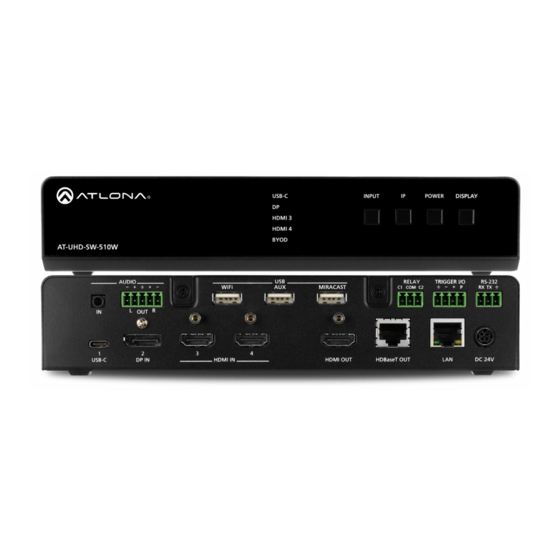

4k/uhd five-input universal matrix switcher with wireless presentation link
Hide thumbs Also See for Atlona AT-UHD-SW-510W:
Table of Contents

Advertisement

Quick Links

Download this manual
4K/UHD
Five-Input Universal Matrix Switcher
with Wireless Presentation Link
AT-UHD-SW-510W
Atlona Manuals
Switchers
