Omega™ 4K/UHD 5x2 Matrix Switcher for HDMI, USB-C,
DisplayPort, and HDBaseT with USB and Wireless Link
AT-OME-MS52W
AT-OME-MS52W-EU

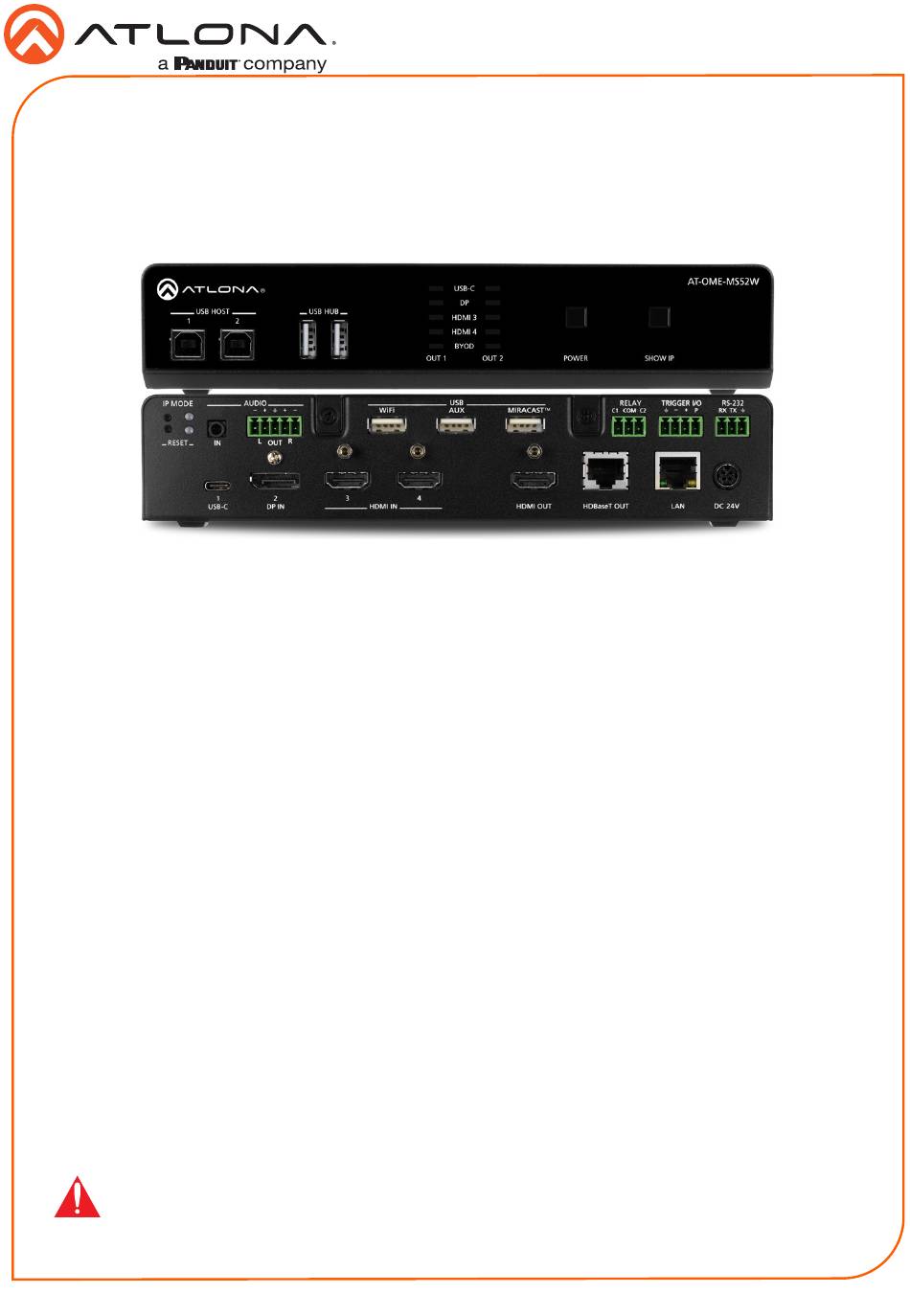

The Atlona AT-OME-MS52W is a 5x2 matrix switcher with HDMI, USB-C, DisplayPort, and
wireless AV inputs, plus HDMI and HDBaseT outputs. It features wireless presentation capability
and native screen mirroring for iOS®, Android™, Mac®, Chromebook™, and Windows®. Part of
the Omega™ Series of integration products for modern AV communications and collaboration,
the OME-MS52W is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60
4:2:0, plus embedded audio, control, Ethernet, and USB* over distances up to 330 feet (100
meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data
rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for
the HDMI output when connected to an HD sink. The integrated USB extension addresses the
challenge of connecting between USB devices at remote locations, and is ideal for software
video conferencing and touch or interactive displays. The OME-MS52W includes USB 2.0 and
USB-C interfaces for three host PCs, plus two peripheral devices such as a camera, microphone,
speakerphone, or keyboard and mouse.
Package Contents
1 x AT-OME-MS52W or AT-OME-MS52W-EU
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 4-pin
2 x Captive screw connector, 3-pin
2 x WiFi antenna modules
1 x USB-C cable, 2 meters
1 x 24 V DC power supply
2 x Mounting plates
4 x Mounting screws
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-MS52W for the latest
firmware updates and User Manual.
1
Installation Guide
AT-OME-MS52W / AT-OME-MS52W-EU
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA Omega AT-OME-MS52W
Summary of Contents for Panduit ATLONA Omega AT-OME-MS52W
- Page 1 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Omega™ 4K/UHD 5x2 Matrix Switcher for HDMI, USB-C, DisplayPort, and HDBaseT with USB and Wireless Link AT-OME-MS52W AT-OME-MS52W-EU The Atlona AT-OME-MS52W is a 5x2 matrix switcher with HDMI, USB-C, DisplayPort, and wireless AV inputs, plus HDMI and HDBaseT outputs. It features wireless presentation capability and native screen mirroring for iOS®, Android™, Mac®, Chromebook™, and Windows®.
-
Page 2: Panel Descriptions
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Panel Descriptions Front AT-OME-MS52W USB-C USB HOST USB HUB HDMI 3 HDMI 4 BYOD OUT 1 OUT 2 POWER SHOW IP USB HOST POWER IP MODE AUDIO RELAY TRIGGER I/O RS-232 WiFi MIRACAST RX TX Connect a USB cable from each of these Press this button to power-on or power ports to host computers. - Page 3 Installation Guide AT-OME-MS52W USB-C AT-OME-MS52W / AT-OME-MS52W-EU USB HOST USB HUB HDMI 3 HDMI 4 BYOD OUT 1 OUT 2 POWER SHOW IP Back IP MODE AUDIO RELAY TRIGGER I/O RS-232 WiFi MIRACAST RX TX RESET INPUT OUTPUT DC 24V IP MODE OUTPUT (HDMI) Press and release this button to set the...
- Page 4 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU RS-232 The AT-OME-MS52W provides an RS-232 port which can be used to control a display connected to the HDMI output. Atlona recommends controlling the AT-OME-MS52W using IP and reserving the RS-232 port for local display control. Use wire strippers to remove a portion of the cable jacket.
- Page 5 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Relay The AT-OME-MS52W provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-OME-MS52W is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state.
-
Page 6: Installation
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Installation Connect up to two USB host computers to the USB HOST ports on the front panel. Connect up to USB devices, such as a speakerphone, to the USB HUB ports on the front panel. AT-OME-MS52W USB-C USB HOST... - Page 7 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU 12. OPTIONAL: Connect the relay leads from the control motors of the projection screen, blinds, or curtains, to the relay outputs to the RELAY port, using the included 3-pin captive screw connector. Use a 48 V DC relay with no more than 1 A current draw. Refer to Relay (page 5) for wiring information.
-
Page 8: Mounting Instructions
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Mounting Instructions The AT-OME-MS52W can be mounted in different ways, based on the number of units that are being installed. The AT-OME-MS52W can be mounted in a rack or on/under any flat surface. Single-unit rack installation Attach the included small rack ear (sold separately) to one side of the AT-OME-MS52W, using the included screws. - Page 9 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Dual-unit rack installation Turn both units upside-down on a flat surface, next to each other, as shown. Position the included mounting plates over the holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plate should face upward.
- Page 10 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Flat surface Turn the unit upside down on a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward.
-
Page 11: Resetting To Factory Default Settings
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU AT-OME-MS52W USB-C Resetting to Factory-Default Settings USB HOST USB HUB HDMI 3 HDMI 4 Press and hold the RESET button for five seconds. BYOD OUT 1 OUT 2 POWER SHOW IP Release the RESET button once the RESET LED indicator begins to flash. The LED indicator will flash three times to indicate that the unit has been reset to factory-default settings. - Page 12 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Displaying the Current IP Address Make sure the unit is powered. AT-OME-MS52W Connect a display to the HDMI OUT port of the AT-OME-MS52W. USB-C USB HOST USB HUB HDMI 3 NOTE: If the HDBaseT OUT port is used as the output, then a compatible HDMI 4 BYOD receiver, such as an AT-OME-EX-RX, will need to be connected to the AT-OME-...
-
Page 13: Accessing The Web Server
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Accessing the Web Server The AT-OME-MS52W includes a built-in web server, which allows easy management and control of all features. Follow the instructions below to access the web server. Make sure that an Ethernet cable is connected between the LAN port on the AT-OME- MS52W and the network. -
Page 14: Troubleshooting
Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Troubleshooting Problem Solution The source image is not • Check all cable connections between the AT-OME- displayed. MS52W and the source(s) and display. • Check the input indicators on the front panel to make sure that the correct input is selected for the output. OUT 1 = HDMI OUT, OUT 2 = HDBaseT OUT. - Page 15 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Notes...
- Page 16 Installation Guide AT-OME-MS52W / AT-OME-MS52W-EU Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners.
