4x2 Matrix Switcher with HDMI and HDBaseT Inputs
AT-OME-MS42-HDBT

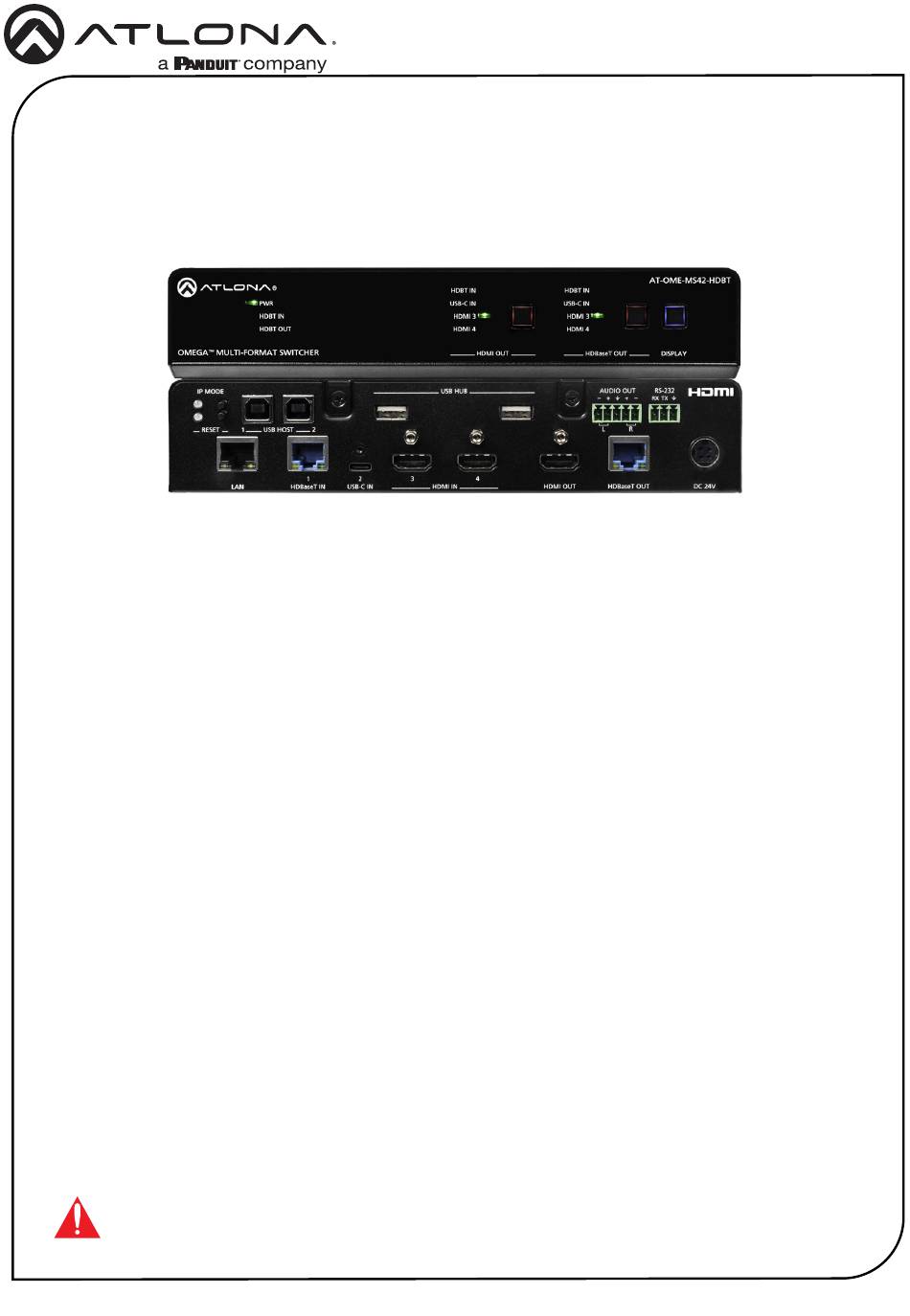

The Atlona AT-OME-MS42-HDBT is a 4×2 matrix switcher with HDMI, USB-C, and HDBaseT
inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for
modern AV communications and collaboration, the OME-MS42-HDBT is HDCP 2.2 compliant
and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control,
Ethernet, and USB over distances up to 330 feet (100 meters). The local HDMI and USB-C
inputs, and HDMI output support 4K HDR and 4K/60 4:4:4 at data rates up to 18 Gbps.
Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when
connected to an HD sink. The integrated USB extension addresses the challenge of connecting
between USB devices at remote locations, and is ideal for software video conferencing and
touch or interactive displays. The OME-MS42-HDBT features switching for up to four host PCs
through USB 2.0 type B and USB-C ports, and remotely over HDBaseT. A built-in USB 2.0 hub
provides connectivity for two peripheral devices such as a camera, microphone, speakerphone,
or keyboard and mouse.
Package Contents
1 x AT-OME-MS42-HDBT
1 x 2 m USB-C cable
1 x Captive screw connector, 5-pin
1 x Captive screw connector, 3-pin
1 x USB-C cable
2 x Mounting plate
4 x Mounting screws
4 x Feet w/rubber grips
1 x 24V DC power supply
1 x IEC power cord
IMPORTANT: Visit https://atlona.com/product/at-ome-ms42-hdbt for the latest firmware
updates and User Manual.
1
Installation Guide
AT-OME-MS42-HDBT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit ATLONA Omega AT-OME-MS42-HDBT
Summary of Contents for Panduit ATLONA Omega AT-OME-MS42-HDBT
- Page 1 Installation Guide AT-OME-MS42-HDBT Omega 4x2 Matrix Switcher with HDMI and HDBaseT Inputs AT-OME-MS42-HDBT The Atlona AT-OME-MS42-HDBT is a 4×2 matrix switcher with HDMI, USB-C, and HDBaseT inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-MS42-HDBT is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters).
-
Page 2: Front Panel Descriptions
Installation Guide AT-OME-MS42-HDBT Front Panel Descriptions AT-OME-MS42-HDBT HDBT IN HDBT IN USB-C IN USB-C IN HDBT IN HDMI 3 HDMI 3 HDBT OUT HDMI 4 HDMI 4 OMEGA MULTI-FOMAT SWITCHER HDMI OUT HDBaseT OUT DISPLAY IP MODE USB HUB AUDIO OUT RS-232 RX TX HDBaseT OUT: Input LED Indicators... - Page 3 Installation Guide AT-OME-MS42-HDBT AT-OME-MS42-HDBT HDBT IN HDBT IN USB-C IN USB-C IN HDBT IN HDMI 3 HDMI 3 Rear Panel Descriptions HDBT OUT HDMI 4 HDMI 4 OMEGA MULTI-FOMAT SWITCHER HDMI OUT HDBaseT OUT DISPLAY IP MODE USB HUB AUDIO OUT RS-232 RX TX RESET...
- Page 4 Installation Guide AT-OME-MS42-HDBT RS-232 The AT-OME-MS42-HDBT provides an RS-232 port which can be used to control a display connected to the HDMI output. Atlona recommends controlling the AT-OME-MS42-HDBT using IP and reserving the RS-232 port for local display control. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...
-
Page 5: Mounting Instructions
Installation Guide AT-OME-MS42-HDBT Mounting Instructions The AT-OME-MS42-HDBT can be mounted under a desk, lectern, or other flat surface. Turn the unit upside down on a flat surface. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. -
Page 6: Installation
Installation Guide AT-OME-MS42-HDBT Installation Connect a high-quality USB-C cable from a source to the USB-C port. Connect an HDMI cable from two HDMI souces to the HDMI IN ports. Connect an HDMI cable from the HDMI OUT port to a UHD/HD display. Connect a category cable (CAT-5e or better) from the HDBaseT IN port to a compatible transmitter. -
Page 7: Accessing The Built-In Web Server
Installation Guide AT-OME-MS42-HDBT IP Mode DHCP By default, the AT-OME-MS42-HDBT is set to DHCP mode. In this mode, when the AT-OME- MS42-HDBT is connected to the Local Area Network (LAN), it will automatically be assigned an IP address by the DHCP server (if available). Press the IP MODE button to show the IP address in the top left corner of the display connected to the HDMI output. - Page 8 Installation Guide AT-OME-MS42-HDBT Velocity Device Manager ™ For easy configuration of Atlona devices, Velocity Device Manager is available from https://atlona. com/ams for free. Once Velocity Device Manager has been set up: Open a browser on the same network as Velocity Device Manager and enter its IP address. Refer to the Velocity Device Manager installation instructions on how to find the IP address of the software.
- Page 9 Installation Guide AT-OME-MS42-HDBT Notes...
- Page 10 Installation Guide AT-OME-MS42-HDBT Notes...
- Page 11 Installation Guide AT-OME-MS42-HDBT Notes...
-
Page 12: Warranty
Installation Guide AT-OME-MS42-HDBT Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/ome-ms42-hdbt/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
