Table 11-2
Pin #
3, 7, 8
4
5
6

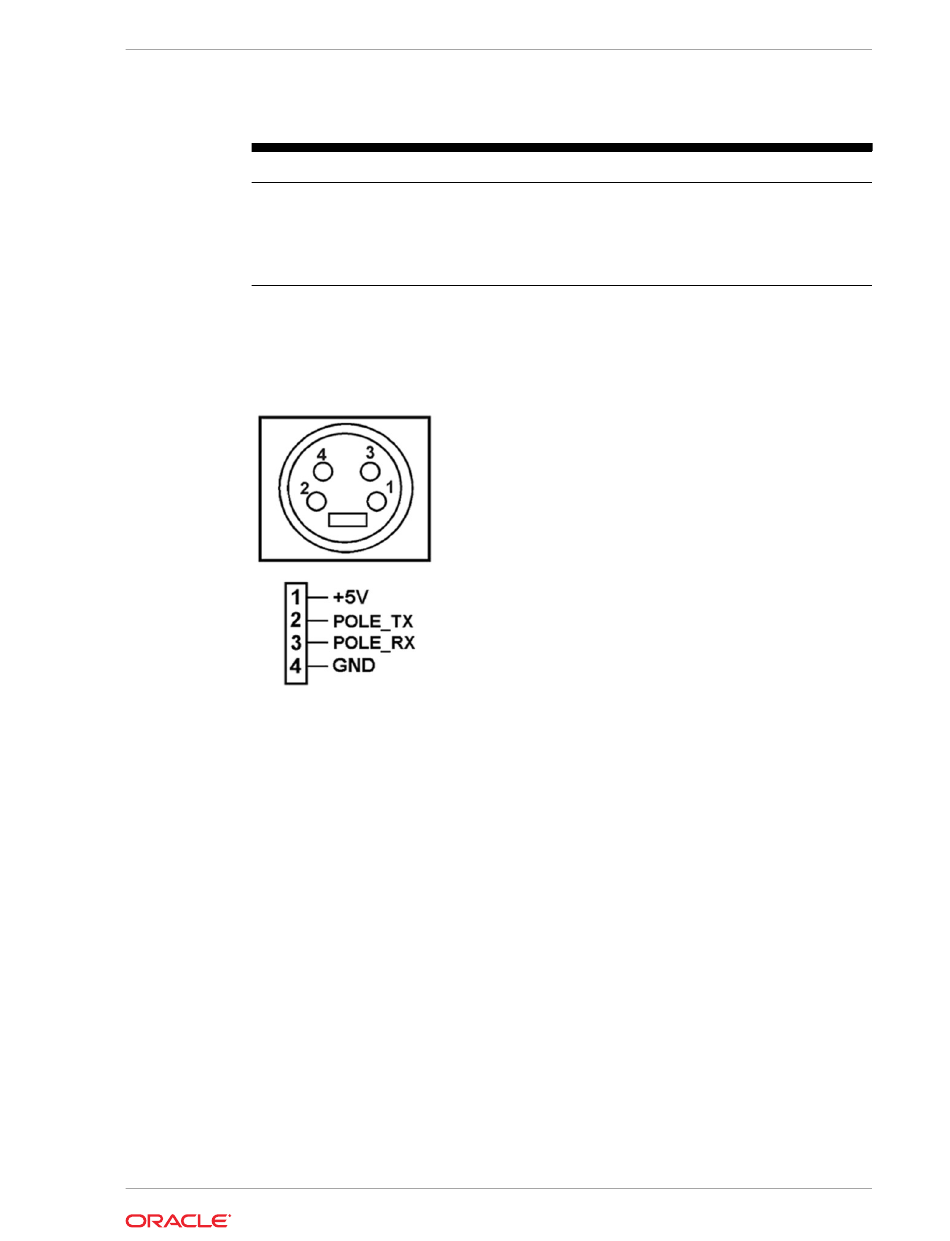

Customer Display

The customer display port contains the following pins:

System Block Diagrams

The diagrams in this section depict the system block diagrams for the 610, 620, and
650 configurations.
• 610 Configuration
• 620 and 650 Configurations
610 Configuration
The following diagram depicts the Broadwell ULT Main Board for the 610 configuration
of the Workstation 6.
(Cont.) Series 2 Cash Drawer Pin and Signal Reference
Signal Name
Ground
CD_ST
MCU_TX_5V
MCURX
System Block Diagrams
Description
Signal grounds
Input status from cash drawer
Tx data to cash drawer
Rx data from cash drawer
