Installing The Power Usb Module - Oracle MICROS 6 Series Setup Manual

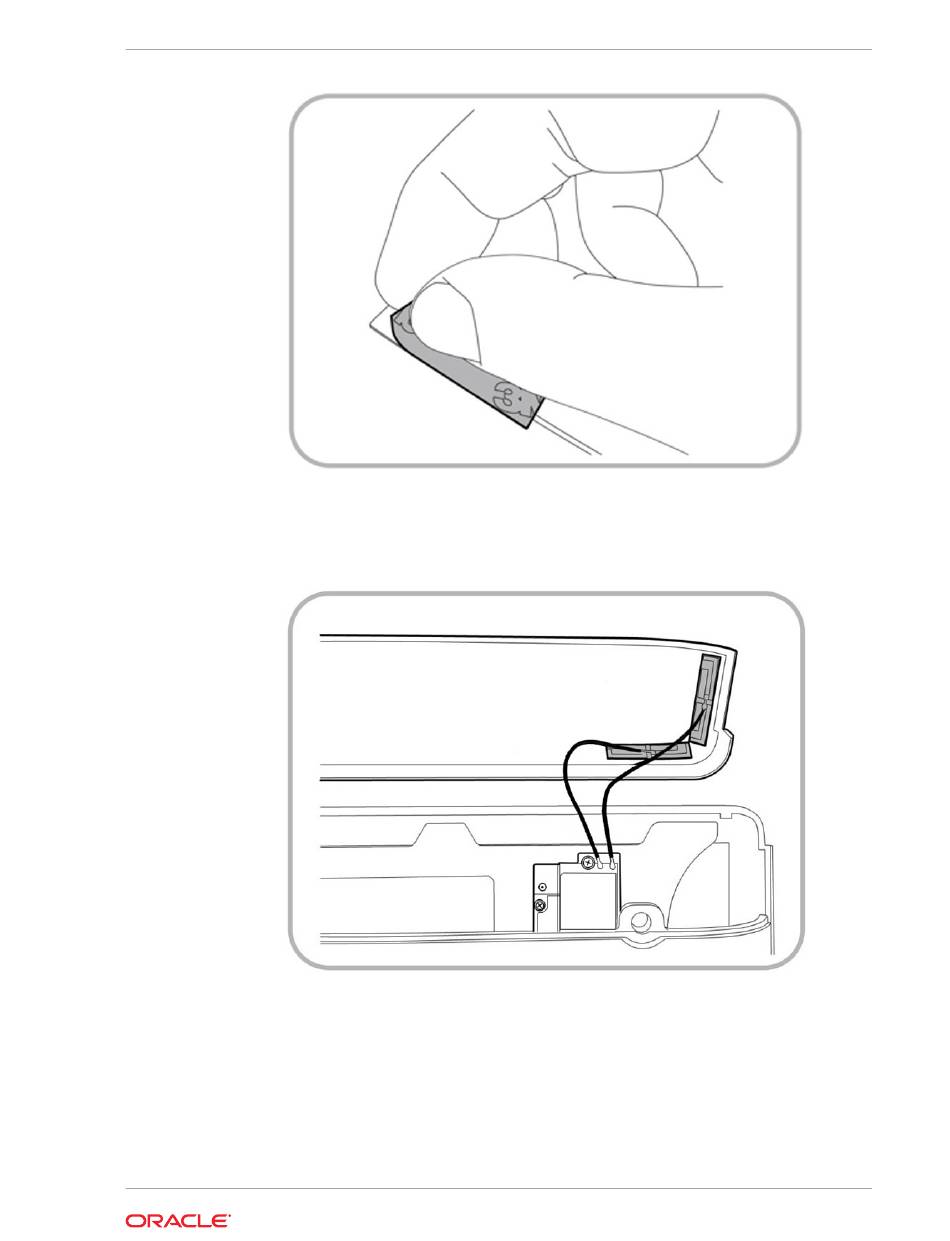

Stick the wireless antennas to the top cover positions shown in the following
8.
image, and then connect the wires to the wireless module. The antenna wires can
be oriented as needed.
Replace the top cover and use the hex wrench to secure it. Ensure the cover does
9.
not pinch the antenna wires or speaker wires.

Installing the Power USB Module

The Workstation 6 Series supports an optional power USB module. The hex key is
required for installation.
Chapter 6
Installing the Power USB Module
6-27
