- Page 1 HYDRO WASH X7 User Instructions...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
Color Macro Chart System Menu WiFly Control Target Modes Dimmer Curve Chart Error Codes Dimensional Drawings Updating the Software Power Linking I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 2... -
Page 4: Introduction

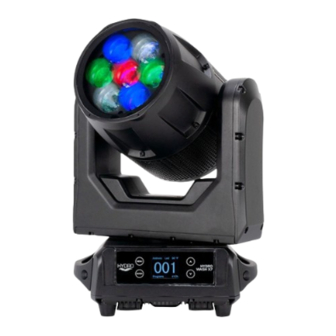

Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ Hydro Wash X7 is a DMX intelligent, IP rated, high powered, moving head fixture. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 5: Features I Warranty Registration
Hydro Wash X7 Warranty Registration The Hydro Wash X7 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Ip65 Notice
Damages and/or performance issues resulting from installation in a marine and/or coastal environment will void the manufactures warranty and will NOT be subject to any warranty claims and/or repairs. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 5... -
Page 7: Safety Guidelines
(including amplifiers) that produce heat. • The fixture should be serviced by qualified service personnel when the appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 6... - Page 8 HAS REACHED ROOM TEMPERATURE BEFORE POWERING ON. NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 7...
- Page 9 LED and will decrease gradually over time. Consistent operational breaks will ensure fixture will function properly for many years. ONLY use the original packaging and materials to transport the fixture in for service. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 8...
- Page 10 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
-
Page 11: Overview
4. DOWN Button 5. UP Button 6. Service Port 7. IP65 5-Pin DMX IN & DMX OUT 8. Gore Valve 9. IP65 Power In & Power Out ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 10... -
Page 12: Torque Settings & Ip Tester
CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTENGRITY AFTER A LAMP REPLACEMENT, TEST THE FIXTURE USING THE ELATION IP TESTER. CONTACT ELATION SERVICE FOR MORE DETAILS. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 11... -
Page 13: Torque Screw Locations
Hydro Wash X7 Torque Screw Locations ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 12... -
Page 14: Fixture Installation
NEVER stand directly below the fixture when rigging, removing, or servicing. Allow approximately 15 minutes for the fixture to cool down before serving. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 13... - Page 15 Pull the safety-cable through the opening located on the bottom of the unit and over the trussing system or a safe fixation spot. Insert the end in the carabine and tighten the safety screw. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 14...
-
Page 16: Connections
NOT DROP IF THE CLAMP FAILS. CONNECTIONS. The Hydro Wash X7 is fully operational in three different mounting positions, hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Always use and install a safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. - Page 17 GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT. TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIXTURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 16...
-
Page 18: Dmx Set Up
DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation): The Hydro Wash X7 can be controlled via DMX-512 protocol. Your unit and your DMX controller requires a 5-pin XLR connector for data input and data output. -
Page 19: Dmx Addressing
In the case of the Hydro Wash X7, when in 15 Channel you should set the starting DMX address of the first unit to 1, the second unit to 16 (15 + 1), the third unit to 31 (16 + 15), and so on. (See the chart below for more details.) -
Page 20: Dmx Channel Modes
CLOCKWISE ROTATION SLOW-FAST 194-255 64 COLOR MACROS 000-255 Please see Color Macro Chart on pages 22-23 RED 0%-100% 000-255 GREEN 0%-100% 000-255 BLUE 0%-100% 000-255 WHITE 0%-100% 000-255 ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 19... - Page 21 SHUTTER OPEN 128-159 PULSE EFFECT IN SEQUENCES 160-191 SHUTTER OPEN 192-223 RANDOM STROBING SLOW-FAST 224-255 SHUTTER OPEN DIMMER 0%-100% 000-255 DIMMER FINE 0%-100% 000-255 ZOOM 0%-100% 000-255 ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 20...
- Page 22 ENABLE BLACKOUT W/ PAN/TILT MOVEMENT 090-099 DISABLE BLACKOUT W/ PAN/TILT MOVEMENT 100-139 NO FUNCTION 140-149 PAN/TILT RESET 150-159 ZOOM RESET 160-199 NULL ALL RESET 200-209 210-239 NULL 240-255 NO FUNCTION ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 21...
-
Page 23: Color Macro Chart
73-76 Color20 77-80 Color21 81-84 Color22 85-88 Color23 89-92 Color24 93-96 Color25 97-100 Color26 101-104 Color27 105-108 Color28 109-112 Color29 113-116 Color30 117-120 Color31 121-124 Color32 125-128 ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 22... - Page 24 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 23...
-
Page 25: System Menu
DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MENU button. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 24... - Page 26 USB Port Power: ON / OFF USB Port Activation Service (Pass Code = 050) Update Software Software Update Factory Restore: YES / NO - Pass Code = 011 Restore Factory Settings ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 25...
- Page 27 LED On Running Time Total LED Time LED On Time-R - XXXXXX Hours (Resettable) LED On Time Reset - Pass Code = 050 Reset LED Running Time ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 26...
- Page 28 (3) DMX Value settings depend on the DMX Channel mode the fixture is set to. (4) Max Temp LED ON - Normal Operating Temperature (5) Max Temp LED OFF - Normal Operating Temperature ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 27...
- Page 29 - RESET MOTORS - In this submenu you are able to reset selected motors. - DISPLAY - In this submenu you are able to access and adjust/change the backlight intensity, display inversion, screen saver display time, and display lock function. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 28...
- Page 30 CAN be reset. NOTE: The displayed time represents the CURRENT LED ON time since the last reset. • LED On Time Reset - With this function you can reset the CURRENT LED ON time that is displayed under “LED On Time-R”. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 29...
- Page 31 - HIGH TEMP LED OFF - In this submenu you are able to check the normal operating temperatures as well as the current temperature of the fixture. - SOFTWARE VERSION - Current software version is displayed. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 30...
-
Page 32: Wifly Control
With this feature you are able to control the unit with DMX without the need of XLR cables. Your DMX controller must be connected to a ADJ WiFly Transceiver to use this function. You are able to communicate up to 2500 feet/760 meters (open line of sight). - Page 33 Careful planning and testing of the selected installation location is critical to ensure optimum and reliable wireless DMX operation. 9.8 ft (3m) Above Ground ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 32...
-
Page 34: Target Modes
Pan Movement Range: 90º Tilt Movement Range: 135º Mode 3: Pan Movement Range: 90º Tilt Movement Range: 135º Mode 4: Pan Movement Range: 90º Tilt Movement Range: 135º ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 33... -
Page 35: Dimmer Curve Chart
Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 34... -
Page 36: Error Codes
ArmFan can't start 17 ArmFan Stop Error ArmFan can't stop 18 Led Temp: Too High 19 Led Temp: Too High Led Temp Error 20 Led Temp Error ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 35... -
Page 37: Dimensional Drawings
Hydro Wash X7 Dimensional Drawings 6.41” / 163mm 7.73” / 196.5mm 11.89” / 302.1mm 11.32” / 287.6mm ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 36... -
Page 38: Updating The Software
17. Remove the USB flash drive. 18. After the reset process is complete check the new software version to confirm it is updated to the most recent software. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 37... -
Page 39: Power Linking I Cleaning
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 38... -
Page 40: Limited Warranty (Usa Only)
ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual. -
Page 41: Technical Specifications
3 DMX Modes: 15 / 17 / 41 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - Hydro Wash X7 User Manual Page 40...
