Install the 333 Suppressor
Use the included 333 suppressor
with the 734B to suppress any surges
caused by energizing a magnetic lock
or door strike.
Install the 333 across the module
C (common) and NO (normally open)
or NC (normally closed) terminals.
If the device being controlled by the
relay is connected to the NO and C
terminals, install the suppressor on the
NO and C terminals.
Conversely, if the device is connected
to the NC and C terminals, install
the 333 Suppressor on NC and C
terminals.
The suppressor wire is non‑polarized.
Install the suppressor as shown in
Figure 7.
8 734B Installation and Programming Guide
NO C NC
RED YEL GRN
PROG
RELAY WIEGAND DATA
ON READ LED XMT LED

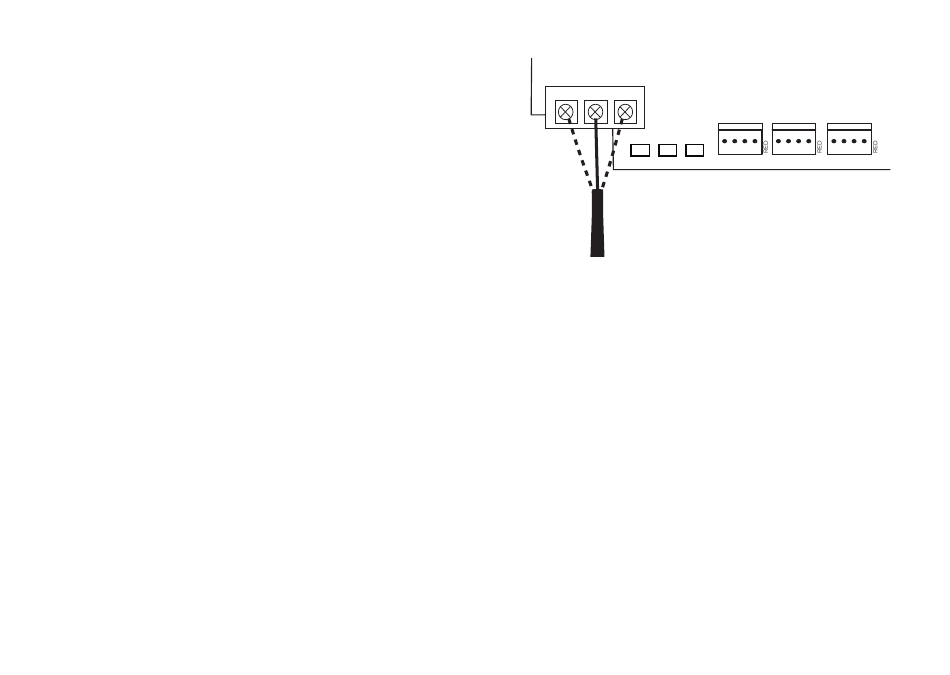

Figure 7: 333 Suppressor
Installation on the 734B
| Digital Monitoring Products, Inc.
734B
PIEZO
+ –
KYPD IN KYPD OUT
