DMP Electronics 714N-POE Installation And Programming Manual

Network zone expander module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

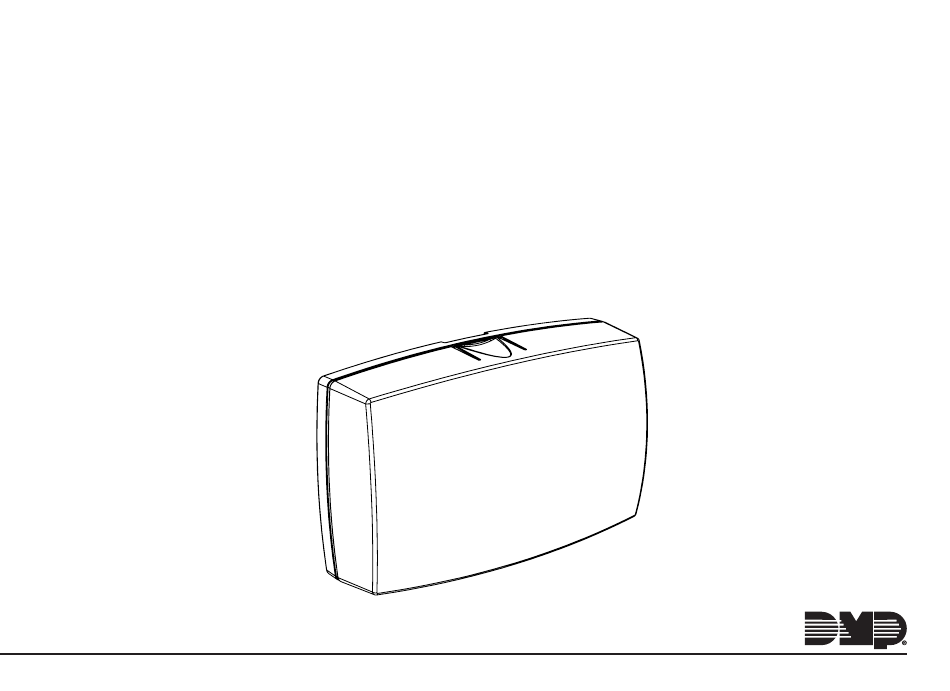

714N-POE Network
Zone Expander Module
INSTALLATION AND PROGRAMMING GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 714N-POE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics 714N-POE

Summary of Contents for DMP Electronics 714N-POE

  • Page 1 714N-POE Network Zone Expander Module INSTALLATION AND PROGRAMMING GUIDE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents ........a 714N DHCP ............10 714N IP Address ..........10 About the 714N-POE ........1 Subnet Mask ............10 Power Supply ............1 Gateway Address ..........10 Zone Terminals ............1 Panel IP Address ..........10 Programming Connection ......... 1 Panel IP Port ............

  • Page 4: About The 714N-Poe

    ABOUT THE 714N-POE The 714N-POE Network Zone Expander Module allow you to add 4 zones to XR150/XR550 Series panels using IP network capability. The 714N-POE is compatible with 1k to 10k resistors, giving a wide variety of options for takeovers.

  • Page 5: Pcb Features

    PCB FEATURES ZONES POWER OUTPUT INDICATOR LEDS DC INPUT Figure 1: PCB Features 714N-POE Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 6: Install The 714N-Poe Module

    2. Use the included screws in the desired mounting hole locations to attach the remote module to the surface. See the shaded mounting hole locations in Figure 2. 3. Reinstall the circuit board in the housing base. Mounting Hole Figure 2: Mounting Hole Locations Digital Monitoring Products, Inc. 714N-POE Installation and Programming Guide...

  • Page 7: Network Connection

    NETWORK CONNECTION Connect an IP network cable from the LAN/WAN connection to the 714N-POE Network connector. The 714N-POE module communicates AES encrypted TCP with panels that have network installed. Two LED’s are located on the ethernet jack. • The green LED indicates data sent to the panel.

  • Page 8: Wire The Zone Terminals

    Refer to the panel programming guide for programming instructions. See Figure 2 for more information on wiring the zone terminals. Zone 1 Zone 2 Zone 3 Zone 4 Figure 2: Zone Terminal Wiring Digital Monitoring Products, Inc. 714N-POE Installation and Programming Guide...

  • Page 9: Addressing The 714N-Poe

    DMP XR150/XR550 Series panels use keypad bus addresses 1 through 16. Each keypad bus address can accommodate one 714N-POE. A module with an address of 2 on the keypad bus would represent Door 2 and zones 21-24. A module with a keypad address of 14 would represent Door 14 and zones 141-144.
  • Page 10 Setting the 714N-POE Addresses Only valid zone numbers can be assigned 714N-POE in device setup. For complete keypad and AX- Bus address mapping, see the chart below. DEVICE ZONES DEVICE ZONES DEVICE ZONES DEVICE ZONES DEVICE ZONES DEVICE ZONES 11-14...

  • Page 11: Program The 714N-Poe Module

    PROGRAM THE 714N-POE MODULE When you program the 714N-POE module, you must use a keypad connected to the programming header and set to address 1. You can also program the module from an XR150/XR550 Series panel. Initial programming of device and communication must be performed with a keypad. Afterwards, device programming and 714N-POE options may be programmed from the panel’s programming interface.

  • Page 12: Program Start Display

    Press 6653 (PROG) then CMD to enter the Programming Menu. INITIALIZATION OPTION INITIALIZE ALL? These options can set the 714N-POE module programming memory NO YES back to factory defaults. Press any select key or area to enter the initialization menu.

  • Page 13: 714N Dhcp

    Note: This IP address must match the address programmed in the panel at the Local IP Address option in Network Options. The DHCP programming in the panel must be set to NO. 714N-POE Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 14: Panel Ip Port

    734N passphrase entered in Network Options programming of the panel. If no 734N has been installed, a passphrase is still required for the 714N-POE to communicate with the panel. The passphrase is blank by default. Digital Monitoring Products, Inc.

  • Page 15: 714N-Poe Network Specifications

    The 714N-POE was designed to have minimum impact on network performance. • If required, all of the traffic between the 714N-POE(s) and the panel can be completely isolated from the rest of the existing network by connecting all of the 714N-POE modules and the panel to the same switch, then connecting the switch to the remainder of the network.

  • Page 16: Compliance Listing Specifications

    COMPLIANCE LISTING SPECIFICATIONS COMMERCIAL BURGLARY (XR550 SERIES PANELS) When using the zones of the 714N-POE in a listed application, place the module in a listed enclosure and connect a DMP Model 307 Clip-on Tamper Switch to the enclosure programmed as a 24-Hour zone.

  • Page 17: Certifications

    UNDERWRITERS LABORATORY (UL LISTED) 714N-POE ANSI/UL 294 Access Control System Units ANSI/UL 609 Local Burglar Alarm Units And Systems ANSI/UL 1076 Proprietary Burglar Alarm Units And Systems ANSI/UL 1610 Central Station Burglar-Alarm Units 714N-POE Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 18: Product Specifications

    12.95 W Available Output Current 750 mA Zones 5 VDC, 2 mA max Dimensions 4.5W x 2.75H x 1.75D in 11.43W x 7H x 4.45D cm Weight 8 oz .23 kg Digital Monitoring Products, Inc. 714N-POE Installation and Programming Guide...
  • Page 19 714N-POE Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 20 LT-1947 19345 1.01 © 2019 Digital Monitoring Products, Inc.
