734N Series Access
Control Modules
INSTALLATION AND PROGRAMMING GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 734N Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics 734N Series

Summary of Contents for DMP Electronics 734N Series

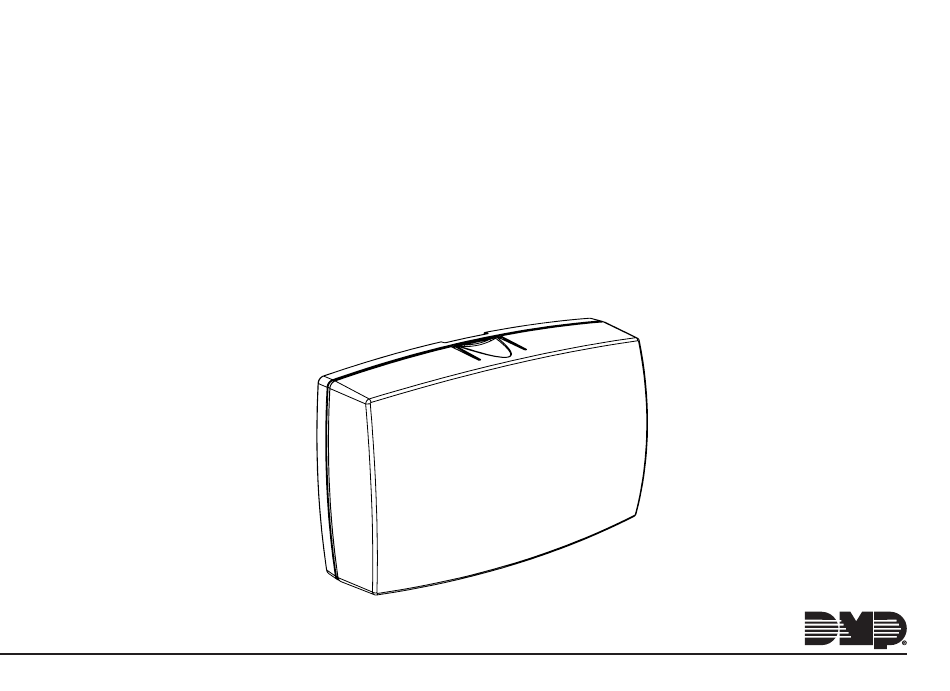

  • Page 1 734N Series Access Control Modules INSTALLATION AND PROGRAMMING GUIDE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS About the 734N Series ......1 Program the Panel ........23 Power Supply ..............1 Device Setup ..............23 Zone Terminals ..............1 Device Number ..............23 Annunciators..............1 Device Name ..............23 Indicator LEDs ..............1 Device Type ................24 Form C Relay ..............2 Communication Type ............24...
  • Page 4 Card Format Added/Changed (Custom Format) 40 No Communication with Panel ........40 Product Specifications ......51 Stop ...................41 Readers and Credentials ......53 Test the 734N Series Module ....42 ...........42 734N Menu Diagnostics Menu ............42 Zone Status Display ............43 Public Card Formats ....... 44...

  • Page 5: About The 734N Series

    Four input zones are provided to allow second to indicate receipt of valid input. connection of nearby burglary devices. • DATA (green) indicates that the module is communicating with the panel. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 6: Form C Relay

    Wiegand and OSDP Reader or higher, along with XR Series firmware Version 202 or higher. Support The 734N Series supports both Wiegand and OSDP card readers. For information on compatible readers, refer to “Readers and Credentials”. OSDP support requires 734N/734N‑POE modules with PCB Rev 9 and higher.

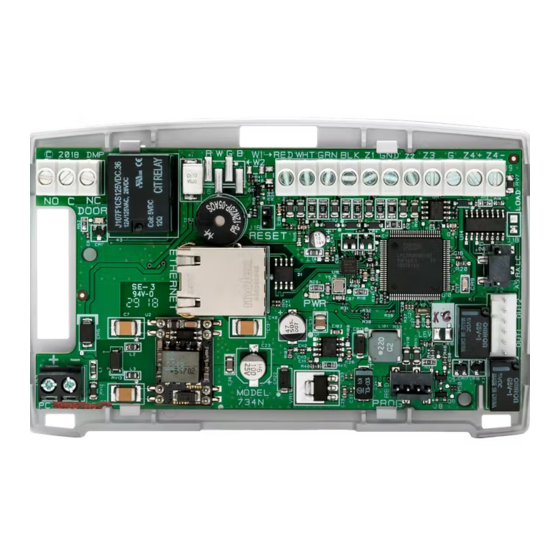

  • Page 7: Pcb Features

    PCB FEATURES Reader Piezo Inputs Zones Door Relay Reset Header Status Indicator Indicator LEDs Outputs Output 2 Network Connection Output 1 Input Keypad Programming Header Figure 1: PCB Features Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 8: Install The 734N Series Module

    Insert the included screws in the desired mounting hole locations and tighten them to secure the housing to the surface. Reinstall the PCB in the housing base. Figure 2: Mounting Hole Locations 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 9: Wire The Access Control Lock

    When the 734N Series module is powered with a 12/24 V power supply, the device can power an electric strike, up to 750 mA. See Figure 3 and Figure 4 for typical magnetic lock and door strike wiring.
  • Page 10 Suppressor Lock DC Door Strike Suppressor Mag lock negative to Door strike negative to power supply negative power supply negative Figure 3: Typical Magnetic Lock Wiring Figure 4: Typical Door Strike Wiring 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 11 Card Reader White Green Black Black RED WHT GRN BLK Z1 Z4+ Z4– Door Strike POE Switch or Injector Figure 5: Typical Door Strike Wiring with POE (734N‑POE only) Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 12: Isolation Relay (Optional)

    Common Common – – – – 12/24VDC 12/24VDC Power DC Input Power Supply DC Input Supply Figure 7: Door Strike with an Figure 6: Magnetic Lock with an Isolation Relay Isolation Relay 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 13: Install The 333 Suppressor

    Install the 333 Suppressor Use the included 333 suppressor with the 734N Series module to suppress any surges caused by energizing a magnetic lock or door strike. Install the 333 across the module’s C (common) and NO (normally open) or NC (normally closed) terminals.

  • Page 14: Wire The Zone Terminals

    If the door is still open at the end of the second timer, Aux Output 2 is turned on. Aux Outputs 1 and 2 turn off when the door contact is closed. Use the Model 431 Relay Harness for connection of Output 1 and Output 2. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 15 Table 1: 734N Zone Uses Zone 1 Zone 3 can also Zone 2 be wired normally closed with an Zone 3 in-line 1k Ohm resistor Zone 4 Figure 9: Zone Terminal Wiring Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 16: Connect A Wiegand Card Reader

    Connect a Wiegand Card Reader The 734N Series module provides direct 12/24 VDC, 200 mA output to the reader on the Red terminal connection. Figure 10 shows a reader with wire colors RED, WHT, GRN, and BLK connecting to Terminals 1, 2, 3, and 4.
  • Page 17 ALL SYSTEM ON. Connect a wire from the AS Terminal to an armed status indicator. Caution: Status indicator outputs support a maximum of 100 mA per terminal. Exceeding the maximum rating on LC, RA, or AS terminals can damage equipment. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 18 Wiegand Card Reader Yellow Orange or Brown Black (GND) Green (Data 0) White (Data 1) Red (12/24VDC) RED WHT GRN BLK Z1 Z4+ Z4– Figure 10: Wiegand Card Reader Wiring 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 19: Connect An Osdp Card Reader

    Connect an OSDP Card Reader The 734N Series provides 12/24 VDC, 200 mA power to the reader on the RED terminal connection and two‑way data transmission on the GRN and WHT connection. Only one OSDP reader can be connected to a module.
  • Page 20 OSDP Reader LED Operation OSDP readers connected to 734N Series modules provide visual indication of relay condition, connection type, and encryption status with a red and green LED. Enable reader LED operation in LED CONTROL. If enabled, the reader LED is turned on and operates the same as a Wiegand reader LED, lighting green when the module relay activates.
  • Page 21 OSDP Card Reader Black (GND) A (485 -) B (485 +) Red (12/24 VDC) RED WHT GRN BLK Z1 Z4+ Z4– Figure 11: OSDP Card Reader Wiring Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 22 ALL SYSTEM ON. Connect a wire from the AS Terminal to an armed status indicator. Caution: Status indicator outputs support a maximum of 100 mA per terminal. Exceeding the maximum rating on LC, RA, or AS terminals can damage equipment. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 23: Network Connection

    Network Connection Connect an IP network cable from the LAN/WAN connection to the 734N Network connector. The 734N Series module communicates AES encrypted TCP with panels that have network installed. Two LEDs are located on the Ethernet jack. • The green LED indicates that data is being sent to the panel •...

  • Page 24: Set The 734N Address

    DMP XR550 panels are capable of access control expansion using any of the five AX/LX‑Bus headers (AX/LX500, 600, 700, 800, and 900). An AX‑Bus address can accommodate 1 door output and 1 expansion zone. Because the 734N Series module has a built‑in 4‑zone expander, 3 extra zones must be mapped to the 734N.
  • Page 25 131‑134 549‑552 649‑652 749‑752 849‑852 949‑952 141‑144 553‑556 653‑656 753‑756 853‑856 953‑956 151‑154 557‑560 657‑660 757‑760 857‑860 957‑960 161‑164 561‑564 661‑664 761‑764 861‑864 961‑964 Table 2: Device Addresses and Zone Numbers Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 26: Connect The Power Supply

    Use 22 AWG wire to connect the DC power terminal block on the device to the DC power terminal on the 505‑12 power supply PCB. Connect the transformer to an unswitched 120 VAC 1.5 Amp power source. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 27: Program The Panel

    Set the module’s address. For information about valid DEVICE NO: ‑ addresses, refer to Table 2. Device Name DEVICE SETUP Press a select key or area, then enter a name for the module. *UNUSED* Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 28: Device Type

    COMM TYPE: NET module communication type. Configure additional options as needed. To configure specific options for the module locally, do not program CARD OPTIONS or 734 OPTIONS in Device Setup. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 29: Program The 734N Series Module

    PROGRAM THE 734N SERIES MODULE When you program the 734N Series module, you must use a keypad connected to the programming header and set to address 1. For 12 V applications, connect the keypad to the module using a Model 330 4‑wire harness. For 24 V applications, connect the keypad to the module using a Model 330‑24 4‑wire programming harness with in‑line resistor.

  • Page 30: Menu

    Programmer Menu, enter 6653 (PROG). PROGRAMMER MENU 734N Press CMD to advance through programmer menu and PROGRAMMER press a select key or area to enter the appropriate menu: INITIALIZATION, COMMUNICATION, ACCESS OPTIONS, or STOP. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 31: Initialization Options

    NO. To clear communication programming, select YES. No programming is cleared unless you select YES. Initialize Access INITIALIZATION Select YES to set the 734N Series access programming ACCESS? NO YES back to factory defaults. Select NO to leave access options unchanged.

  • Page 32: Communication Menu

    DHCP is set to NO. Default is 192.168.0.201. Subnet Mask SUBNET MASK: Press a select key or area to enter the local subnet mask 255.255.255.0 assigned to the module. Default is 255.255.255.0. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 33: Gateway Address

    You must enter an 8‑16 character alphanumeric passphrase to ******** encrypt communication with the panel. The 734N passphrase must match the one entered in panel Network Options. The passphrase is blank by default. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 34: Access Options

    OSDP Buzzer Control BUZZER CONTROL: Select YES to enable built‑in reader annunciation. Select NO NO YES to disable built‑in reader annunciation. For more information, refer to “Connect an OSDP Card Reader”. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 35 Caution: OSDP readers can only be programmed locally from the module with a keypad. To properly bond the reader to the module, the 734N Series must be initialized and the reader must be new or factory reset. After programming is complete and the keypad is disconnected,...

  • Page 36: Activate Zone 2 Bypass

    BYPASS? NO YES NO allows standard zone operation on zone 2. The default is If the door being released by the 734N Series module is protected (contact installed), a programmable bypass entry/exit timer can be provided by connecting its contact wiring to the 734N Series module zone 2. When the onboard Form C relay activates and the user opens the door connected to zone 2, the zone is delayed for the number of...
  • Page 37 Selecting NO leaves the relay on when zone 2 changes state. Turning off the relay allows a long strike time to be automatically ended upon zone 2 change and relocks the door. The default is NO. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 38: Activate Zone 3 Request To Exit

    Wire zone 3 as normally closed with an in‑line 1k Ohm resistor. When zone 3 opens from a normal state, only a bypass occurs and the onboard relay does not activate. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 39: Activate Onboard Speaker

    The door strike relay is activated for the length of time programmed in ZN 3 REX TIME. No user code information is sent to the panel. The menu advances to “No Communication with Panel”. The default card format is DMP. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 40 Note: If you select slot 1 and you are upgrading from XR panel version 182 or earlier, FORMAT NAME will automatically be named SINGLE CARD FORMAT and WIEGAND CODE LENGTH will default to 45. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 41 Position = 9 Received Received Length = 8 Length = 16 Position = 25 Position = 0 Example: Wiegand Code Length = 26 bits Figure 13: Wiegand Data Stream Bit Location Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 42: Require Site Code

    In addition to user code verification, door access is only granted when any one site code programmed at the SITE CODE ENTRY option matches the site code received in the Wiegand string. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 43: Number Of User Code Digits

    All bits are read and converted into a decimal number string. The number string is left padded with 0 (zero) if needed for long user code lengths. Example: # decoded 1234567 10 digits 0001234567 4 digits 4567 Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 44: Card Format Added/Changed (Custom Format)

    ANY ON Site Code). Door access is granted when the Wiegand site code string received matches any site code programmed at Site Code. Refer to “Require Site Code” for more information. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 45: Stop

    Press any select key or area to initiate the stop routine. When STOP programming is saved successfully, STOP displays and the module returns to the main 734N Menu. Test the module or remove the keypad harness to disconnect the keypad. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 46: Test The 734N Series Module

    Duplicate Device: There is another device on the network DUPLICATE DEVICE with the same device number. Transmit Time: The speed of the last transmission and XMIT TIME XXX MS acknowledgment in milliseconds. 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 47: Zone Status Display

    CMD. If the zone number entered isn’t programmed, the keypad displays INVALID ZONE NO. 734N ZONE: 2 ‑OPEN 734N ZONE: 3 ‑SHORT Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 48: Public Card Formats

    Position Length Position Length Digits Length H10301 26 bit H10302 37 bit w/o FAC H10304 37 bit w/ FAC Farpointe 39 bit Corporate 1000 35 bit Corporate 1000 48 bit 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 49: Series Network Specifications

    734N SERIES NETWORK SPECIFICATIONS The 734N Series was designed to have minimum impact on network performance. The modules are supervised in the panel by exchanging two data packets every five seconds. The payload of the data packets exchanged between the XR150/XR550 Series and the modules is a very small 18 bytes.
  • Page 50 A pair of supervision packets are sent every 5 seconds. ‑ The payload for each packet is 18 bytes and the total traffic, including overhead, is approximately 2 kilobytes per minute for each 734N Series module. ‑ Non‑Supervision messages have a payload range of 18‑50 bytes.

  • Page 51: Compliance Listing Specifications

    POE power to be supplied by a UL 294 Listed, power limited, injector providing 50‑57 VDC and 30.0 W for maximum output (POE+). POE power to be supplied by a UL 294 Listed POE+ Midspan or Endspan providing 44‑57 VDC and 30 W for maximum output. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 52 (for example, Alternative A or Alternative B or both), and the maximum power class supported by the PSE. The 734N‑POE is compatible with the Altronix Netway 1. Figure 14: Cat 5 568‑B Wiring 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 53: Ulc Commercial Burglary (Xr150/Xr550 Series Panels)

    The 734N Access Control features have not been investigated by ULC. The 734N zones can be used in a Low Risk application. For Medium or High Risk applications, refer to the Dual Zone Protection diagram in the XR150/XR550 Canadian installation guide. Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...

  • Page 54: Certifications

    Destructive Attack, Line Security, and Standby Power Level IV Endurance ANSI/UL 609 Local Burglar Alarm Units And Systems ANSI/UL 1076 Proprietary Burglar Alarm Units And Systems ANSI/UL 1610 Central Station Burglar‑Alarm Units 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 55: Product Specifications

    When powered from POE Standby 243 mA (includes 200 mA for proximity reader) +1.6 mA per active zone Alarm 273 mA (includes 200 mA for proximity reader) +10 mA with Annunciator ON +2 mA per faulted zone Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 56 Maximum Power Draw (POE) 12.95 W Total Available Output Current 750 mA Zones 5 VDC, 2 mA max Dimensions 4.5 W x 2.75 H x 1.75 D in 11.43 W x 7 H x 4.45 D cm Weight 8 oz 0.23 kg 734N Series Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 57: Readers And Credentials

    ProxKey III® access device ProxPoint Plus® proximity PP‑6005B 1351 ProxPass® reader ProxPro® proximity reader with PR‑5355 1386 ISOProx II® card keypad PR‑5455 ProxPro® II proximity reader TL‑5395 Thinline II® proximity reader Digital Monitoring Products, Inc. 734N Series Installation and Programming Guide...
  • Page 58 CSR‑35P Bluetooth smartcard reader CSR‑35P‑ OSDP Bluetooth OSDP smartcard reader OSDP capability for 734N Series modules 13.56 MHz Smartcard Credentials was designed and tested with Farpointe readers. Other reader brands may MIFARE® DESFire® EV2 be usable, but have not been tested smartcard with 734N Series modules and are not...
  • Page 60 LT-1197 20314 1.04 © 2020 Digital Monitoring Products, Inc.
