DMP Electronics 716 Installation Manual

716 OUTPUT EXPANSION MODULE
Installation Guide
MODEL
716
TXD

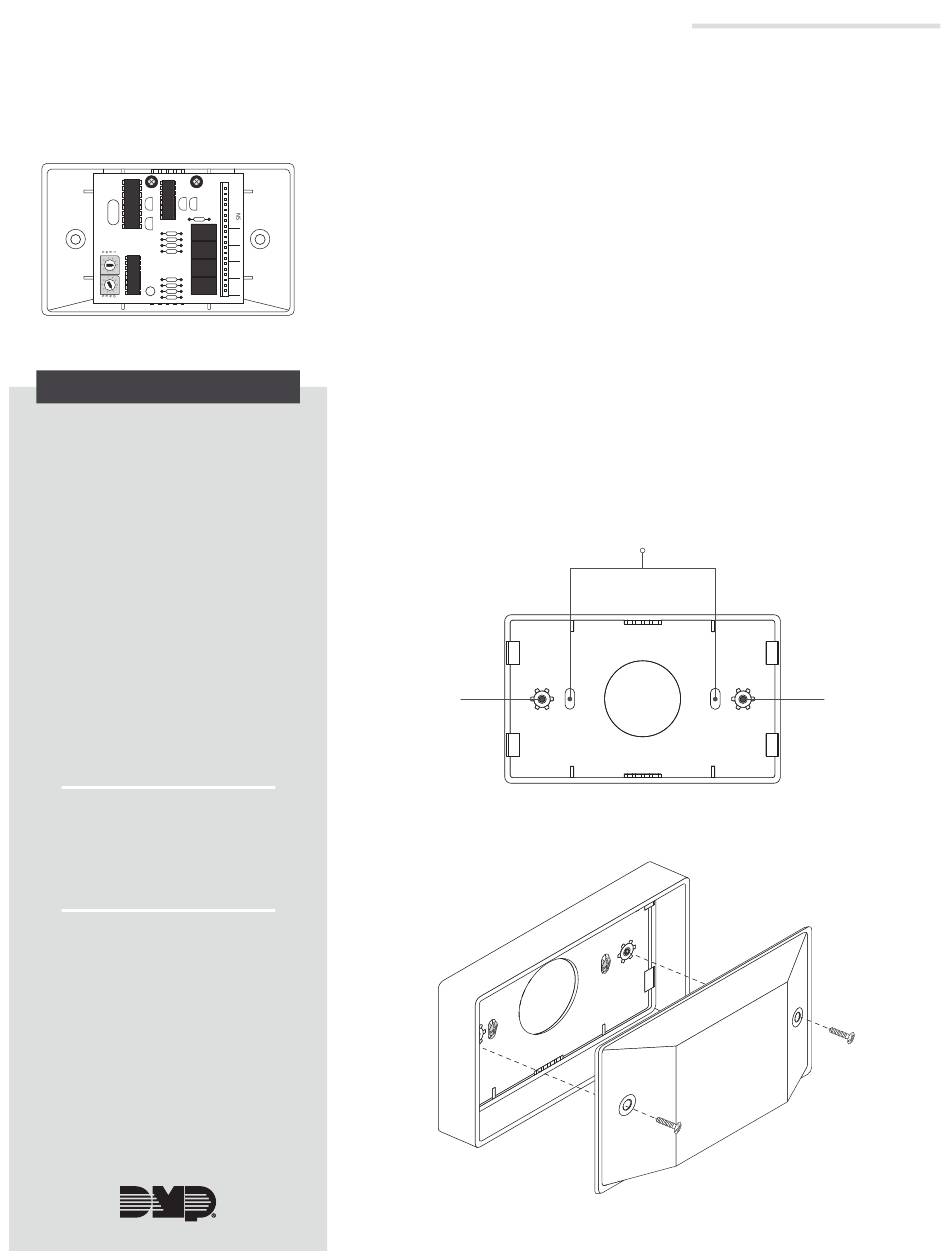

Figure 1: 716 Module
DESCRIPTION
The 716 Output Expansion Module
provides four independently
programmable Form C (SPDT)
relays and four zone‑following
annunciator outputs for use on
XR150/XR550 Series panels.
Connect the 716 Module to the
panel LX‑Bus. The 716 Module
cannot be connected to the Keypad
Bus.
In addition to the panel onboard
Form C relays, you can connect
multiple modules to the panel
for unique auxiliary relays
and annunciator outputs,
one per zone. The XR550 has
500 available LX‑Bus zones. The
XR150 has 100 available LX‑Bus
zones.
Compatibility
• XR150/XR550 Panels
What is Included?
• One 716 Output Expansion
Module
• One 20‑Wire Harness
• Hardware Pack
1
1
2
3
4
NC
12 VDC
1
C
NO
NC
12 VDC 2
C
NO
NC
3
12 VDC C
NO
NC
4
12 VDC C
NO
MOUNT THE MODULE
The 716 comes in a high‑impact plastic housing that you can
mount directly to a wall, backboard, or other flat surface. For easy
installation, the housing base contains holes that allow you to
mount the module on a single‑gang switch box or ring. Mount the
module outside the panel enclosure.
1. Remove the housing fastener screws and separate the top
housing from the base.
2. Insert screws through the desired mounting holes on the
housing base. Refer to Figure 2 for mounting hole locations.
3. Tighten the screws into place.
4. Attach the housing top to the mounted base with the
housing fastener screws. Refer to Figure 3.
Housing
fastener
hole
Figure 2: Mounting Hole Locations
Figure 3: Assembling the Housing
Mounting
holes
Housing Base
Housing
fastener
hole
