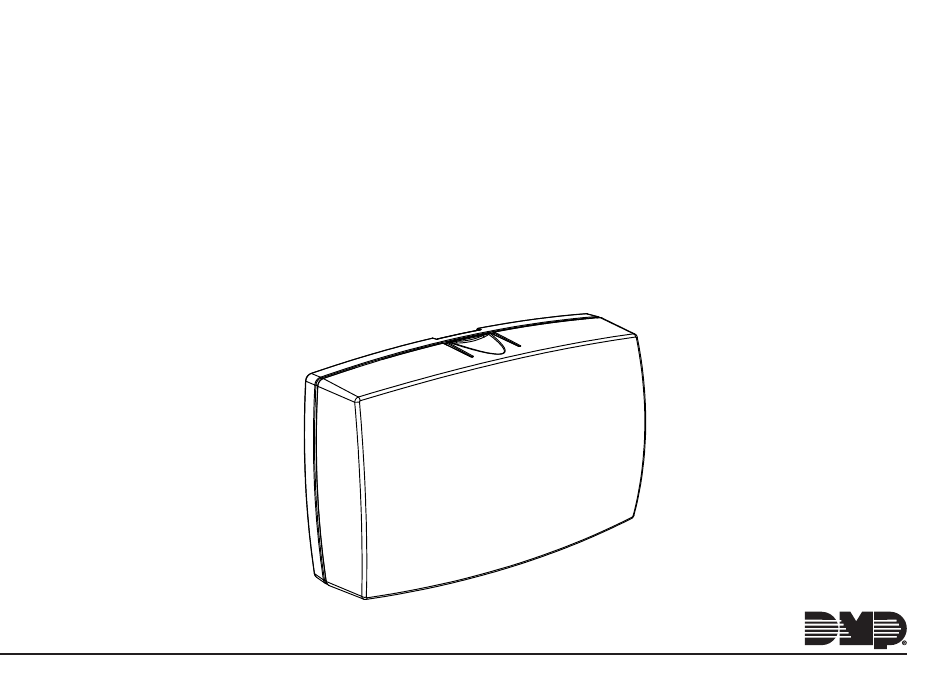

736P Radionics™ Popit
Interface Module
INSTALLATION AND PROGRAMMING GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 736P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics 736P

Summary of Contents for DMP Electronics 736P

  • Page 1 736P Radionics™ Popit Interface Module INSTALLATION AND PROGRAMMING GUIDE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS About the 736P ........... 1 Product Specifications ......28 Feature ..............1 Accessories ..........28 Feature ..............1 Compatibility ..........28 736P Features ..........2 Certifications ..........29 Install the 736P ...........3 Underwriters Laboratory (UL Listed) ..29 Mount the Module ..........3 Wire the Module ..........

  • Page 5: About The 736P

    The Model 736P Radionics™ POPIT Interface Module allows a Radionics POPIT System to interface to a DMP panel, while maintaining the existing Radionics wiring. The 736P is supervised and connects to either the DMP Keypad Bus or LX‑Bus and supports up to 32 Keypad Bus zones and up to 100 LX‑Bus zones.

  • Page 6: 736P Features

    736P FEATURES Indicator LEDs Receive Data DRXD DMP Bus Transmit Data DTXD ZRXD ZTXD Receive Data Radionics Bus Transmit Data DMP Bus Zone Expander +AUX DOUT Figure 1: 736P PCB and LEDs 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 7: Install The 736P

    INSTALL THE 736P Mount the Module The 736P comes in a high‑impact plastic housing that you can mount directly to a wall, backboard, or other flat surface. For easy installation, the back of the housing contains multiple holes that allow you to mount the module on a single‑gang switch box or ring.
  • Page 8 Mounting holes Figure 2: Mounting Hole Locations Figure 3: Standoff Installation 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 9: Wire The Module

    Wire the Module Use 18 to 22 gauge wire to connect the 736P directly to the Keypad Bus or use a dual‑ended 4‑wire harness to connect directly to the LX‑Bus. This connection allows the module to communicate with the panel and receive 12 VDC power. For more information about wiring, refer to Wiring Specifications. Refer to Figure 4 when wiring the 736P.
  • Page 10 Green Bus or LX-Bus Black ZX to OUT +AUX to AUX * All circuits are supervised Class B style 3.5. * All circuits are power limited Class 2. Figure 4: 736P Wiring 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 11: Connect Popex And Octopopit Modules

    ZX Terminal to OUT Terminal +AUX Terminal to AUX Terminal Select the type of Radionics ZONEX™ Bus that connects to the 736P module. To select a 63‑point (horizontal or vertical) bus, place a jumper across the top two 63/119 pins. To select the expanded, 119‑point bus, place the jumper across the bottom two 63/119 pins.
  • Page 12 Data In POPEX Common Module Radionics™ZONEX Bus DMP LX-Bus or Keypad Bus Existing 2-Wire ZONEX Bus Existing Radionics™ POPIT Modules POPIT POPIT POPIT POPIT POPIT Figure 5: 736P with Radionics POPIT System 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 13: Convert Zonex Points To Dmp Zones

    Convert Zonex Points to DMP Zones When powered up, the 736P communicates with the Radionics POPEX or OctoPOPIT module and creates a table of equivalent DMP zone addresses. The current zone states are received from the Radionics module and transmitted to the DMP panel (Normal, Open, Shorted).
  • Page 14 ZONE NO: * * *. To continue to the next zone, press the back arrow key and repeat step 3 until all zones have been identified. 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 15 — — — — — — — — — — — — — — — — — — — Table 1: ZONEX Bus #1 and #2 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 16 — — — — — — — — — — — — — — — — — — Table 1 Continued: ZONEX Bus #1 and #2 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 17 — — — — — — — — — — — — — — — — — — Table 1 Continued: ZONEX Bus #1 and #2 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 18 — — — — — — — — — — — — — — — — — — Table 1 End: ZONEX Bus #1 and #2 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 19 — — — — — — — — — — — — — — — — — — — — — Table 2: ZONEX Bus #1 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 20 — — — — — — — — — — — — — — — — — — — — Table 2 Continued: ZONEX Bus #1 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 21 — — — — — — — — — — — — — — — — — — — — Table 2 Continued: ZONEX Bus #1 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 22 — — — — — — — — — — — — — — — — — — — — Table 2 Continued: ZONEX Bus #1 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 23 — — — — — — — — — — — — — — — — — — — — Table 2 End: ZONEX Bus #1 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 24 — — — — — — — — — — — — — — — — — — — — — Table 3: ZONEX Bus #2 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 25 — — — — — — — — — — — — — — — — — — — — Table 3 Continued: ZONEX Bus #2 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 26 — — — — — — — — — — — — — — — — — — — — Table 3 Continued: ZONEX Bus #2 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 27 — — — — — — — — — — — — — — — — — — — — Table 3 Continued: ZONEX Bus #2 to DMP LX-Bus Zone Conversion Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 28 — — — — — — — — — — — — — — — — — — — — Table 3 End: ZONEX Bus #2 to DMP LX-Bus Zone Conversion 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 29: Test The Module

    Test the Module Perform a Standard Walk Test to confirm that all of the modules are communicating with the 736P and the 736P is communicating with the panel. Reset the panel. At a keypad, enter 8144 (WALK) and select STD. Trip each zone on the system. The keypad will annunciate each time a zone is tripped and display the number of zones successfully tripped.

  • Page 30: Additional Information

    Tamper Switch Connection To install a tamper switch, mount the tamper inside the enclosure and run a 2 pin tamper wire connector from the switch to the TAMPER header on the panel. 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 31: Radionics Terminology

    Compliance Listing Specifications To comply with ANSI/UL 365 Police‑Connected Burglary Systems or ANSI/UL 609 Local Burglary Alarm Systems, the 736P Module must be mounted in a listed enclosure with a tamper installed. For listed fire applications, the wiring connection must be 18 gauge or greater, unless the wire complies with the requirements of the NEC 1999, and the wiring consists of two or...

  • Page 32: Product Specifications

    11.43 cm W x 6.99 cm H x 4.45 cm D Wire Specifications Accepts 12 to 22 AWG wire ACCESSORIES Model 330 Dual‑Ended 4‑Wire Harness COMPATIBILITY Panels XR150/XR550 Series XT30/XT50 Series Radionics Modules D8125 POPEX Zone Expander D8128A OctoPOPIT for 63‑point bus D8128C OctoPOPIT for 63‑point or 119‑point bus 736P Installation and Programming Guide Digital Monitoring Products, Inc.

  • Page 33: Certifications

    Fire Protective Signaling ANSI/UL 985 Household Fire Warning ANSI/UL 1023 Household Burglar ANSI/UL 1076 Proprietary Burglar ANSI/UL 1610 Central Station Burglar ANSI/UL 1635 Digital Burglar Radionics, POPEX, POPIT, OctoPOPIT, and ZONEX are trademarks of Bosch Security Systems. Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 34 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 736P Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 35 Information furnished is believed to be accurate and reliable. This information is subject to change without notice. Digital Monitoring Products, Inc. 736P Installation and Programming Guide...
  • Page 40 LT-0427 1.02 20153 © 2020 Digital Monitoring Products, Inc.
