DMP Electronics 734 Quick Start Manual

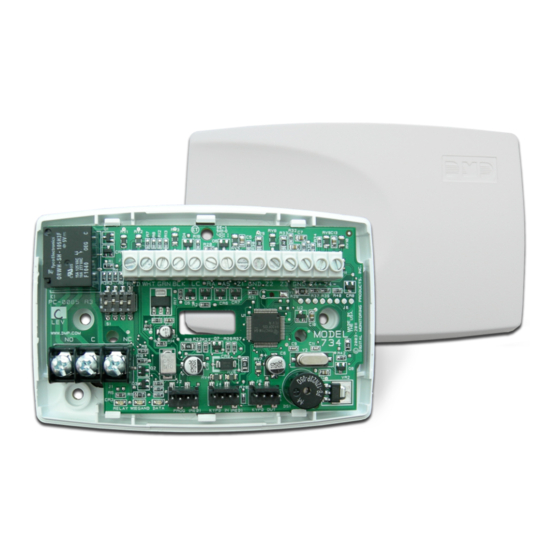

734 Access Control Module
Quick Start Guide
This quick start guide walks you through installing the access control module.
Full Installation and Programming Guide
To view the full
or visit DMP.com.
Address DIP
Door Relay
Terminal
Step 1: Mount the 734
The back and ends of the 734 housing have wire entrances. The back also contains multiple mounting holes that allow
you to mount the module on a single‑gang switch box. DMP recommends mounting the 734 near the protected door.
1. Remove the PCB from the plastic housing by loosening the clips on
one side and gently lifting it out of the housing base.
2. Insert the included screws in the desired mounting hole locations
and tighten them to secure the housing to the surface.
3. Reinstall the PCB in the housing base.
Step 2: Wire the Access Control Lock
The Form C relay draws up to 35 mA of current and contacts are rated for
10 Amps (resistive) at 12/24 VDC. When connecting multiple locks to the
Form C relay, the total current for all locks cannot exceed 10 Amps. The
three relay terminals marked NO C NC allow you to connect the device
wiring to the relay for module control. Use an additional power supply to
power magnetic locks and door strikes.
Step 3: Wire the 734
KYPD IN (Keypad In): Receives and transmits data to the panel Keypad bus/AX‑Bus.
KYPD OUT (Keypad Out): Receives and transmits data out to other keypad(s) or module(s). Install a dual‑connector
harness to allow connection to other devices up to the maximum number of devices supported.
Caution: When the 734 is powered from 24 VDC, do not connect devices to KYPD OUT header.

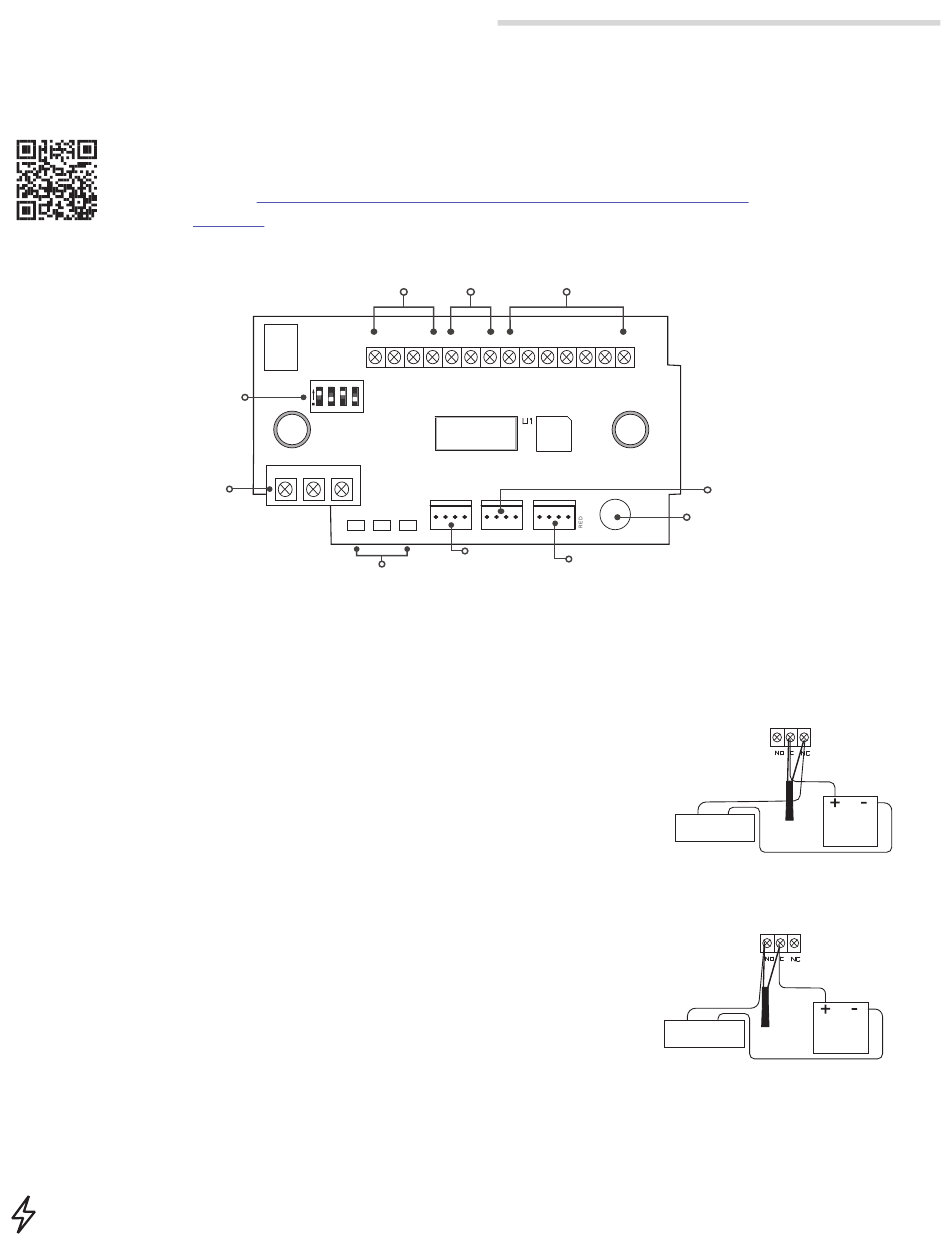

734 Access Control Module Installation and Programming
RED WHTGRN BLK
ON
Switches
1 2 3 4
NO C NC
RED
RELAY WIEGAND
ON READ LED
Indicator
LEDs
Status
Indicator
Reader
Outputs
Zones
Inputs
1 2 3 4 5 6 7 8 9 10
LC RA AS Z1 GND Z2 Z3
YEL GRN
PROG RED KYPD IN RED KYPD OUT
DATA
XMT LED
Keypad
Programming
Header
Guide, scan this QR code
11 12 13 14
GND Z4+ Z4–
To Panel
Keypad Bus
or AX-Bus
Piezo
Piezo
+ –
To Other
Keypad Bus
or AX-Bus
Mag lock positive
to Terminal NC
+ –
Magnetic Door
Lock
Figure 1: Typical Magnetic Lock Wiring
Door strike positive
to Terminal NO
+ –
DC Door Strike
Figure 2: Typical Door Strike Wiring
Normally Closed
Power supply positive
to Terminal C
12/24 VDC
Power Supply
Model 333
Suppressor
Mag lock negative to
power supply negative
Normally Open
Power supply positive
to Terminal C
12/24 VDC
Power Supply
Model 333
Suppressor
Door strike negative to
power supply negative
