DMP Electronics 736P Installation Manual

736P RADIONICS™ POPIT INTERFACE
MODULE
Installation Guide
DRXD
LX 63
DTXD
ZRXD
KEY 119
ZTXD
DMP Bus Zone Expander
+AUX ZX DOUT

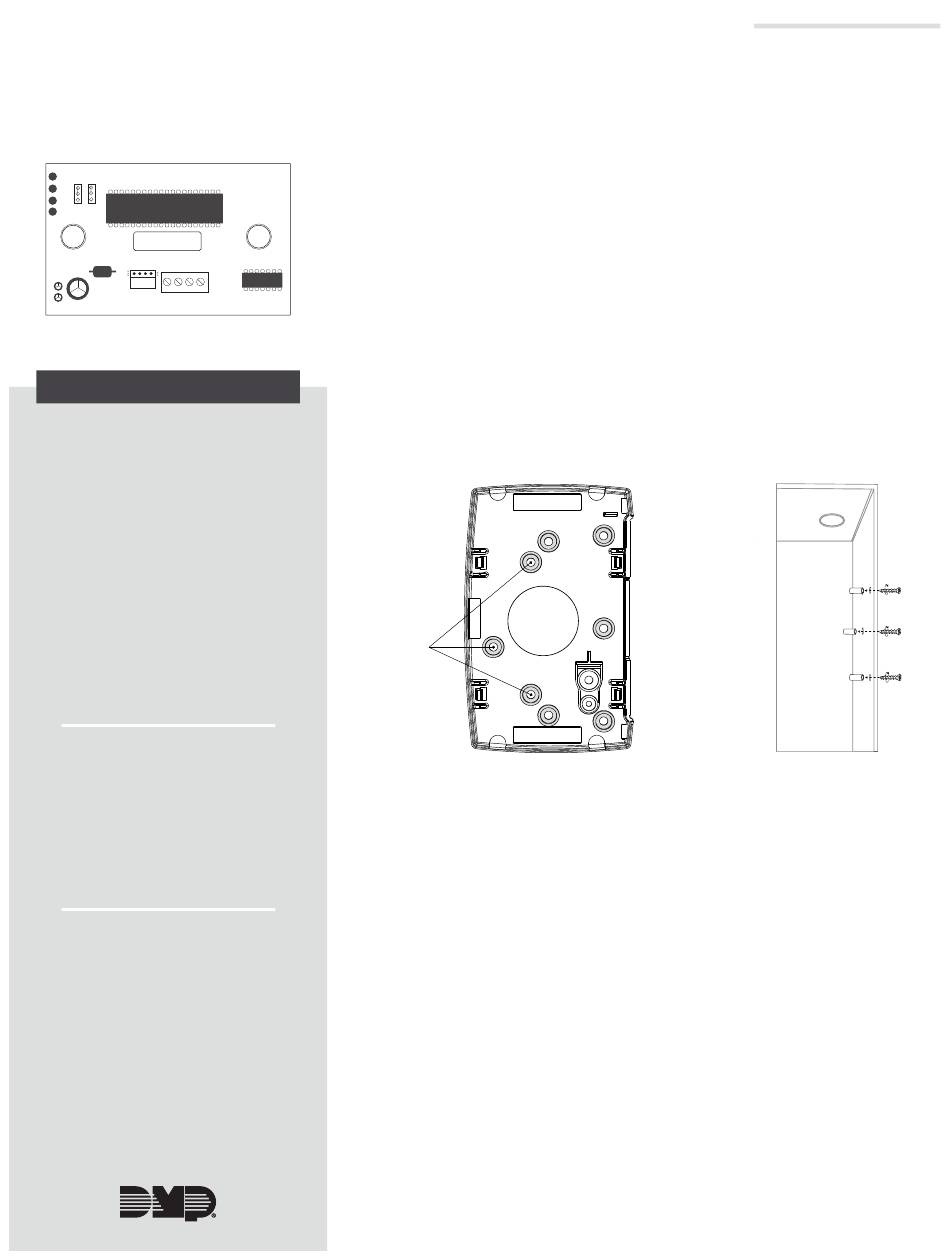

Figure 1: 736P Interface Module
DESCRIPTION
The Model 736P Radionics™ POPIT
Interface Module allows a Radionics
POPIT System to interface to a
DMP panel, while maintaining the
existing Radionics wiring.
The 736P is supervised and
connects to either the DMP Keypad
Bus or LX‑Bus and supports up
to 32 Keypad Bus zones and up to
100 LX‑Bus zones.
All fire device installations
must be in accordance with the
manufacturer's instructions, NFPA
standards, and the Authority Having
Jurisdiction (AHJ) requirements.
Compatibility
• XR150/XR550 Series
• XT30/XT50 Series
• For information about compatible
Radionics devices, see Additional
Information
What is Included?
• 736P Radionics POPIT Interface
Module
• One Model 330
Dual‑Ended 4‑Wire Harness
• Hardware Pack
1
COM
2
MOUNT THE MODULE
The 736P comes in a high‑impact plastic housing that you can
mount directly to a wall, backboard, or other flat surface. For easy
installation, the back of the housing contains multiple holes that
allow you to mount the module on a single‑gang switch box or
ring. The module can also be mounted in a DMP enclosure using
the standard 3‑hole mounting pattern. Refer to Figure 2 and
Figure 3 as needed during installation.
1. Hold the plastic standoffs against the inside of the enclosure
side wall.
2. Insert the included Phillips head screws from the outside of
the enclosure into the standoffs. Tighten the screws.
3. Carefully snap the module onto the standoffs.
Mounting
holes
Figure 2: Mounting Hole Locations
WIRE THE MODULE
Use 18 to 22 gauge wire to connect the 736P directly to the
Keypad Bus or use a dual‑ended 4‑wire harness to connect
directly to the LX‑Bus. This connection allows the module to
communicate with the panel and receive 12 VDC power. For more
information about wiring, refer to Wiring Specifications. Refer to
Figure 4 when wiring the 736P.
Connect to the Keypad Bus
1. Place a jumper across the bottom two LX/KEY pins.
2. Connect a 4‑wire harness to the 736P DMP BUS header.
3. At the panel, connect the wires to the corresponding
Keypad Bus terminals.
Connect to the LX‑Bus
1. Place a jumper across the top two LX/KEY pins.
2. Connect one end of a 4‑wire harness to the 736P DMP BUS
header.
3. At the panel, connect the other end of the 4‑wire harness
to the LX‑Bus.
Figure 3: Standoff Installation
