SolidRF Signal Plus Manual page 2

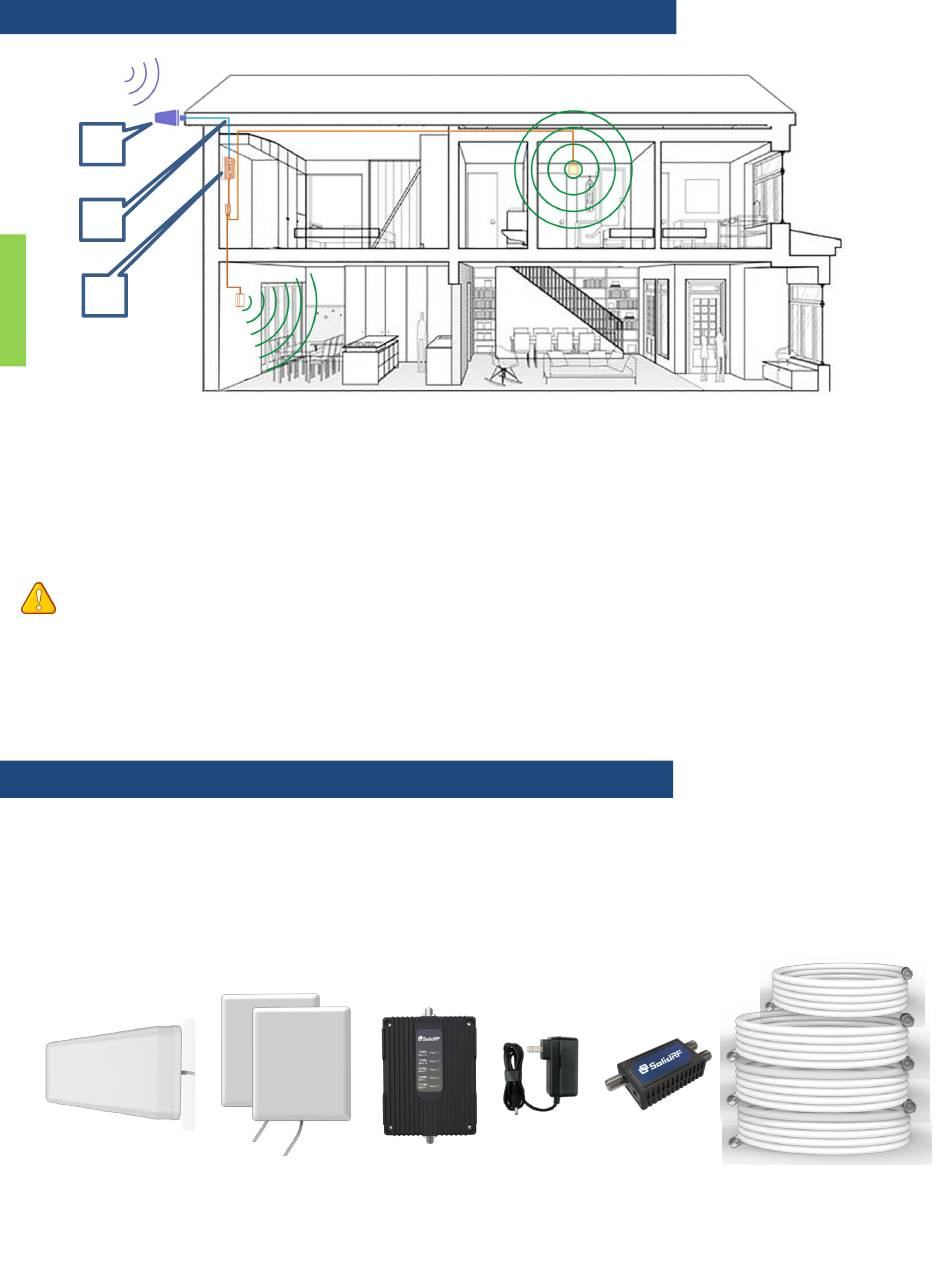

Working Diagram (How It Works)
1
2
3
1. The outdoor antenna catches the signal from the tower.
2. Sends outside signal to the booster through a coax cable.
3. The booster amplifies the signal then rebroadcasts the signal indoors to all mobile
devices within range.
4. The system also works in reverse; amplifying outgoing signal back to the tower.
The size and the coverage area and the strength of the boosted signal are
directly related to two key factors:
1. Signal strength received by the outdoor unit. So, setting up the outside
unit where the signal is the strongest will provide the best results.
2. Distance of separation between the outdoor unit and the indoor unit.
Package Contents
The kit includes the following items:
1. Outdoor Antenna, Indoor Antenna；
2. Booster；
3. Power supply；
4. Splitter
5. 3*30 ft&1*15 ft of RG6 cable；
Outdoor Antenna
2*Indoor Antenna
Booster Power supply RG6 cable
Splitter
