Crux Sightline RVCVW-73 Quick Start Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Automatically switches to Rear-view when car is in Reverse mode.
- Aftermarket Rear-view Camera included.
- OBD coder for single activation included.
- Plug & Play Installation.
SPECIAL NOTE:
In the event this unit is to be returned for any reason, the customer must "decode" the radio before
doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio.

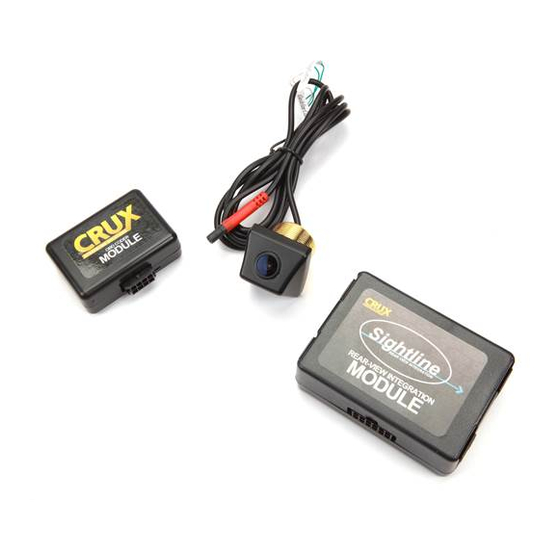

PARTS INCLUDED:
RVCVW-73 Module
INSTALLATION DIAGRAM:
BAND FACTORY
MEDIA
RADIO
PHONE
INTERFACE
Ground
To +12V Constant
(behind radio)
Sightline
R
Multi View Integration
Volkswagen Vehicles with MFD3 RNS315 & RNS510 Navigation System
RVCVW-73 Harness
Power Down Circuit
26-PIN
i
(female plug)
NAV
MUTE
SETUP
12-PIN
(male plug)
BLACK Wire
RED Wire
RED Wire
Reverse Trigger input
BLACK Wire
Power Down
Circuit
YELLOW Wire
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Rear View Integration Interface for Select
CUL-03 Camera
VIDEO
CONNECTION
THIN RED
WIRE
Factory Reverse
Light +12V
GREEN Wire
Reverse Power Output
(+12V 2 Amps)
1 of 3
RVCVW-73
OBD II Coder
RED Wire Tape O
(Not Used)
GROUND
LIP MOUNT
CAMERA
(included in kit)
rev.020521
