Lincoln 84700 Owner's/Operator's Manual

DESCRIPTION

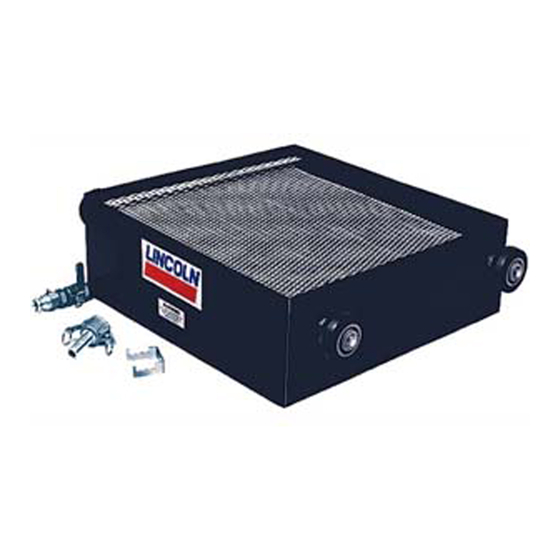

The Model 84700 Rolling Oil Drain Pan is designed to be used
in service pits having 36" to 49-1/2" between the pit walls.
Angle iron tracks must be attached to the sides of the pit
walls for the drain pan to roll on (See TYPICAL SERVICE PIT
DETAILS).
Oil drain pan has a capacity of 30 gallons (23 gallons to bottom
of screen) and is equipped with a 1-1/2" quarter-turn valve.
Drain pan contains a metal screen to eliminate oil splash and
to catch foreign objects such as tools and drain plugs. The
screen can be easily removed for drain pan clean out.

ASSEMBLY INSTRUCTIONS

1. Unpack drain pan and all loose parts.
2. Assemble quarter turn valve (245897) to one end of drain
pan. Assemble pipe cap (245899) to drain fitting on oppo-
site end of drain pan.
3. Purchase and install your choice of a 1-1/2" quick discon-
nect fitting and hose.

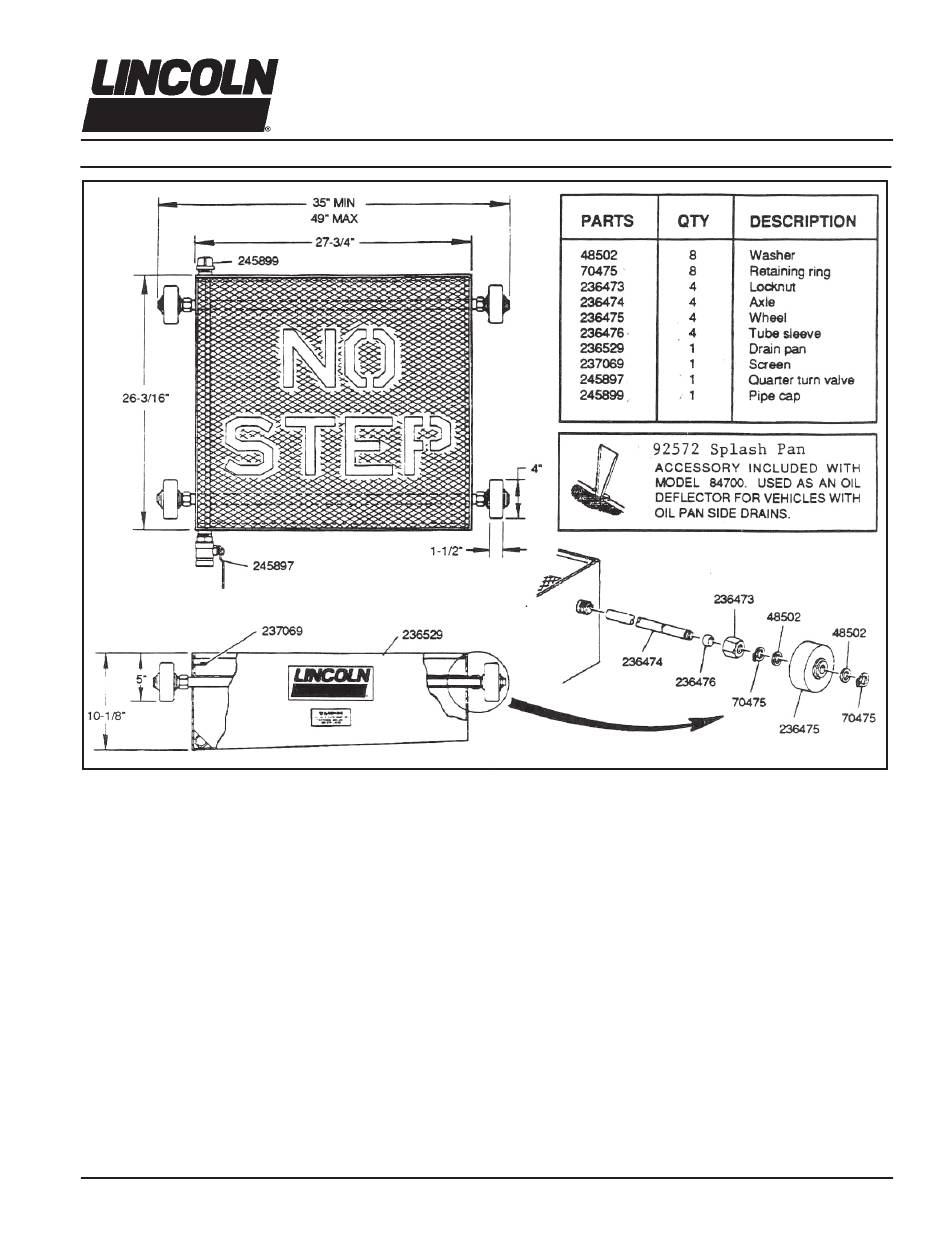

4. To install axle and wheel assemblies to pan, slide each axle
(236474) into the tubes on the drain pan. Slide one sleeve
(236476) on each end of axle (236474). Install locknut
(236473) hand tight on the axle. Install one retaining ring
JUN - 2009
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
OWNER/OPERATOR MANUAL
(70475), one washer (48502) and wheel (236475) to each
end of axle (236474). Secure wheels with one washer
(48502) and one retaining ring (70475).
5. Place drain pan into pit, sliding axles out until the wheels
will roll on tracks. Center pan inside tracks so there is equal
clearance on both sides of drain pan between the pan and
the track. Carefully roll the drain pan from one end of pit to
the other. Axle ends should be adjusted for minimum clear-
ance on both sides of the tracks or pit walls. Wheels must
remain firmly on the tracks and should not leave tracks if
pan is cocked in the pit. After adjusting axles, tighten the
four locknuts (236473) enough to prevent the axles from
moving in the axle tubes. Again, roll the drain pan from one
end of the pit to the other checking for binding or excess
clearance. Readjust axles, if necessary, by loosening the
locknut on the axle to be adjusted and moving the axle in or
out as required. Tighten the four locknuts securely.
NOTE: Once the axle locknuts have been wrench tight-
Form 403897
MODEL 84700
ROLLING OIL DRAIN PAN
ened, the tube ends will flare out making the axle
nuts harder to turn. This is a self-locking feature
and is normal.
