Oil filter crusher

Advertisement

DESCRIPTION

Model 4163 Is a production crusher capable of crushing four
filters at one time or one large heavy duty oil filter. The
crusher is designed for automotive and light truck shops to
crush and dispose of used oil filters in an environmentally
correct manner. The crusher provides the following features:
Powerful 17.5 ton air bag crushing plate technology
assures the force necessary to do the job when crushing
four filters.
Operates with external air only. No electric power Is
required.
Safe double lock door protects operator
Removes 95-98% of residual oil from oil filter.

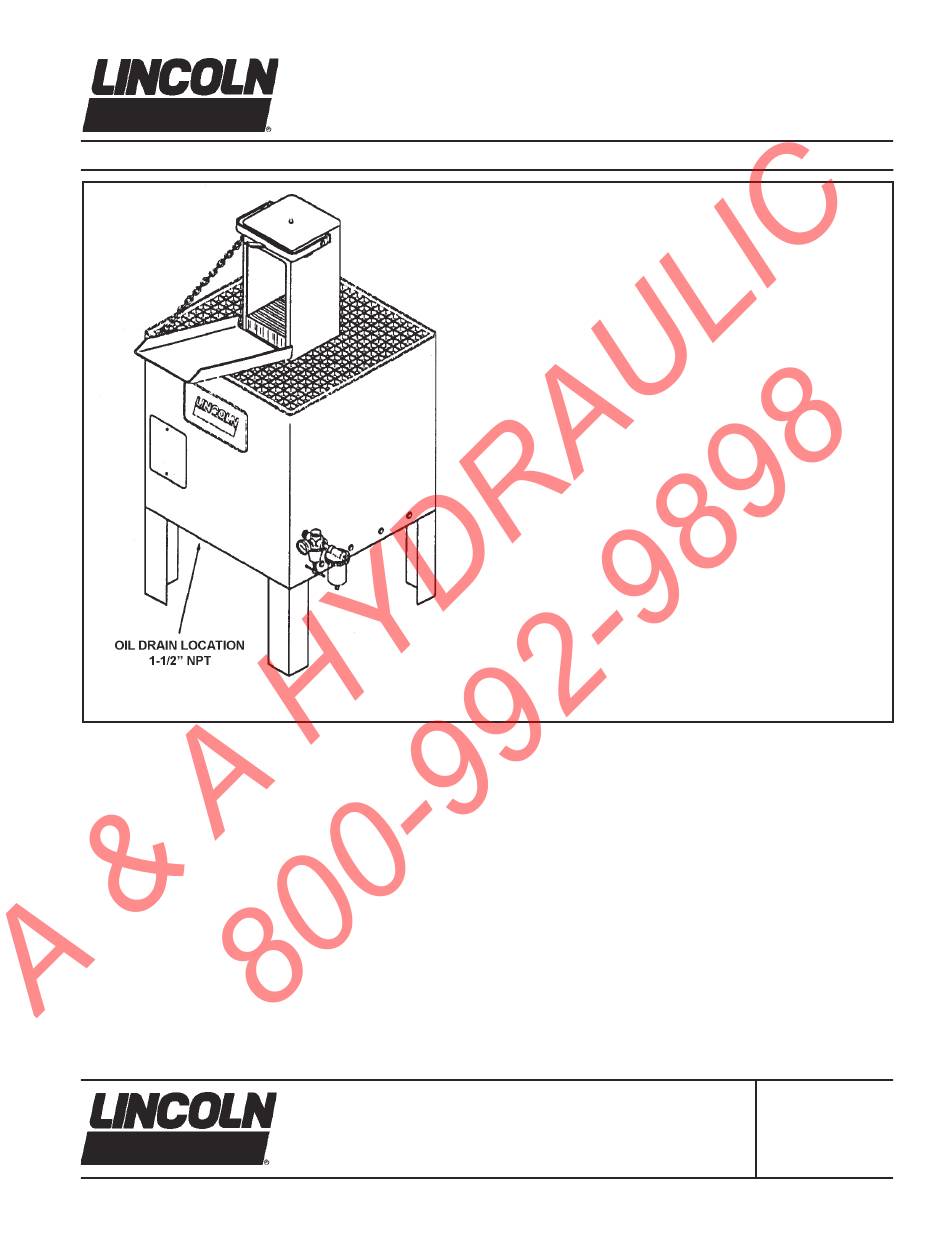

Easy connection for oil drain off.
Four oil filter capacity
APRIL 2004
OWNER/OPERATOR MANUAL
One Lincoln Way
St. Louis, MO 63120-1578 USA
Phone +1.314.679.4200
Fax +1.800.424.5359
Form 403456
OIL FILTER CRUSHER

SPECIFICATIONS

Maximum crushing force
Filter capacity
Filter type
Filter crush
Residual oil removed
from crushed filter
Time to crush filter #
Cycle Time (approximately) #
Overall width
Overall height
Overall depth
Chamber width
Chamber height
Chamber depth
Required air pressure
Required air flow
Total weight
Filter Specifications:
8" maximum filter diameter (single)
15-3/4" maximum height with spacer in place
18-3/4" maximum height with spacer removed
# Based on compressor size.

OWNER/OPERATOR RESPONSIBILITY

It is the owner/operator responsibility to properly use and
maintain this equipment.
The instructions and warnings contained in this manual
shall be read and understood by the owner/operator prior to
operating this equipment.
If an owner/operator does not understand English, the
contents of this manual shall be explained in the owner/
operator's native language to assure the owner/operator
comprehends.
It is the owner/operator responsibility to maintain the
legibility of all warning and Instruction labels.
The owner/operator shall retain this manual for future
reference to Important warnings, operating and actions.
© Copyright 2004
Printed in USA
Web site:
www.lincolnindustrial.com
MODEL 4163
SERIES "D"
35,000 lbs.
One heavy duty filter or
four auto filters
Heavy duty
Up to 80%
95-98%
35 - 55 seconds
90 Seconds
27-1/2"
66"
27-1/2"
9"
20-1/8"
9"
100-120 p.s.i.
44 cfm
640 lbs.
- B5
Section
- 36
Page
