88 5531 13
Bedford Pier Unit
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

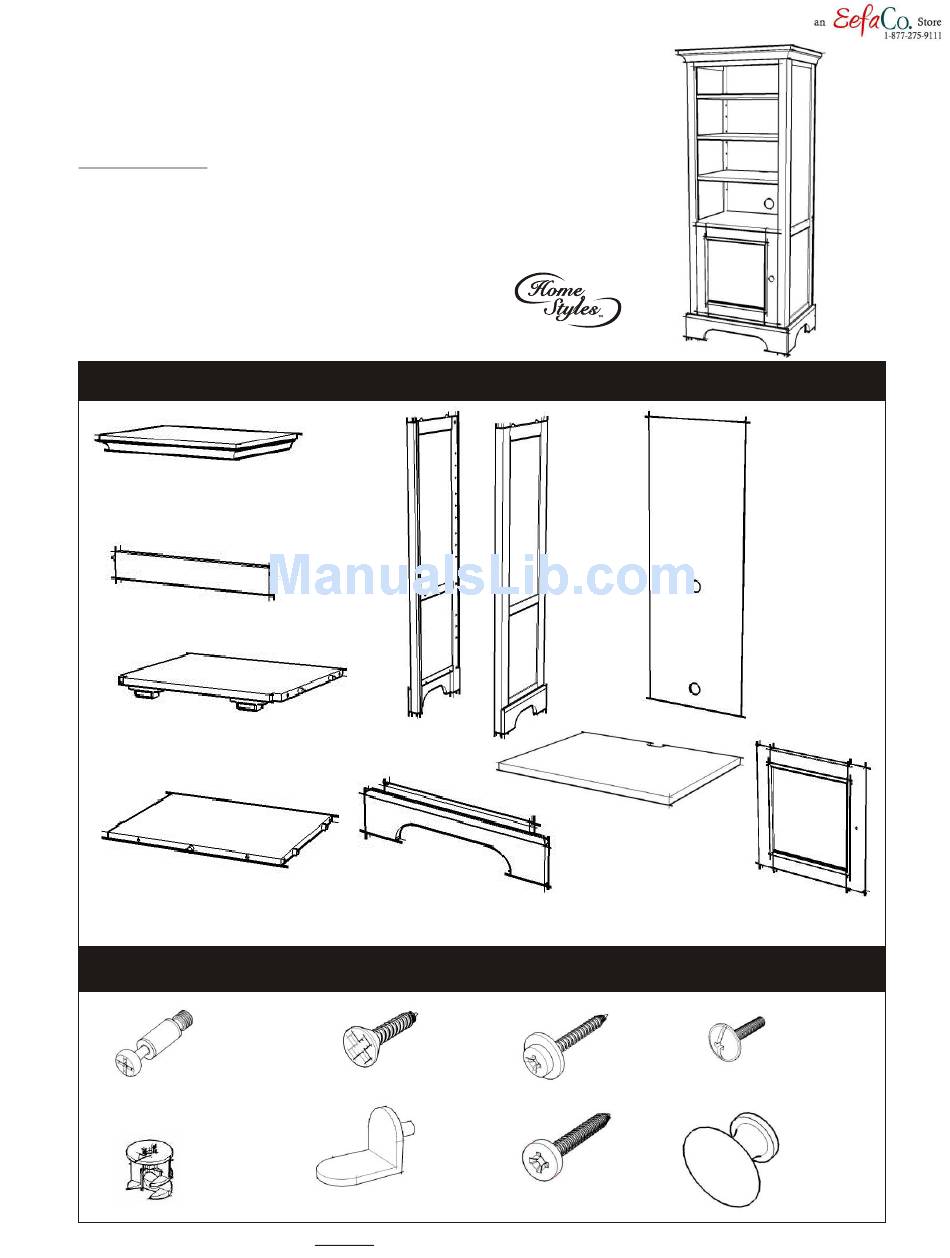

Part List
A.
Top
1 pc.
E.
Front Piece
1 pc.
F.
Fixed Shelf
1 pc.
G.
Base
1 pc.
Cam Lock Screw
18 pcs.(+1 extra)
Cam Lock
18 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
Casual Attire For Today's Home
B.
Side Panel
1 pc.
H.
Plinth
1 pc.
Wood Screw
for hinge
4 pcs.(+1 extra)
Adjustable Pin
16 pcs.(+1 extra)
C.
Side Panel
1 pc.
I.
Shelf
4 pcs.
J.
Door
1 pc.
Wood Screw
for back panel
9 pcs.(+1 extra)
Wood Screw
for Plinth
2 pcs.(+1 extra)
D.
Back Panel
1 pc.
Machine Screw
1 pc.
Pull Handle
1 pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5531 13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles 88 5531 13

  • Page 1 88 5531 13 Bedford Pier Unit IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
  • Page 2 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. Cam Lock Screw STEP 1 Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C), Plinth (H), then tighten it up.
  • Page 3 Assembly Instructions 3/4 STEP 2 Attach Plinth (H) to Base (G) with Cam Locks. Cam Lock Attach Front Piece (E), Fixed Shelf (F), and Base (G) to Side Panel (B) with Cam Locks. (See figure 1) Slide Back Panel (D) into place.
  • Page 4 Assembly Instructions 4/4 Assembly Instructions 4/4 STEP 4 Turn the unit to its’ upright position. Figure 2 Place Top (A) onto the unit with Cam Locks. Attach Pull Handle to the door, using Machine Screw. (See figure 2) Attach Door (J) to the unit by attaching the hinges to the side panel with Wood Screws (See figure 3).
