Bedford
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

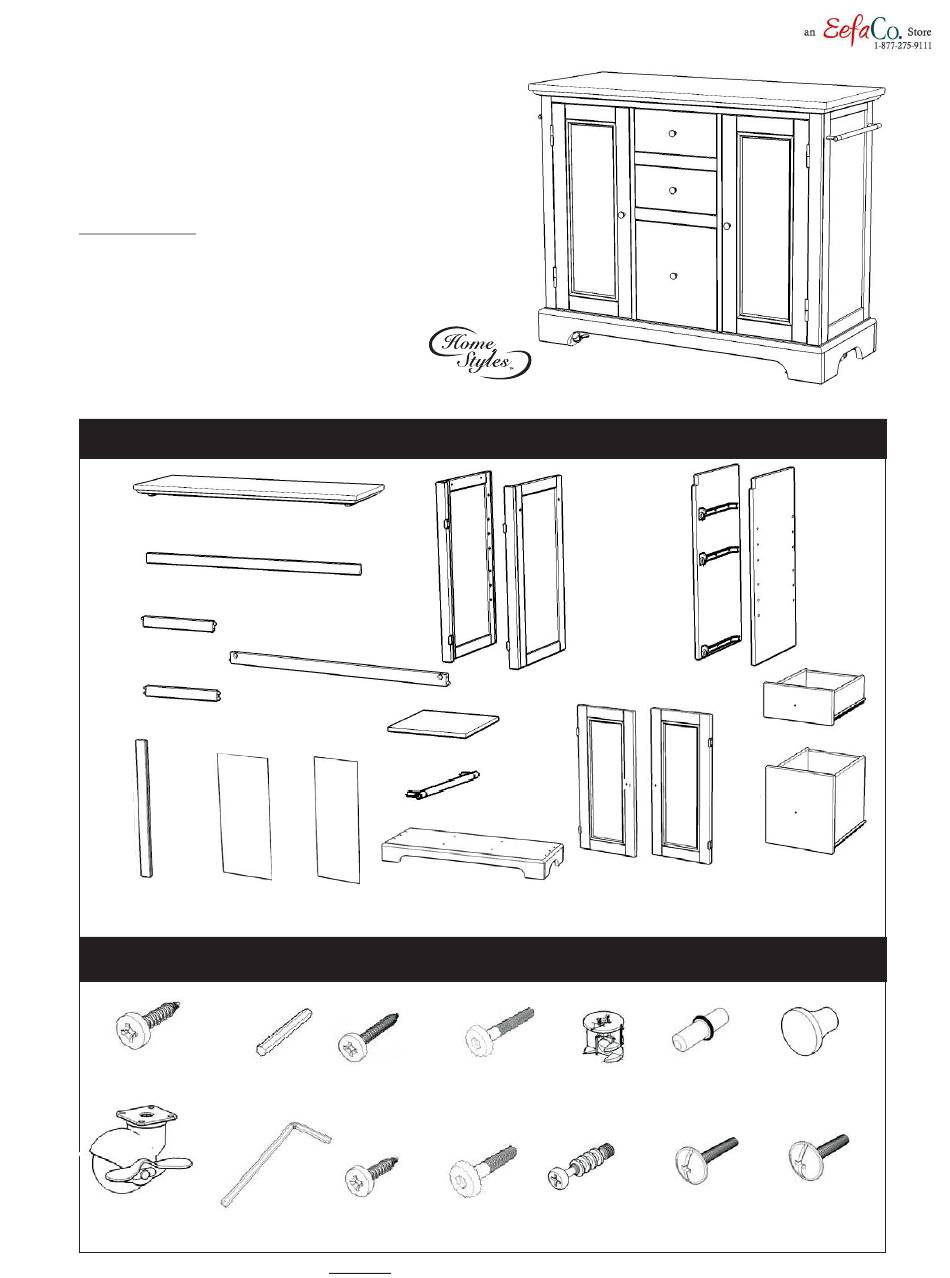

PART LIST
A.
Top
1 pc.
F.
Front Stretcher
1 pc.
G1.
Front Rail
1 pc.
G2.
Front Rail
1 pc.
J.
I.
Back Panel
Back Rail
2 pcs.
2 pcs.
HARDWARE LIST
Wood Screw
Small
for Caster
Hex Wrench
16 pcs. (+1 extra)
1 pc.
Caster
two lock
two non-lock
Hex Wrench
1 pc.
4 pcs.
Tools Required For Assembly : Phillips screwdriver
Casual Attire For Today's Home
B.
Side Panel
1 pc.
H.
Back Stretcher
2 pcs.
N.
K.
Base
Back Panel
1 pc.
1 pc.
Wood Screw (Long)
Head Cap Bolt (long)
2 pcs. (+1 extra)
28 pcs. (+1 extra)
Head Cap Bolt
Wood Screw
6 pcs. (+1 extra)
12 pcs. (+1 extra)
C.
Side Panel
1 pc.
D.
Middle Panel
1 pc.
L.
Shelf
4 pcs.
M.
Side Bar
2 pcs.
P.
O.
Door
Door
1 pc.
1 pc.
Cam Lock
15 pcs.(+1 extra)
Machine Screw
Cam Lock Screw
for Side Bar
15 pcs.(+1 extra)
4 pcs.
E.
Middle Panel
1 pc.
Q.
Drawer
2 pcs.
R.
Drawer
1 pc.
Drawers require assembly.
(
Please refer to the last pages
of these assembly instructions.
Adjustable Pin
Pull Handle
16 pcs. (+2 extra)
5 pcs.
Machine Screw
for Pull Handle
5 pcs.
)
