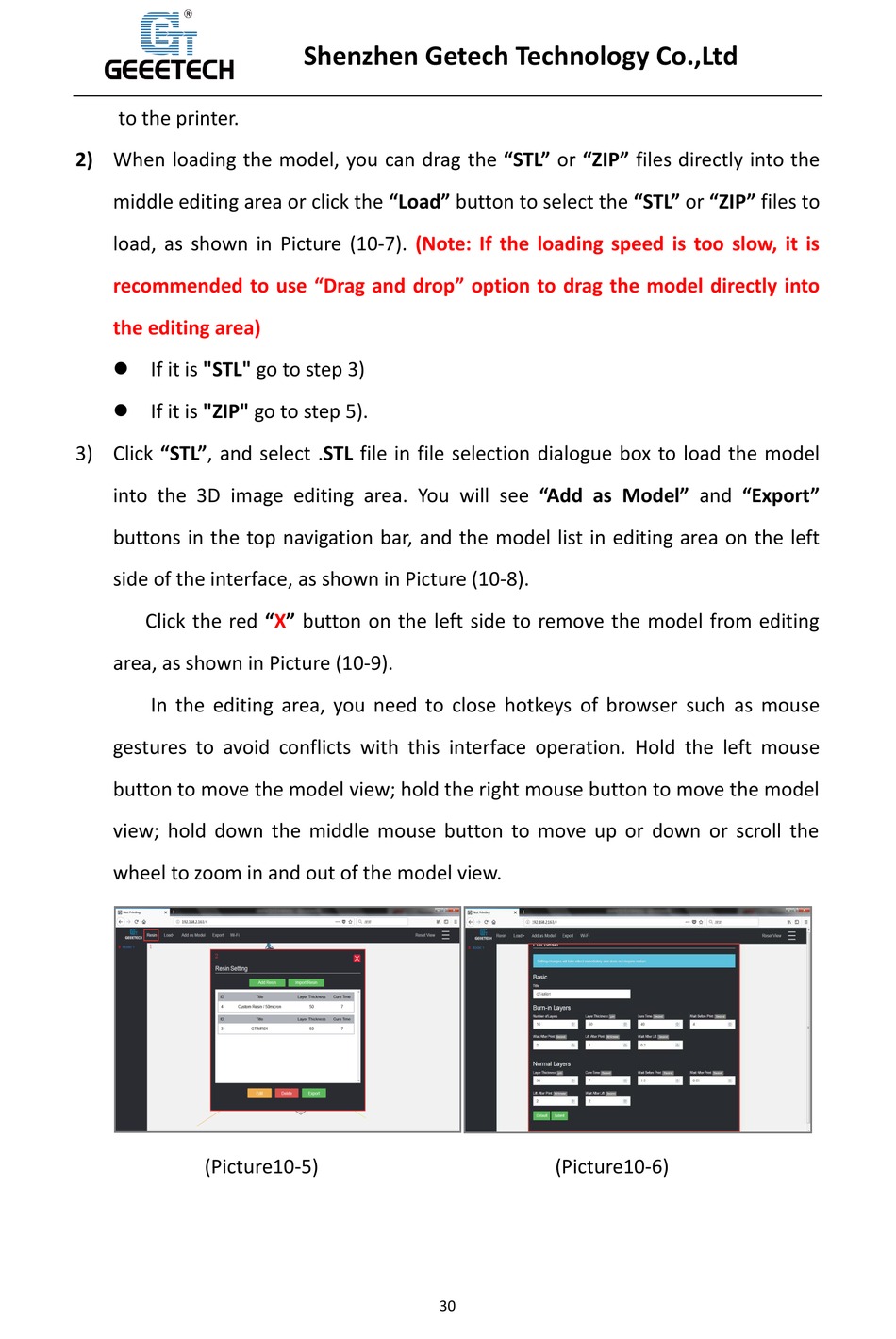

Geeetech DP200 User Manual page 30

to the printer.
2) When loading the model, you can drag the "STL" or "ZIP" files directly into the
middle editing area or click the "Load" button to select the "STL" or "ZIP" files to
load, as shown in Picture (10-7).
recommended to use "Drag and drop" option to drag the model directly into
the editing area)
 If it is "STL" go to step 3)
 If it is "ZIP" go to step 5).
3) Click "STL", and select .STL file in file selection dialogue box to load the model
into the 3D image editing area. You will see "Add as Model" and "Export"
buttons in the top navigation bar, and the model list in editing area on the left
side of the interface, as shown in Picture (10-8).
Click the red "X" button on the left side to remove the model from editing
area, as shown in Picture (10-9).
In the editing area, you need to close hotkeys of browser such as mouse
gestures to avoid conflicts with this interface operation. Hold the left mouse
button to move the model view; hold the right mouse button to move the model
view; hold down the middle mouse button to move up or down or scroll the
wheel to zoom in and out of the model view.
(Picture10-5)
Shenzhen Getech Technology Co.,Ltd
(Note: If the loading speed is too slow, it is
30
(Picture10-6)
