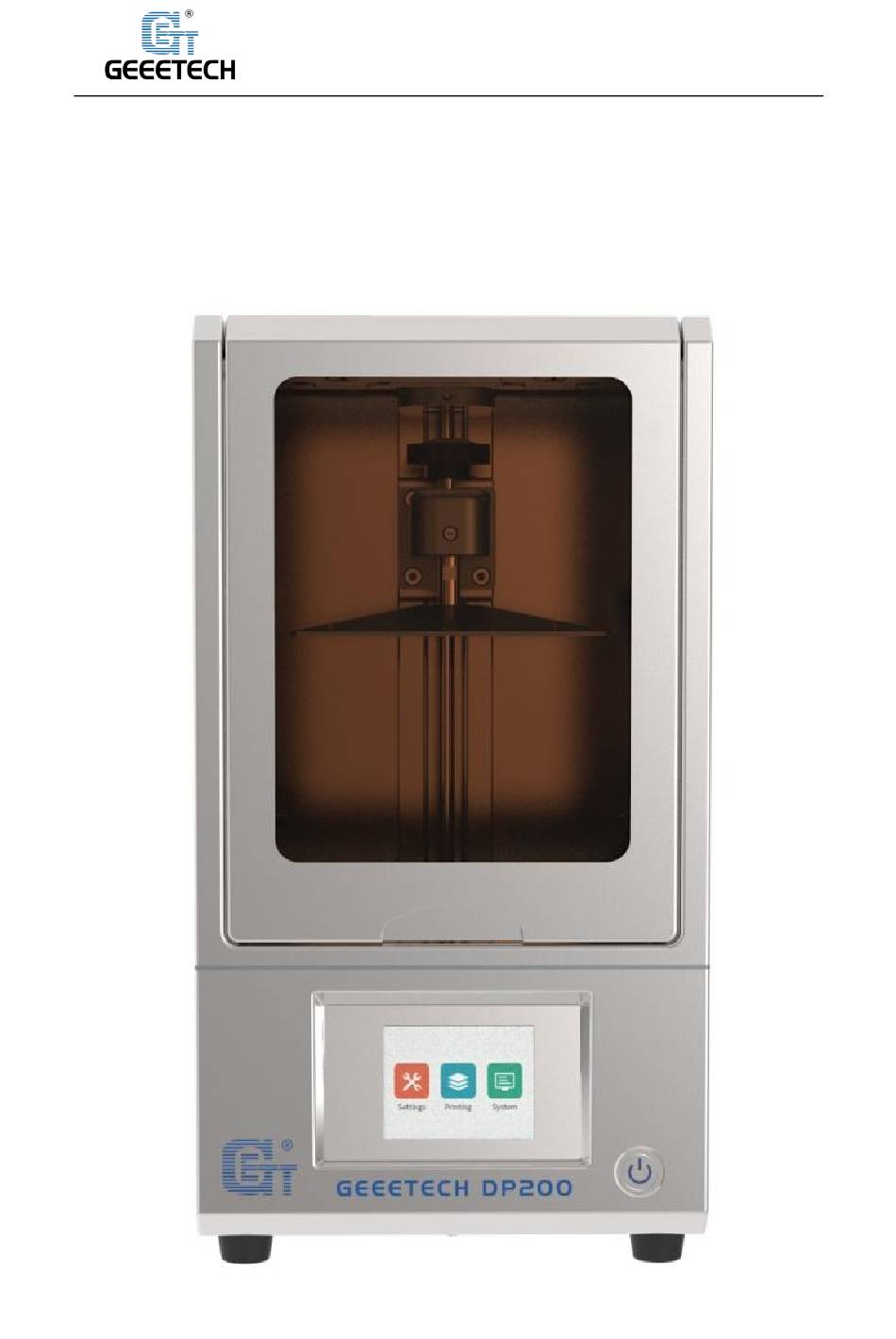

  • Page 1 Shenzhen Getech Technology Co.,Ltd Geeetech DP200 3D Printer User Manual V1.00...

  • Page 2: Table Of Contents

    Shenzhen Getech Technology Co.,Ltd Content 1 Packing list………………………………………………………………………………………………………………………...4 2 Attentions………………………………………………………………………………….………………………………………5 3 Printer Parameters.........................6 4 Printer Display ........................7 5 Introduction of touch screen menu ..................8 5.1 Tree diagram........................ 8 5.2 Main Functions ......................8 6 Printing instruction....................... 14 6.1 Preparation before printing ..................14 6.2 Leveling ........................
  • Page 3 Shenzhen Getech Technology Co.,Ltd Thank you for choosing Geeetech products! [Important] Please read the instruction manual carefully before using this machine. Official site: https://www.geeetech.com/ Email us for technical support: https://www.geeetech.com/contact_us.htm Facebook Group:...

  • Page 4: Packing List

    Shenzhen Getech Technology Co.,Ltd 1 Packing list printing platform*1 DP200 3D printer*1 resin case*1 rubber gloves*3 resin*1 USB Flash Drive*1 pairs filter funnel*2 release film *2 mask*1 plastic scraper HSYV-5E *1 tool* 1 set knife*1 tweezers*1 power supply*1 power cord*1 roll...

  • Page 5: Attentions

    Shenzhen Getech Technology Co.,Ltd After-sales contact leveling paper*1 external antenna*1 card*1 2 Attentions Please check the parts/accessories when you receive the printer (As shown above). If any spare parts are missing, please contact your sales representative. Please put the machine on a flat surface in a cool, well ventilated environment （room temperature is 10 °C ~ 35 °C）...

  • Page 6: Printer Parameters

    Shenzhen Getech Technology Co.,Ltd 3 Printer Parameters 1) Printing Parameters Printing technology: LCD light curing surface forming technology Printing volume: 115mm*65mm*150mm XY resolution: 0.047mm（2560*1440） Z axis precision: 0.001mm Layer thickness: 0.01~0.2mm Printing speed: 20mm / h UV lamp rated power: 40W Resin: 405nm wavelength ultraviolet resin File type: .STL, .ZIP (can be generated by CW, NanoDlp, MonkeyPrinter slicing) Working environment...

  • Page 7: Printer Display

    Shenzhen Getech Technology Co.,Ltd 4 Printer Display (Picture 4-1) (Picture 4-2) (Picture 4-3) (Picture 4-4) ○ ○ ○ ○ ○ upper flip cover; 2 upper flip handle slot; 3 operating screen; 4 power switch; heat ○ ○ ○ ○ ○ 6 handles;...

  • Page 8: Introduction Of Touch Screen Menu

    Shenzhen Getech Technology Co.,Ltd ○ ○ ○ external antenna interface; 11 printing platform fixed knob; 12 leveling stopper screw; 13 printing ○ ○ ○ ○ ○ platform; 14 resin case fixing knob; 15 resin case; 16 base; 17 light guide cover; 18 UV light board ○...
  • Page 9 Shenzhen Getech Technology Co.,Ltd (Picture5-2) (Picture5-3) (Picture5-4) (Picture5-5) (Picture5-6) 4 submenus at setting interface: 1) Z-axis interface: as shown in Picture (5-3), click “Reset” in this interface to return the printing platform to “Z=0” position. If you need to raise and lower the Z axis, you first need to select the appropriate accuracy (0.1 mm, 1.0 mm, 10 mm, 30 mm), then click "raise"...
  • Page 10 Shenzhen Getech Technology Co.,Ltd parameters of the factory-delivered resin have been preset, and need not to be changed during printing. In addition, customized parameter settings can be made if you use other resins (Note: “Layer thickness” in the normal layer cannot be modified).
  • Page 11 Shenzhen Getech Technology Co.,Ltd After the slicing completed, click the “Print” button on the right, and then the machine will automatically start printing, as shown in Picture (5-11). Current resin parameter configuration and total model layers can also be viewed below. If the resin is not enough to complete model printing or you want to check that the model is glued to the printing platform, Click the “pause “button, as shown in picture (5-12), (5-13).
  • Page 12 Shenzhen Getech Technology Co.,Ltd (Picture5-13) USB model interface: If there is no model in the print interface. You need to insert the USB into the USB port on the back of the machine. Click the “USB” icon to enter the USB interface and select the model file to be loaded. The printer shows whether to create a New file, click "Yes"...
  • Page 13 Shenzhen Getech Technology Co.,Ltd (Pictur5-16) (Picture5-17) 5.2.3 System interface: (Picture5-18) (Picture5-19) (Picture5-20) (Picture5-21) 4 submenus at system interface: 1) Language: Click to switch between Chinese/English. 2) Sound: Click to turn the button sound on/off. 3) Information: as shown in Picture (5-19). This interface displays basic information about the machine.

  • Page 14: Printing Instruction

    Shenzhen Getech Technology Co.,Ltd copying it to the USB driver, insert USB into printer to upgrade operation system in this interface, as shown in Picture (5-20).If the machine is already the latest system, as shown in Picture (5-21). (Note: After each upgrade, you need to clear the browser cache before using the computer web.) 6 Printing instruction 6.1 Preparation before printing...

  • Page 15: Leveling

    Shenzhen Getech Technology Co.,Ltd 4) After plugging in the power supply to the back of the machine, turn on the power switch on the front of the machine. as shown in Picture (6-3) (Picture6-3) 6.2 Leveling 1) As shown in Picture (6-4), use a 7-word wrench to loosen the leveling stopper screws on the front side and the right side of the printing platform suit until the printing platform can rotate freely.
  • Page 16 Shenzhen Getech Technology Co.,Ltd （ Picture （ Picture 6-7） 6-8） （ Picture （ Picture 6-9） 6-10） 4) After the Z-axis resetting completes, manually adjust the four sides of the printing platform and the four sides of the 2K forming screen to the parallel position as shown in Picture (6-8), the two red virtual reference lines are parallel, and gently press the top of the platform with your hand to make the four corners of the platform evenly applied to the upper surface of the 2K forming screen.

  • Page 17: Check Uv Lamp

    Shenzhen Getech Technology Co.,Ltd but difficult to extract, if so, the leveling is completed, otherwise you need to repeat the above steps. 6.3 Check UV lamp 1) After the leveling is completed, raise the Z axis to approximately 100 mm and check that the UV lamp and the 2K forming screen are working properly.

  • Page 18: First Print

    Shenzhen Getech Technology Co.,Ltd base until it touches the resin case limit screw on the bottom, and finally tighten the fixing knobs on both sides, the resin box should not be loosened after tightening. As shown in Picture (6-14). (Picture6-14) 7 First print In order to ensure the first print is successful, please check before printing: ○...

  • Page 19: Device Printing

    Shenzhen Getech Technology Co.,Ltd 7.1 Device printing Put on rubber gloves and masks, Shake the resin well and then slowly pour the resin into the resin case to about 1/3 of the height of the box click "reset", Click "reset" again to drain the excess bubbles on the bottom of the printing platform.

  • Page 20: Model Processing

    Shenzhen Getech Technology Co.,Ltd 7.2 Model processing (Picture7-1) (Picture7-2) 1) After printing is finished, wait until the residual resin on the printing platform no longer drops, Picture (7-1). And loosen the fixing knob on the platform counterclockwise to remove the entire printing platform. As shown in Picture (7-2).

  • Page 21: Faq(Frequently Asked Questions)And Machine Maintenance

    Shenzhen Getech Technology Co.,Ltd (Picture7-3) 8 FAQ (Frequently Asked Questions) and Machine maintenance 8.1 FAQ (Frequently Asked Questions) Model doesn't stick 1) The exposure time of first layer is not enough, you need to increase the first layer exposure time, increase the number of layers. 2) The contact area between first layer of models and the printing platform is too small.

  • Page 22: Machine Maintenance

    Shenzhen Getech Technology Co.,Ltd 8) The surface of the 2K forming screen is stained and needs to be cleaned. 8.2 Maintenance after printing 1) If there is a solidified residues attached to the release film in the resin case after printing, use a plastic scrapper knife to remove the sharp film.

  • Page 23: Maintenance Instruction

    Shenzhen Getech Technology Co.,Ltd bottle. As shown in Picture (8-3). (Picture8-3) 5) Clean inside of the printer after each time of using, including the printing platform, 2K forming screen, resin box, etc. 6) If you need to change the color of resin, clean out the original resin in the resin case and then pour the new resin in.
  • Page 24 Shenzhen Getech Technology Co.,Ltd (Picture 9-1) (Picture 9-2) 4) Install a new release film: Place a new release film between the upper and lower clamps, paying attention to the stacking sequence of the clamps, with the counter bore side facing up. The release film needs to have a certain amount of slack during installation.
  • Page 25 Shenzhen Getech Technology Co.,Ltd (Picture9-5) (Picture9-6) 5） Put the replaced release film clamp back to the bottom of the resin case, the counter bore facing up. See picture (9-7).Pierce the release film inside the clamp fixing hole with tweezers or other sharp objects, and mount the fixing screws diagonally to the resin case.

  • Page 26: Replace 2K Forming Screen

    Shenzhen Getech Technology Co.,Ltd (Picture9-9) (Picture9-10) 9.2 Replace 2K forming screen (Picture9-11) (Picture9-12) (Picture9-13) (Picture9-14) (Picture9-15) 1) Loosen the screws of the radiator cap on the left side of the machine. See...

  • Page 27: Web Printing

    Shenzhen Getech Technology Co.,Ltd picture (9-11). 2) Gently pry the plug of the 2K forming screen on the adapter plate. See picture (9-12). 3) Use a straight screwdriver or squeegee to gently pry the old 2K forming screen suit along the edge. See picture (9-13). 4) See picture (9-14)，Gently insert a new 2K forming screen suit line into the left slot, insert the cable of 2K forming screen on the left side of the machine into the original position of the adapter plate.
  • Page 28 Shenzhen Getech Technology Co.,Ltd (Picture10-1) (Picture10-2) 3) Click “Wi-Fi” button to bring up Wi-Fi drop-down list. Select the WIFI SSID of target router. Enter corresponding password (Note: the computer and printer need to be in the same subnet). Now because the printer has switched networks, current page cannot be used.

  • Page 29: Operating Instructions

    Shenzhen Getech Technology Co.,Ltd 10.2 Operating Instructions Next, we load the model file into the printer to slice and print it. The process is as follows: 1) Click the “Resin” button in the top navigation bar to enter the resin parameter configuration window, as shown in Picture (10-5).
  • Page 30 Shenzhen Getech Technology Co.,Ltd to the printer. 2) When loading the model, you can drag the “STL” or “ZIP” files directly into the middle editing area or click the “Load” button to select the “STL” or “ZIP” files to load, as shown in Picture (10-7). (Note: If the loading speed is too slow, it is recommended to use “Drag and drop”...
  • Page 31 Shenzhen Getech Technology Co.,Ltd (Picture10-7) (Picture10-8) (Picture10-9) 4) Click the toolbar icon on the right side of the interface to expand the toolbar. As shown in Picture (10-10), (10-11). There are 4 buttons in the toolbar, namely "Model", "Tool", "Support", and "Operation". The specific functions are as follows: (Picture10-10) (Picture10-11)
  • Page 32 Shenzhen Getech Technology Co.,Ltd "Download". As shown in Picture (10-12). (Picture10-12)  “Tool”: This page can control the model view, move the position of model, rotate the model, and resize model. See Picture (10-13) and (10-14). (Picture10-13) (Picture10-14)  View control includes four operation buttons, namely "Top", "Front", "Bottom", and "Reset".
  • Page 33 Shenzhen Getech Technology Co.,Ltd  Resize has three fields, namely X, Y, and Z. The values represent the length of the model in each dimension (mm). When “Keep Radio” is selected, X, Y, and Z axis figures will be reduced or enlarged according to the original scale.
  • Page 34 Shenzhen Getech Technology Co.,Ltd and enter the corresponding dimensions in the X, Y, and Z axis directions in “Base X”, “Base Y”, and “Base Z” respectively. Click "Add Base Support" to add a sized base block to the bottom of the model to increase model adhesion.
  • Page 35 Shenzhen Getech Technology Co.,Ltd lights and forming screens at the same time”, and “Projector OFF: Full Off”. “Full Black: Turn on only the LED light” and “Full White: Turn on the LED light and the forming screen at the same time” on the machine side as shown Picture (10-18), Picture (10-19).
  • Page 36 Shenzhen Getech Technology Co.,Ltd (Picture10-20) (Picture10-21) (Picture10-22) (Picture10-23) (Picture10-24) 5) As shown in Picture (10-25), click “ZIP”, fill in “Model Name” in the pop-up dialog box “Load ZIP to Model”, and click “Browse” in “ZIP File” to select the target ZIP model file. Select corresponding resin configuration in "Resin". Lastly, click "Submit"...
  • Page 37 Shenzhen Getech Technology Co.,Ltd load the model into editing area, as shown in Picture (10-27). (Note: ZIP file does not support “3D View”; this is only applicable to STL file)In addition, in “Model List”, you can click “Edit” to edit the parameters of models, as shown in Picture (10-28).Click “Delete”...
  • Page 38 Shenzhen Getech Technology Co.,Ltd button in the top navigation bar to start slicing the target model until it is finished. Figure (10-31), Figure (10-32). (Note: It is recommended not to operate on touch screen of printer during slicing process to avoid slicing failure) When the status of the dialog box shows "Processed", it means slice is successful.

  • Page 39: Declaration

    All information in this Manual is subject to change at any time without notice and is provided for convenience purposes only. Geeetech reserves the right to modify or revise this Manual in its sole discretion and at any time. You agree to be bound by any modifications and/or revisions.

  • Page 40: Disclaimers

    Shenzhen Getech Technology Co.,Ltd 11.2 Disclaimers Neither Geeetech nor any of our affiliates warrants the accuracy or completeness of the information, products, or services provided by or through this Manual, which are provided “as is” and without any express or implied warranties of any kind, including warranties of merchant ability, fitness for a particular purpose, or non-infringement of intellectual property.
  • Page 41 Shenzhen Getech Technology Co.,Ltd Shenzhen Getech Technology Co.,Ltd www.geeetech.com...
