Kichler Lighting Decor Link Instruction Manual

54"
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Kichler
®
Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
In
Includes our new
C
CoolTouch
Control System
TM
Lo
Looks permanent, but goes wherever you go!
U.S.
U.S. Patent Pending
Instruction Manual
54" Link
TM
A Kichler
®
Décor
™
ceiling fan
HIGH
EFFICIENCY
DC
MOTOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Decor Link and is the answer not in the manual?

Questions and answers

Related Manuals for Kichler Lighting Decor Link

Summary of Contents for Kichler Lighting Decor Link

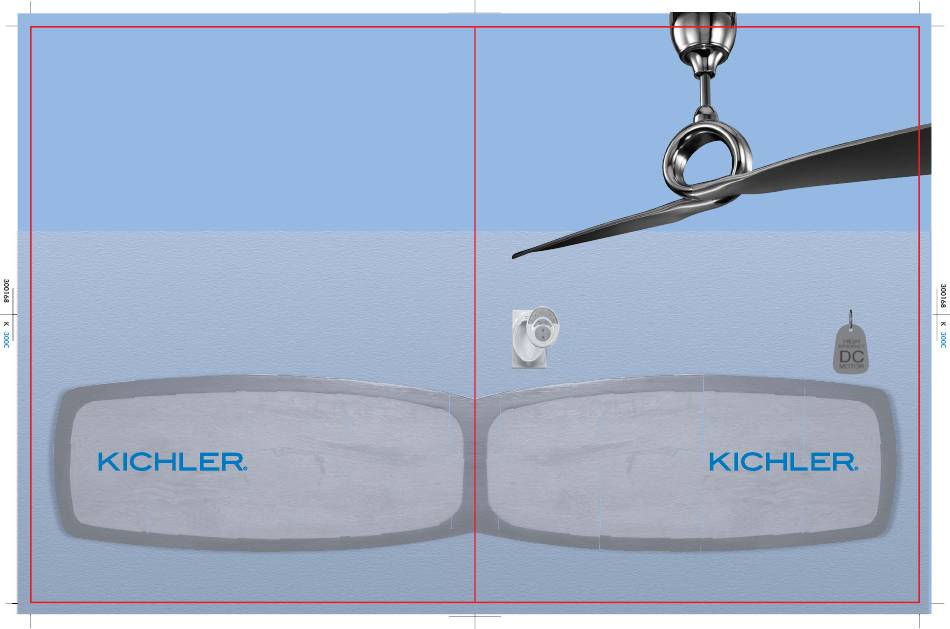

  • Page 1 54” Link A Kichler ® Décor ™ ceiling fan Includes our new HIGH EFFICIENCY CoolTouch Control System Looks permanent, but goes wherever you go! MOTOR U.S. Patent Pending U.S. Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service...

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 3: Tools And Materials Required

    54"Link 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (2) Fan motor assembly CoolTouch™...

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.

  • Page 5: Remove The Mounting Plate

    54"Link 5. REMOVE THE MOUNTING PLATE Mounting plate REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. Remove the mounting plate from the fan motor by removing the nuts. (Fig. 4) Fan motor Fig.

  • Page 6: Electrical Connections

    7. ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock, be sure you have turned off the power at the Outlet box main circuit panel. White ("AC IN N") Follow the steps below to connect the fan to Black ("AC IN L") Green or bare copper (ground) your household wiring.

  • Page 7: Finishing The Installation

    54"Link 8. FINISHING THE INSTALLATION Step 1. Move fan into position over the four mounting studs and secure with the provided Screws nuts. (Fig. 8) Step 2. Raise the motor housing up against the mounting plate, the four supports inside Nuts the housing should be placed against the four studs on mounting plate, twist the housing...

  • Page 8: Attaching The Fan Blades

    9. ATTACHING THE FAN BLADES Step 1. Attach a blade to a blade bracket with the Allen screws (with lock washers) and filat washers and fasten using the Allen wranch provided. (Fig. 10) Place the gasket into blade bracket. Make sure the blade is straight when set on the blade bracket.

  • Page 9: Control System Set-Up

    54"Link 10. CONTROL SYSTEM SET-UP Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: ® Your new Kichler Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System.
  • Page 10 3. Test the transmitter by pushing and releasing Blue Light ANY button briefly. A Blue Light should illuminate under the 3-4 buttons. (Fig. 13) If not, check to make sure the batteries are inserted and seated correctly. Power Up and Programming: 4.
  • Page 11 54"Link Speed Buttons 11. OPERATING INSTRUCTIONS: Figure 15 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed Figure 16...
  • Page 12 NOTE: Please remember your control system is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...
  • Page 13 SENSOR DC CONTROL PAIRING PROCEDURES IMPORTANT: Ceiling fan blades MUST be installed before pairing procedure can begin. Step 1. Program the wall control and/or the handset control separately. Once the following pairing is successfully done, both the wall control and the handset control can be used for the fan.

  • Page 14: Installing The Cooltouch Control System Wall Plate

    54"Link ™ 12. INSTALLING THE COOLTOUCH Outlet box CONTROL SYSTEM WALL PLATE Switch NOTE: All wiring must be in accordance with the Wall plate National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. Select a location to install your CoolTouch™...

  • Page 15: Troubleshooting

    14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
