Summary of Contents for Kichler Lighting Decor Kimberley

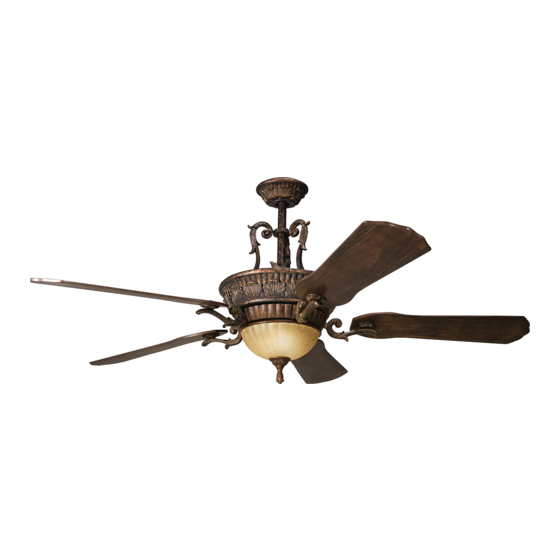

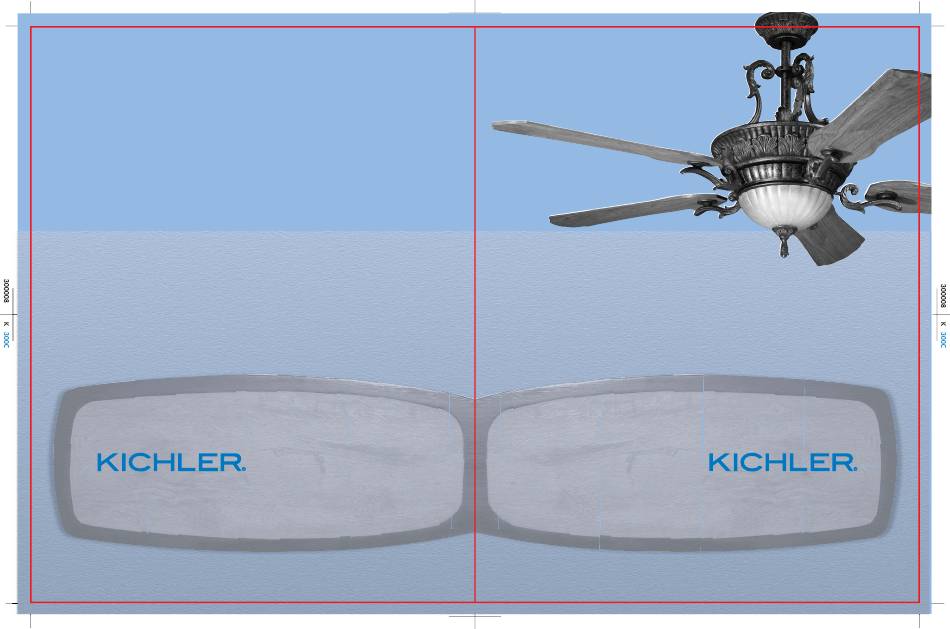

- Page 1 Kimberley ® ™ A Kichler Décor ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Kimberley 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Fan blades (5) b. Canopy & Ceiling mounting bracket c. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Kimberley 5. HANGING THE FAN Ceiling mounting REMEMBER to turn off the power before you bracket begin. Ceiling canopy To properly install your ceiling fan, follow the steps below. Canopy cover Fig. 5 Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover CUL Listed electrial... - Page 6 Step 9. Slip the coupling cover, decorative scroll ring, decorative scroll assembly, canopy cover and canopy onto the downrod. Downrod Canopy Thread the hanger ball onto the downrod, Canopy cover insert the cross pin through the downrod and tighten. Now tighten the set screw. (Fig. 10) Step 10.
-
Page 7: Installation Of Safety Support
Kimberley 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and washers to the ceiling joist next to the Hanger bracket Safety cable mounting bracket but do not tighten. -
Page 8: Finishing The Installation
Step 2. Motor to Receiver Electrical Connections: Outlet box (Fig. 16) Connect the black wire from the fan to the black wire marked "TO MOTOR L" on the receiver. White (neutral) Connect the white wire from the fan to the white Black (hot) wire marked "TO MOTOR N"... -
Page 9: Attaching The Fan Blades
Kimberley 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided. -
Page 10: Installing The Light Kit
11. INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the 3 screws from the mounting plate. Step 2. Raise and hold the light kit close to the mounting plate. -
Page 11: Installing The Batteries
Kimberley 13. INSTALLING THE BATTERIES Remove the battery compartment cover on the back of the CoolTouch™ Transmitter and insert both batteries provided. Make sure the + sign is facing up. Take care during this procedure NOT TO move the frequency dip switches inside this compartment. - Page 12 Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. Warm Weather Operation: Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 24. This allows you to set your air conditioner on a warmer setting without affecting your general comfort.
-
Page 13: Installing The Cooltouch Control System Wall Plate
Kimberley 15. INSTALLING THE COOLTOUCH ™ CONTROL SYSTEM WALL PLATE Outlet box Switch Select a location to install your CoolTouch™ Control System Transmitter. You can replace Wall plate an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the control system using an existing wall switch outlet box. -
Page 14: Troubleshooting
17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
