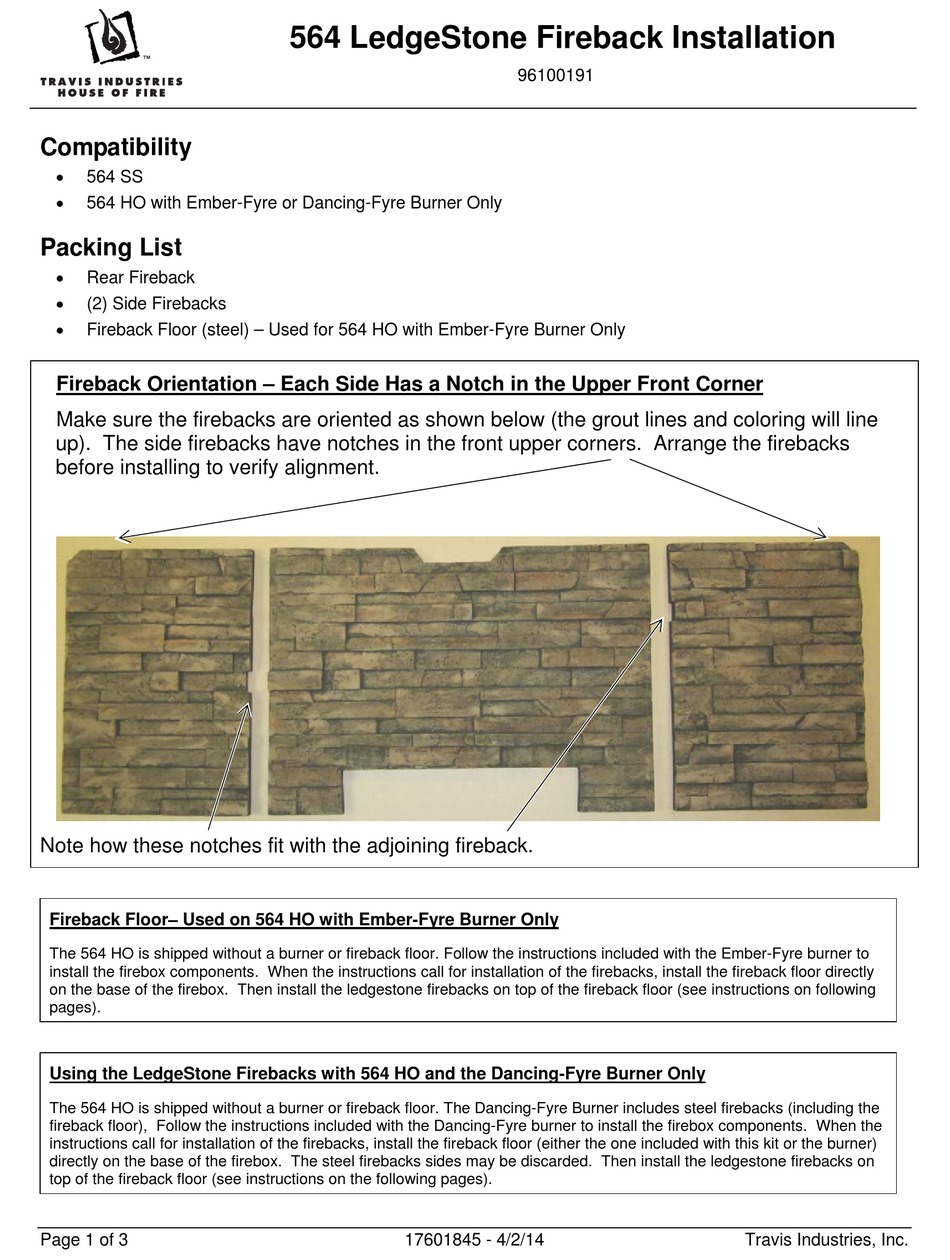

Compatibility
564 SS
564 HO with Ember-Fyre or Dancing-Fyre Burner Only
Packing List
Rear Fireback
(2) Side Firebacks
Fireback Floor (steel) – Used for 564 HO with Ember-Fyre Burner Only
Fireback Orientation – Each Side Has a Notch in the Upper Front Corner
Make sure the firebacks are oriented as shown below (the grout lines and coloring will line
up). The side firebacks have notches in the front upper corners. Arrange the firebacks
before installing to verify alignment.
Note how these notches fit with the adjoining fireback.
Fireback Floor– Used on 564 HO with Ember-Fyre Burner Only
The 564 HO is shipped without a burner or fireback floor. Follow the instructions included with the Ember-Fyre burner to
install the firebox components. When the instructions call for installation of the firebacks, install the fireback floor directly
on the base of the firebox. Then install the ledgestone firebacks on top of the fireback floor (see instructions on following
pages).
Using the LedgeStone Firebacks with 564 HO and the Dancing-Fyre Burner Only
The 564 HO is shipped without a burner or fireback floor. The Dancing-Fyre Burner includes steel firebacks (including the
fireback floor), Follow the instructions included with the Dancing-Fyre burner to install the firebox components. When the
instructions call for installation of the firebacks, install the fireback floor (either the one included with this kit or the burner)
directly on the base of the firebox. The steel firebacks sides may be discarded. Then install the ledgestone firebacks on
top of the fireback floor (see instructions on the following pages).
Page 1 of 3
564 LedgeStone Fireback Installation
17601845 - 4/2/14
96100191
Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries 564 LedgeStone
Summary of Contents for Travis Industries 564 LedgeStone
-
Page 1: Packing List
564 LedgeStone Fireback Installation 96100191 Compatibility 564 SS 564 HO with Ember-Fyre or Dancing-Fyre Burner Only Packing List Rear Fireback (2) Side Firebacks Fireback Floor (steel) – Used for 564 HO with Ember-Fyre Burner Only Fireback Orientation –... - Page 2 564 LedgeStone Fireback Installation 96100191 Installation WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service. SPECIAL INSTRUCTIONS FOR 564 HO – EXHAUST BAFFLE The 564 HO has an exhaust baffle that must be removed before placing the rear fireback. Remove the baffle following the instructions below.
- Page 3 564 LedgeStone Fireback Installation 96100191 Installation (continued) Remove the glass frame and logs (see the installation manual for details). Install the firebacks following the directions below. Remove the clips located on the firebox ceiling near the front (both sides). These clips have keyhole slots that allow removal by Place the rear fireback in place.
